TCCS
TCCS

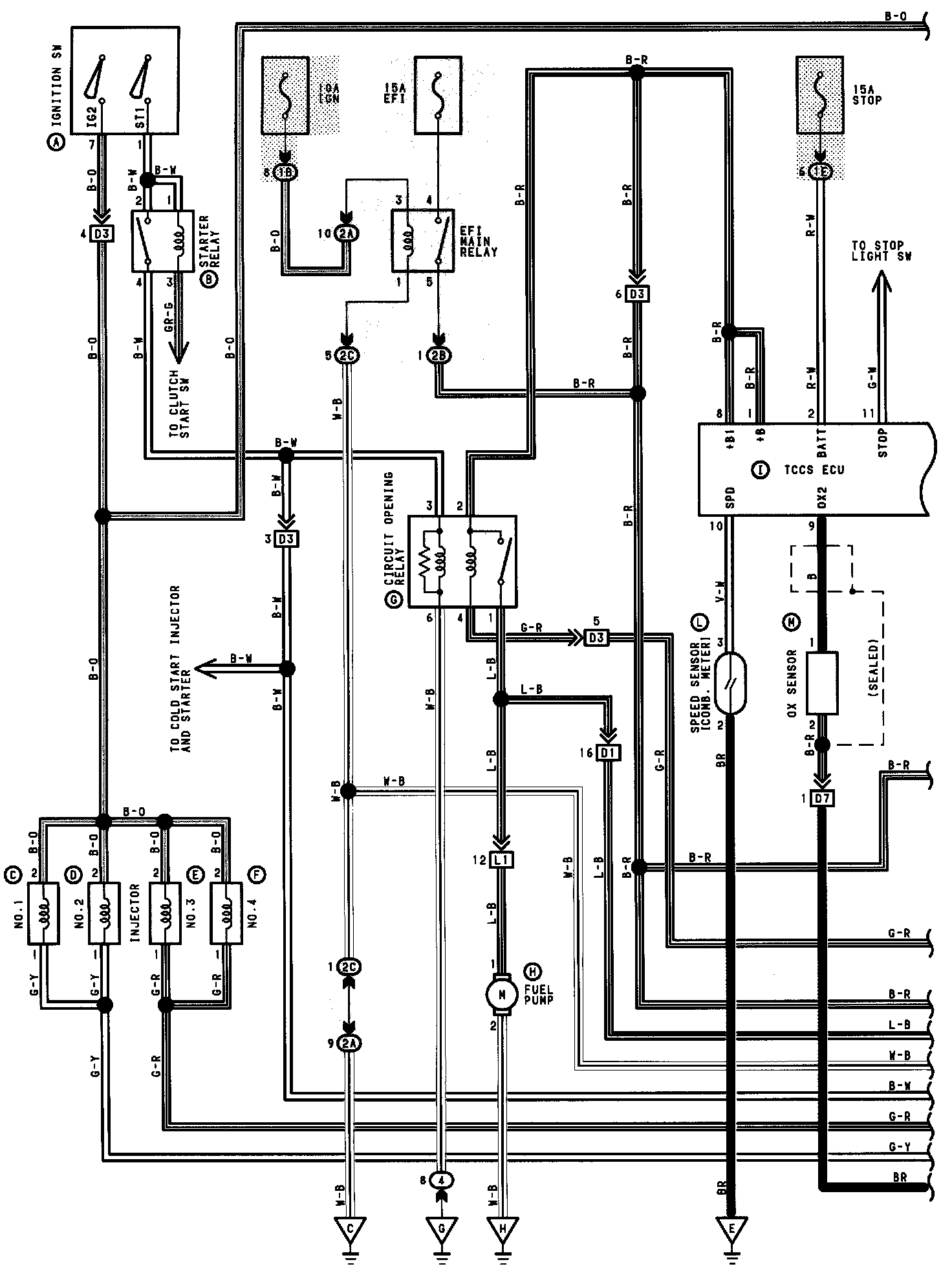

TCCS (Toyota Computer Controlled System) - (Part 1 Of 3):

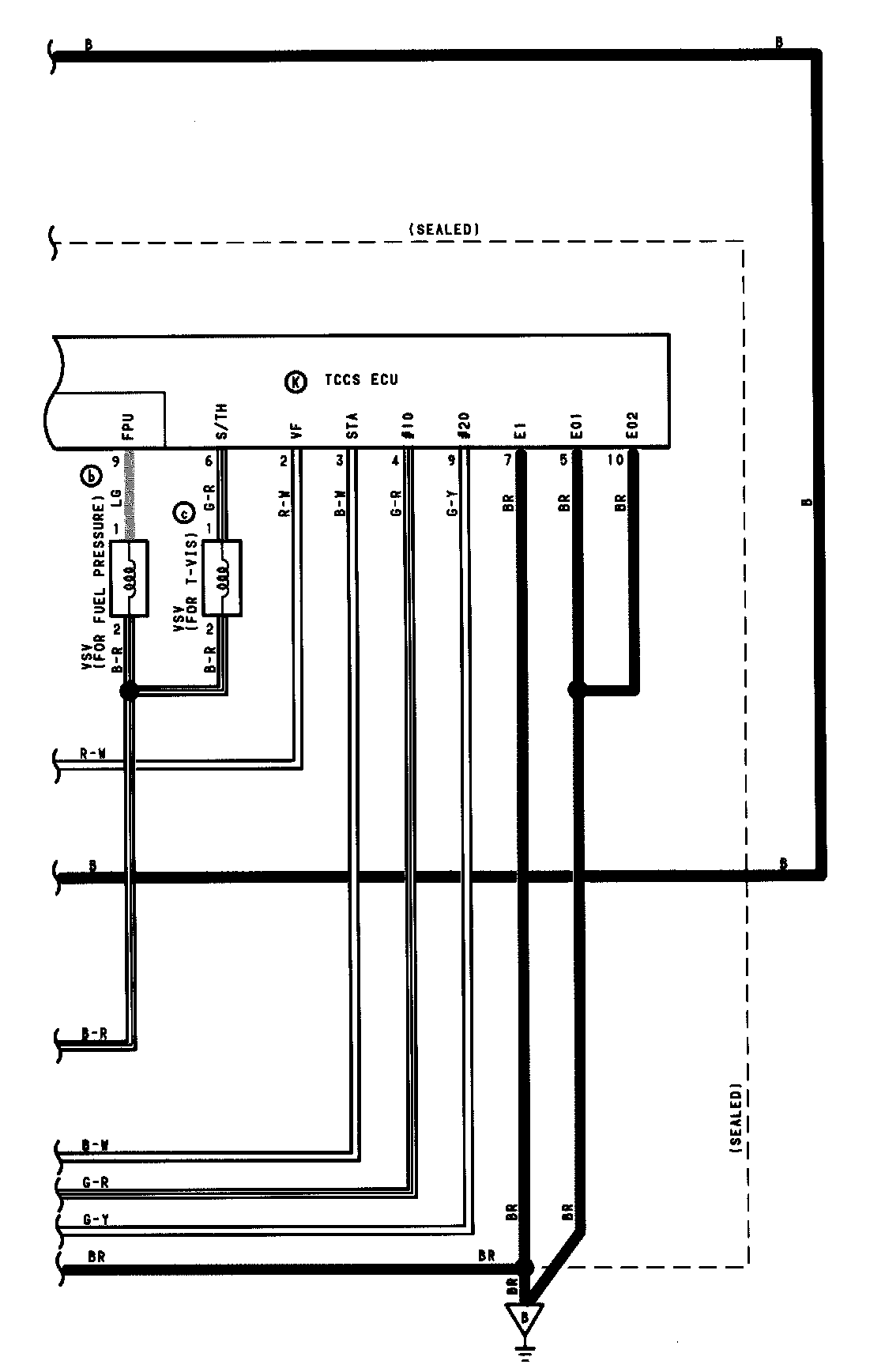

TCCS (Toyota Computer Controlled System) - (Part 2 Of 3):

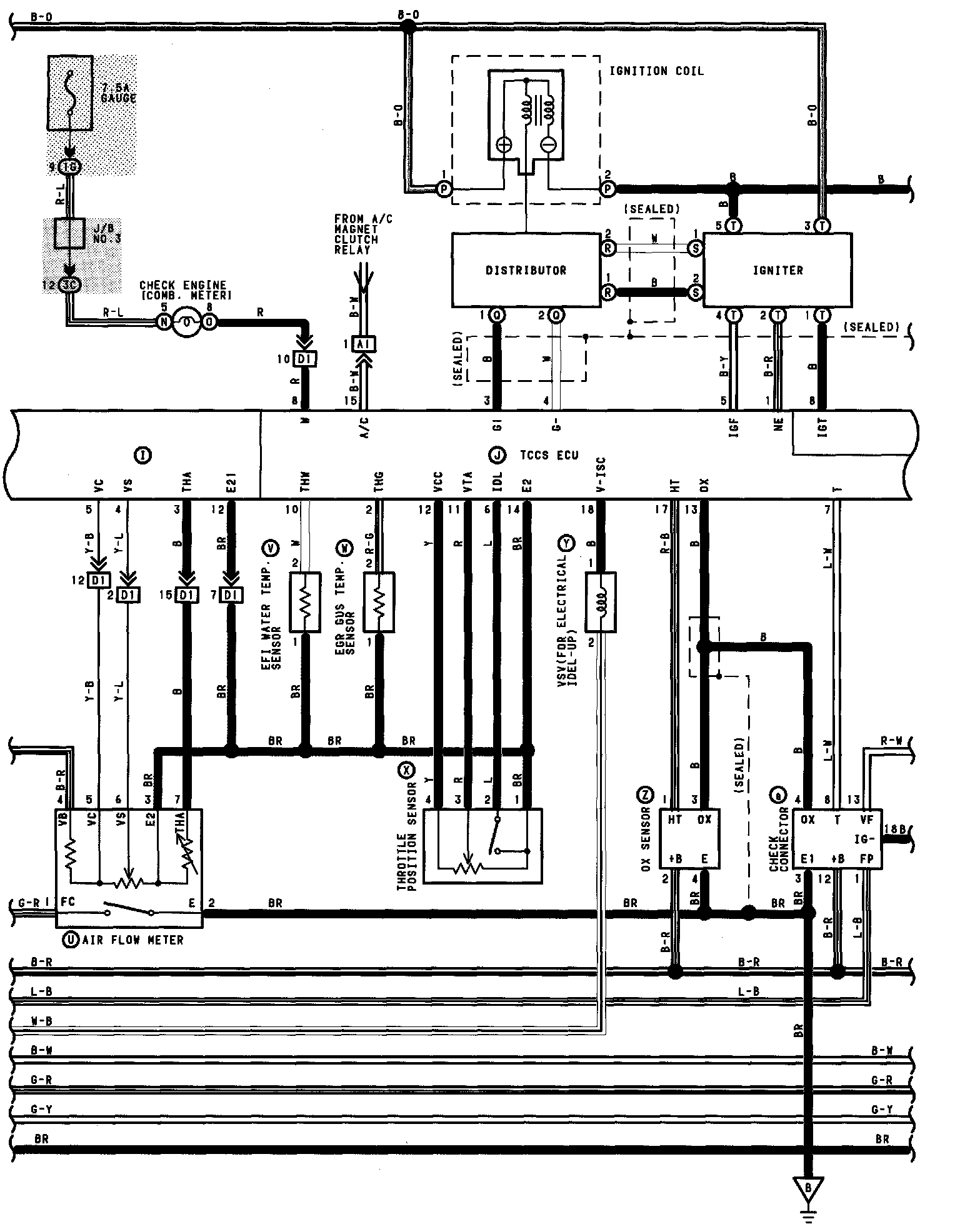

TCCS (Toyota Computer Controlled System) - (Part 3 Of 3):
