Home >> Toyota >> 1989 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> California Vehicles

California Vehicles

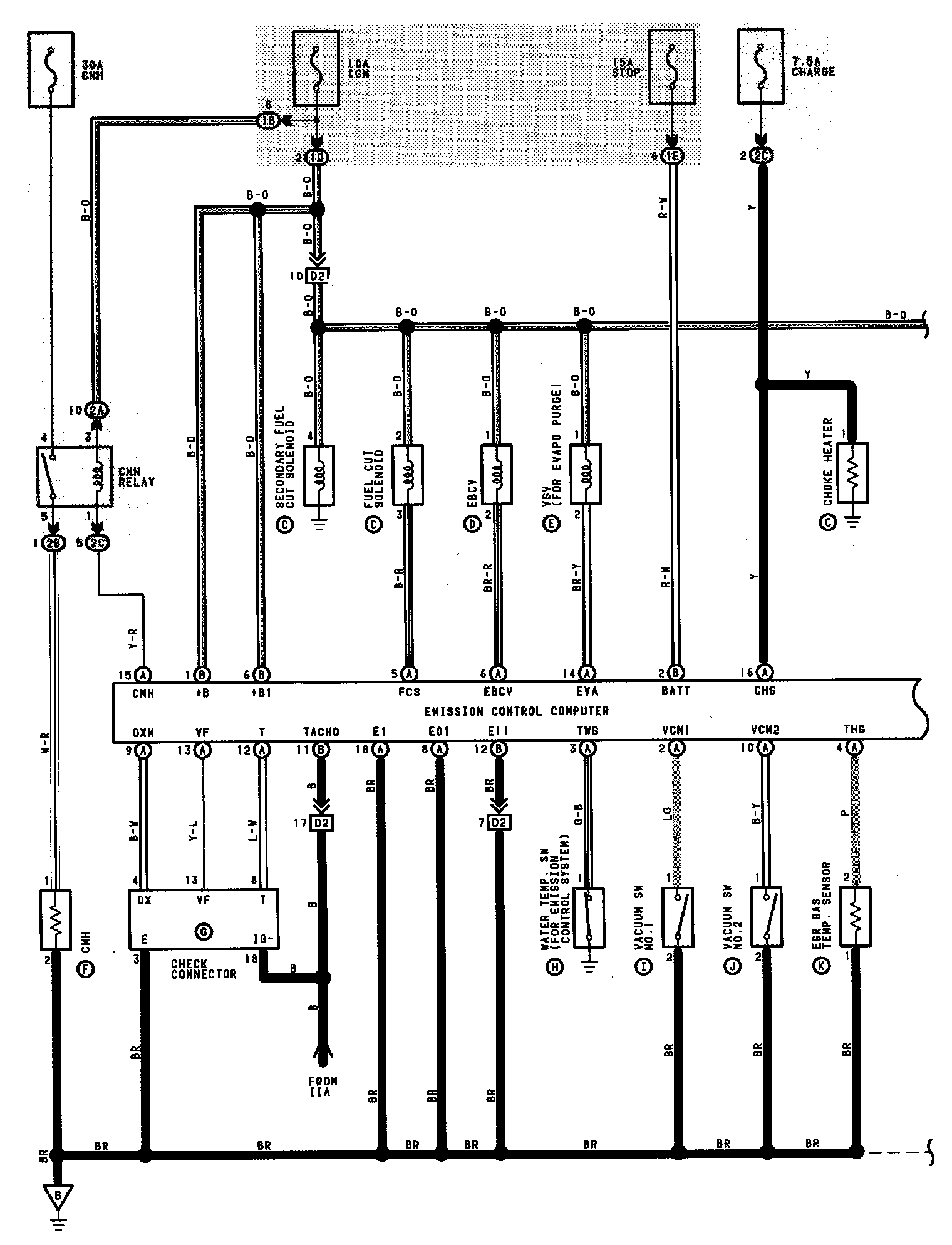

Emission Control (California) (Part 1 Of 2):

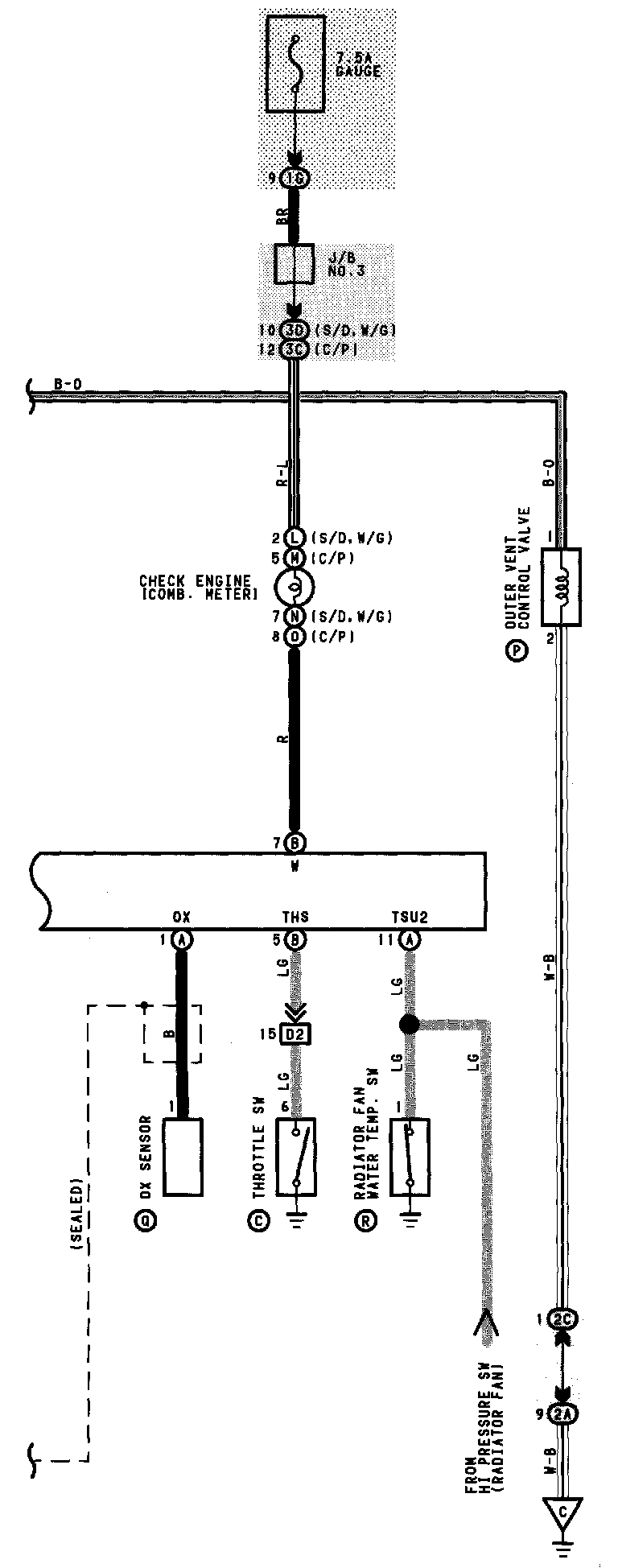

Emission Control (California) (Part 2 Of 2):
