Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
Antitheft and Alarm Systems

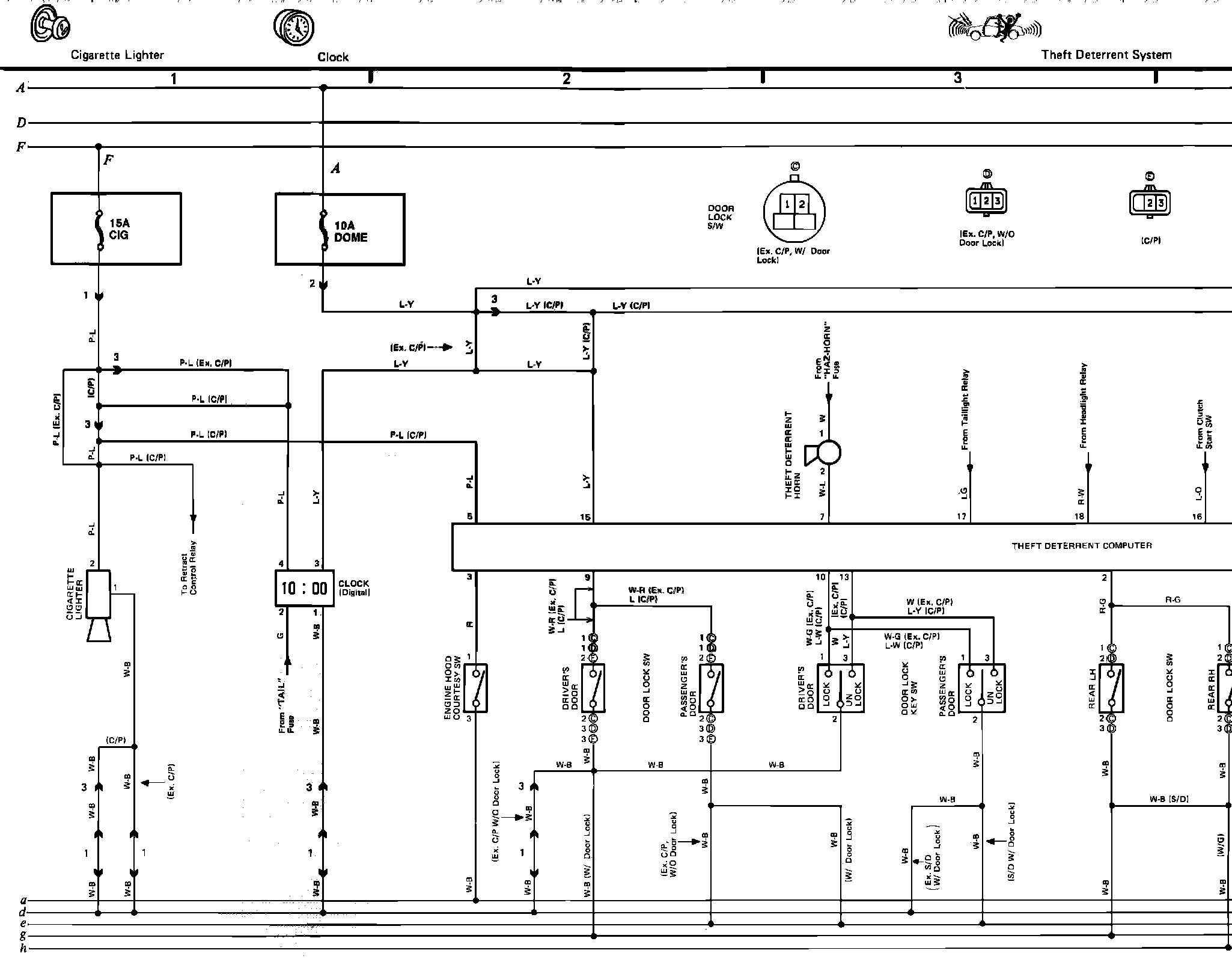

00�a0Cigarette Lighter, Clock, Theft Deterrant, Seat Belt Warning And Interior Lights Wiring Circuit:
Power Source:
