Removal

REMOVAL OF REAR BRAKES

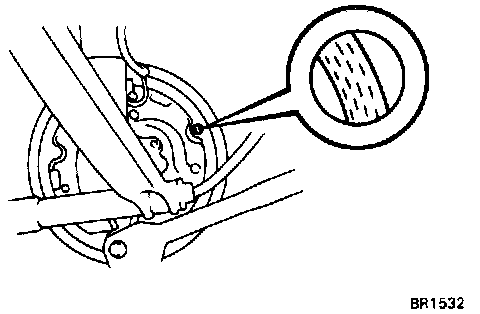

Remove the inspection hole plug, and check the shoe lining the thickness through the hole. If less than minimum, replace the shoes.

Minimum thickness: 1.0 mm (0.039 in.)

Remove rear wheel
Remove brake drum

NOTE: If the brake drum cannot be removed easily, perform the following steps.

- Insert a bent wire or an equivalent through the hole in the brake drum, and hold the automatic adjusting lever away from the adjuster.



- Using a screwdriver, reduce the brake shoe adjustment by turning the adjuster.

NOTE: For additional information see Drum Removal and Installation Notes. Drum Removal and Installation Notes




Using Special Service Tool (SST) #09703-30010, disconnect the return spring.
Using SST #09718-00010 remove the shoe hold-down spring, cups and pin.
Remove front shoe.

NOTE: For additional information see Brake Spring Removal and Installation Notes. Notes, Warnings, and Hints




Disconnect the anchor spring from the front shoe remove the front shoe.
Remove the anchor spring from the rear shoe.



Using SST #09718-00010 remove the shoe hold-down spring, cups and pin.
Using a screwdriver, disconnect the parking cable from the anchor plate.
Using pliers, disconnect the parking brake cable from. the lever and remove the rear shoe together with the adjuster.
Remove rear shoe



Remove the adjusting lever spring.
Remove the adjuster together with the return spring.

For additional information see Notes, Warnings and Hints. Notes, Warnings, and Hints
