Rear

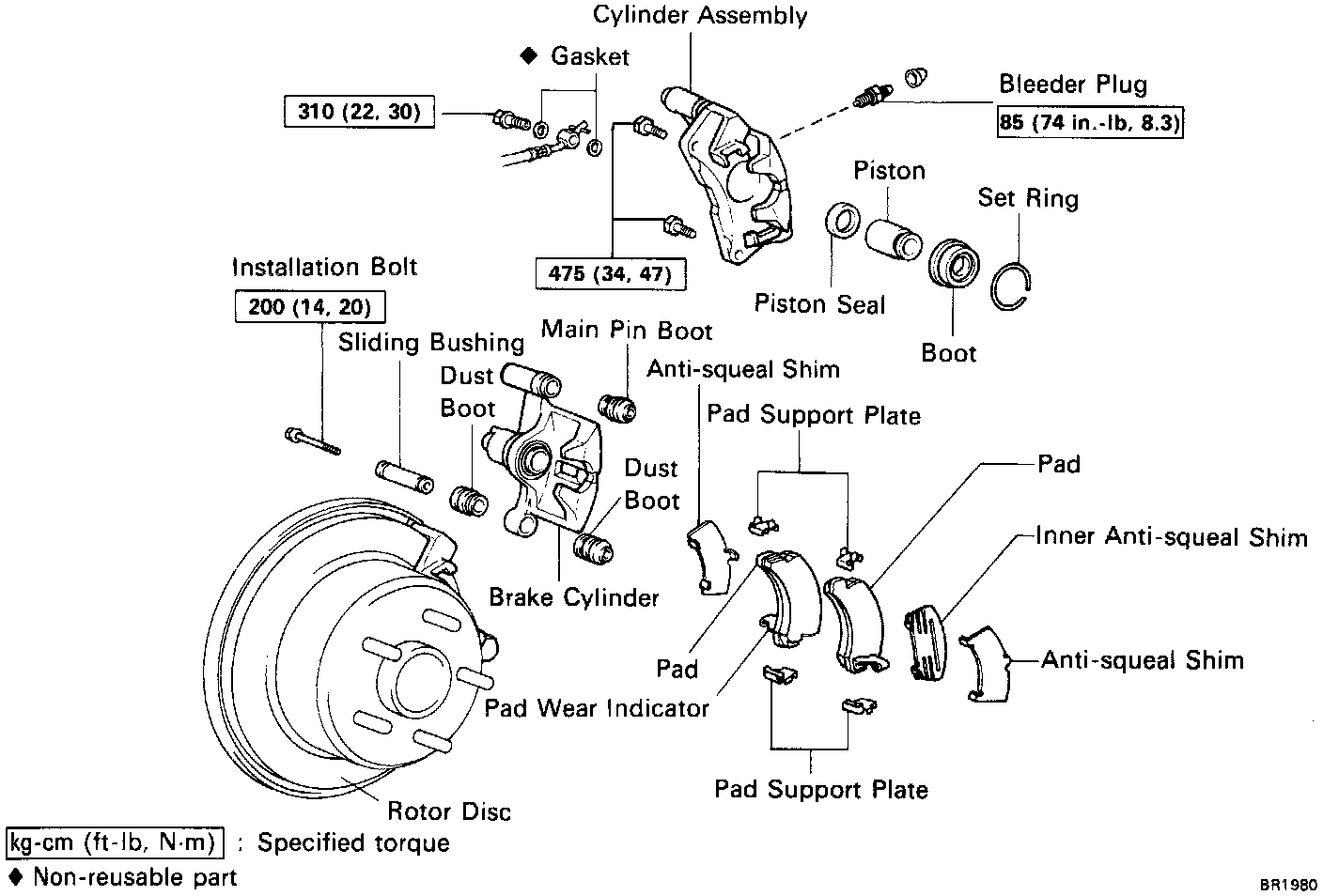

Remove rear wheel

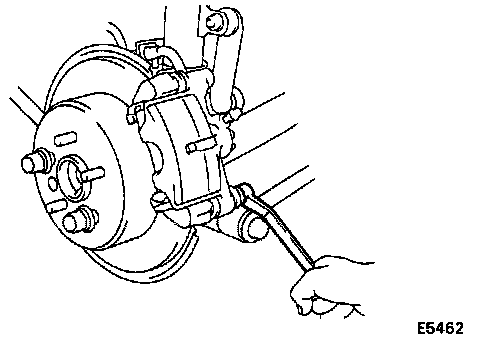

Remove the installation bolt from the torque plate.

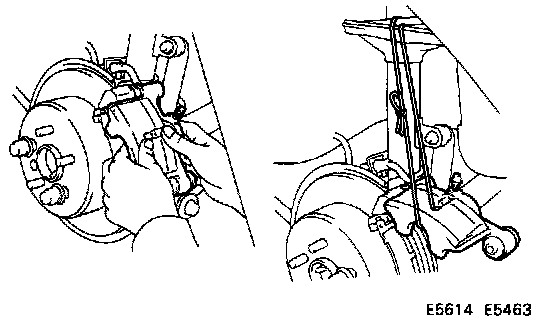

Remove the brake cylinder and suspend it so the hose is not stretched.

NOTE: Do not disconnect the brake hose.

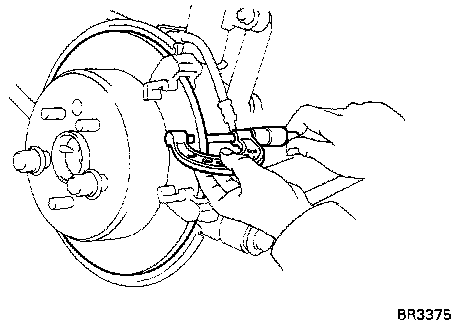

MEASURE ROTOR DISC THICKNESS

Standard thickness: 10.0 mm (0.394 in.)
Minimum thickness: 9.0 mm (0.354 in.)

If the disc is scored or worn, or if thickness is less that minimum, repair or replace the disc.

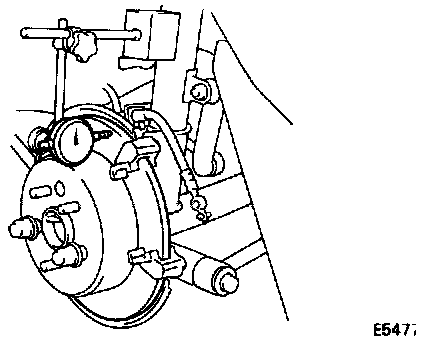

MEASURE ROTOR DISC RUNOUT




Measure the rotor disc runout at 10 mm (0.39 in.) from the outer edge of the rotor disc.

Maximum disc runout: 0.15 mm (0.0059 in.)

If the runout is greater than the maximum, replace the disc.

NOTE: Before measuring the runout, confirm that the hub bearing play is within specification.

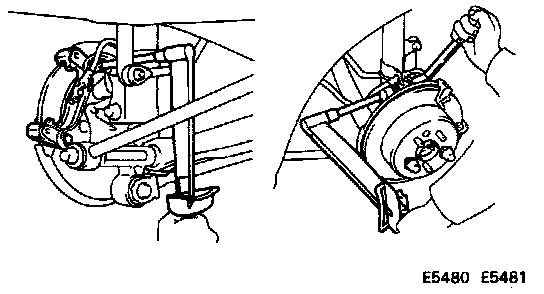

Remove the axle carrier mounting bolt and nut of upper side.
Remove the torque plate.
Remove the hub nuts of the temporarily installed disc and pull off the rotor disc.
Install a new rotor disc and loosely install the hub nuts.

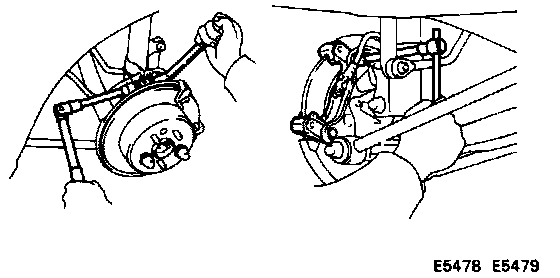

Install the torque plate and tighten the mounting bolt.

Torque: 475 kg-cm (34 ft-lb, 47 N.m)

Insert the brake cylinder carefully so the boot is not wedged.
Install and torque the installation bolt.

Torque: 200 kg-cm (14 ft-lb, 20 N.m)

Install rear wheel
Fill brake fluid
