Accessories - Rivet Nut Tool

SPECIAL SERVICE TOOLS
SS003-9B

December 11, 1998

Title:
RIVET NUT TOOL

Models:
All Models

Introduction
Toyota Motor Sales is making available a tool suitable for installing Rivet Nuts as required by some DIO accessories, such as wind deflectors, roof Racks, and running boards. The tool is available from Owatonna Tool Company, also known as OTC.

Affected Vehicles
^ All models requiring Rivet Nuts for the installation of an accessory.






Part Number Information

OTC PART NUMBER PART NAME NOTE

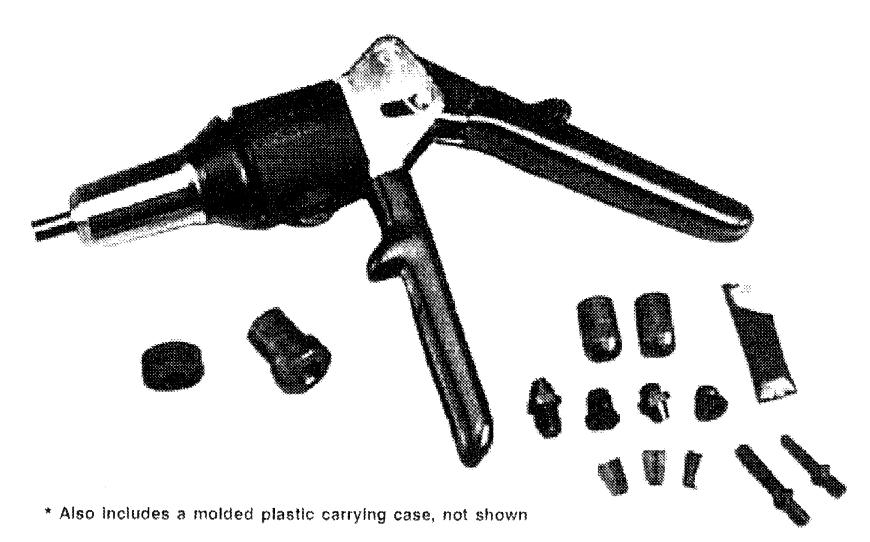

00002-95161 Rivet Nut Tool Mandrels for 5, 6 and 8 mm
Rivet Nuts Included*

Ordering Procedure

Rivet Nut Tool may be ordered by calling the OTC Order Desk at 1-800-933-8335. The introductory price for this tool is $460.00.

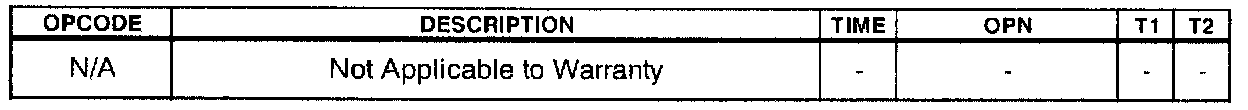

Warranty Information
