Igniton Lock - New Key Cutter Information

89toyota08

PRODUCT GENERAL

REFERENCE INFORMATION

NUMBER 016

DATE 09-01-89

MODEL ALL MODELS
TITLE TOYOTA KEY CODE AND KEY CUTTER INFORMATION


The new key and double tumbler lock system originally introduced on the 1988 model Corolla has been expanded to the following 1990 models:

Models Model Year(s) Code
Corolla AE92 1988-1990 G0001-G2000
Corolla AE95 1990 G0001-G2000
Celica ST18 # 1990 P0001-P2000
Supra MA7 # 1990 X0001-X2000
Cressida MX83 1989-1990 X0001-X2000
Truck VN/VN 1989-1990 W0001-W2000

This new lock system is intended to achieve improved theft deterrence.

Previous notification of this new lock system was published in TSB Volume 9 (Product General Information # 002 & # 022). If you have not already obtained a new key cutter, this change requires Toyota dealers to obtain a new key cutter from Curtis Industries.

Contact your local Curtis representative or call Curtis Industries customer service at (216) 951-2400 for information on this new key cutter:

(1) Gold handle key cutter # 2046
(2) Decoder slot TOY-50
(3) Cam set DC-50
(4) Carriage TOY-50
(5) Key blanks -- TR-40 (Curtis Industries Key Blank)
(6) New Key Code Book # 20481

NOTE: Curtis Industries Master Kit # 20417 contains items (1) - (4) on the above list plus one code book.

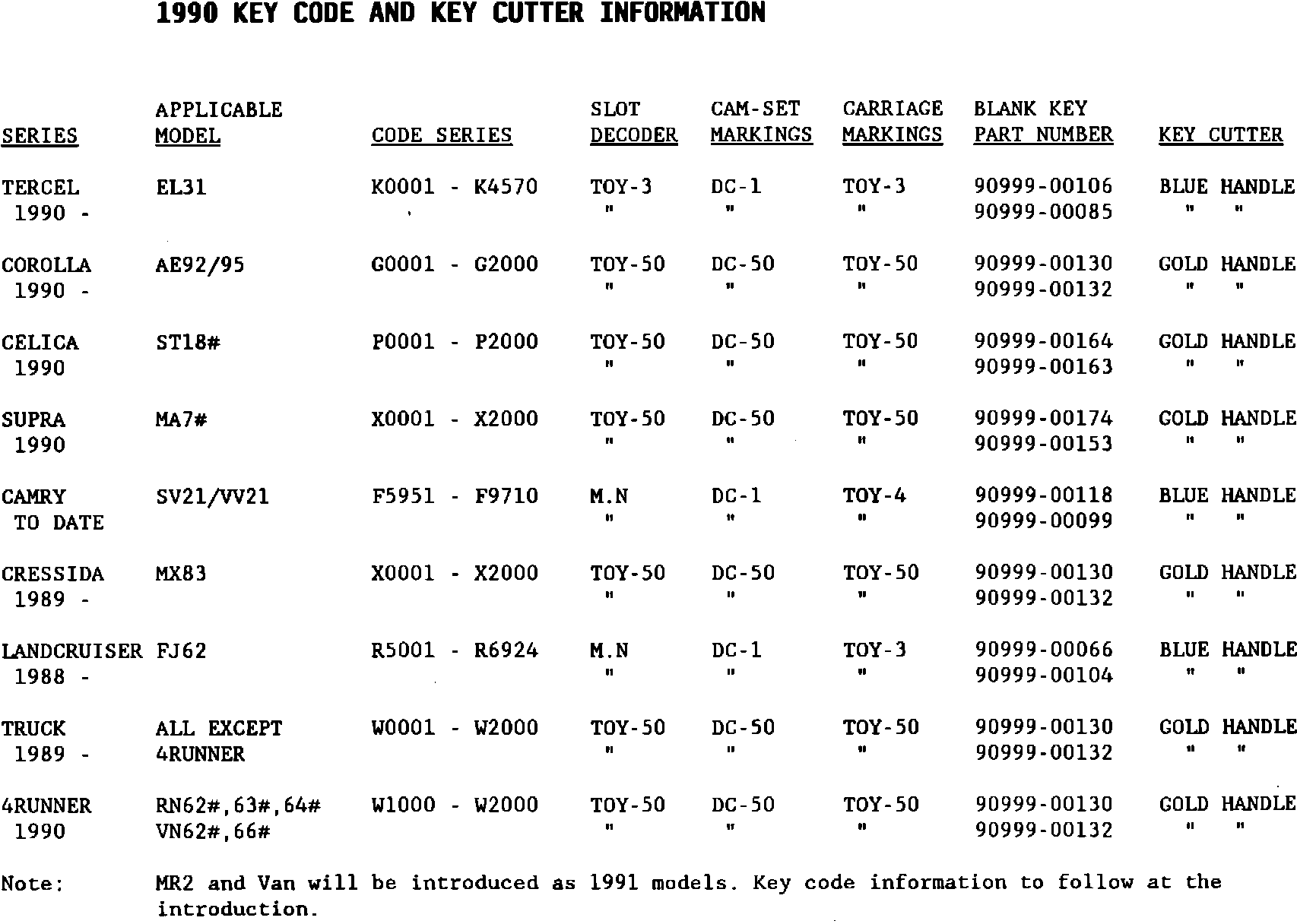

For detailed 1990 model application and Toyota key blank part number information, please refer to the attached list:
