FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Service Specifications
Service Specifications

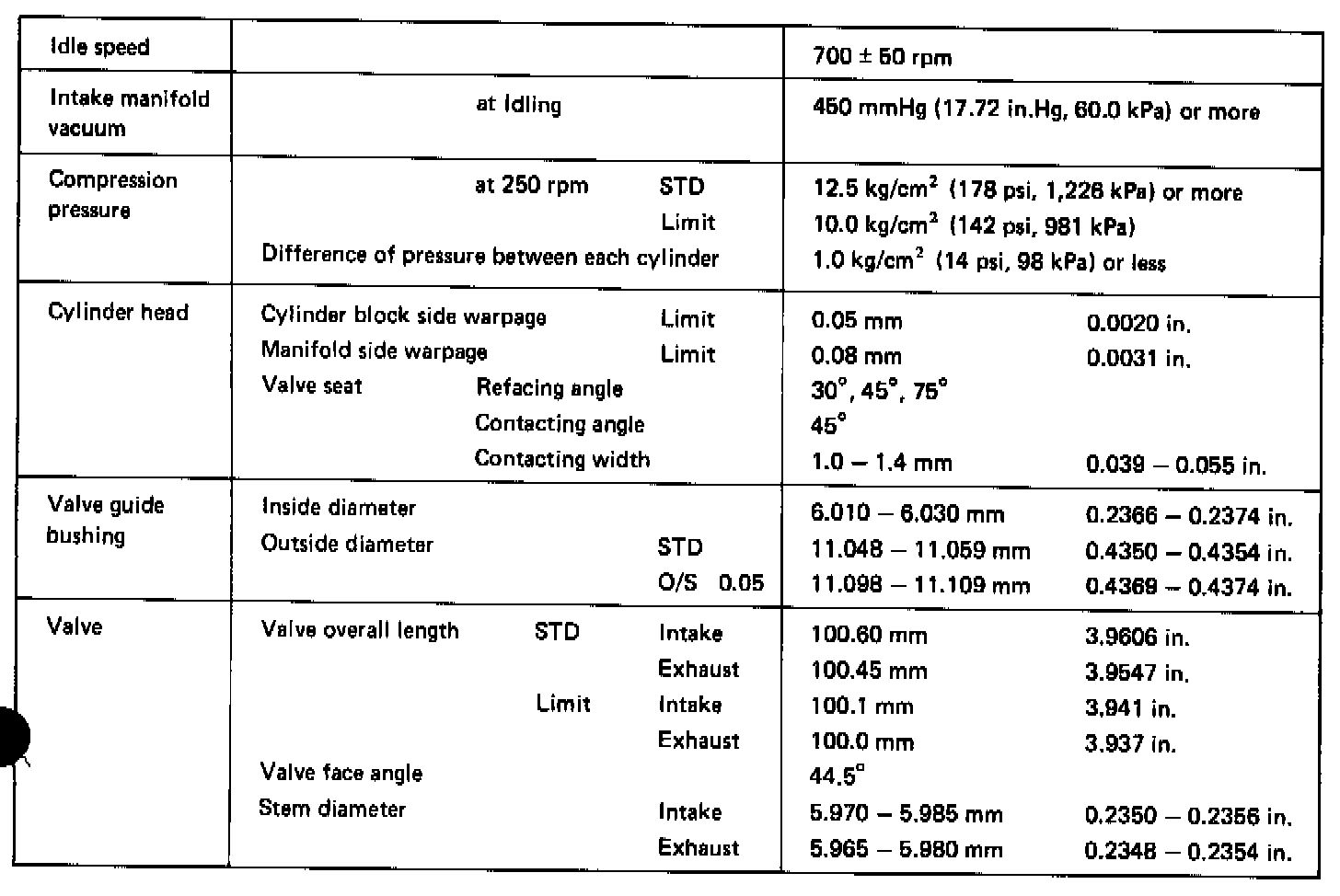

3S-FE Mechanical Specifications (1 Of 3):

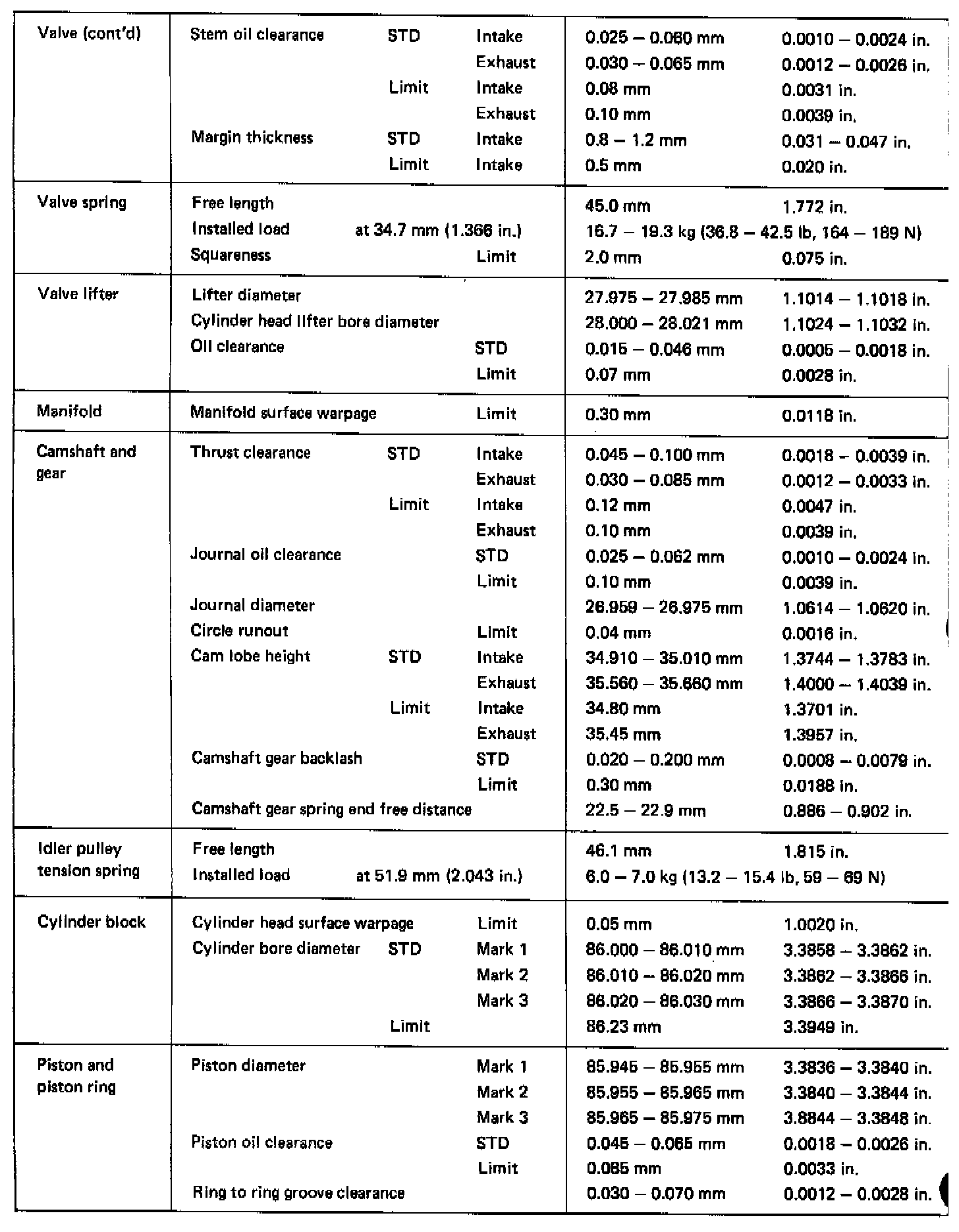

3S-FE Mechanical Specifications (2 Of 3):

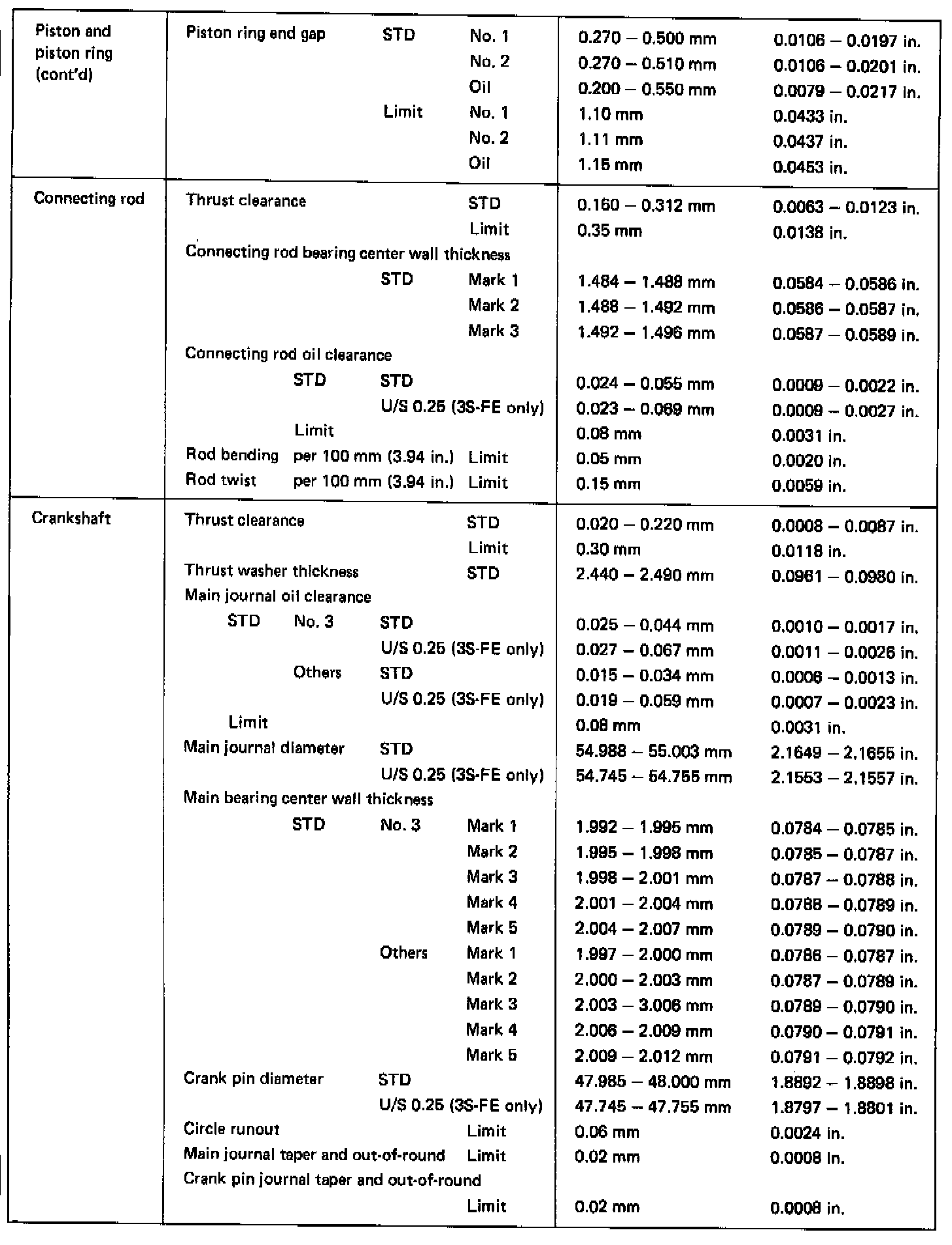

3S-FE Mechanical Specifications (3 Of 3):
Mechanical Specifications
