Air Conditioning Amplifier

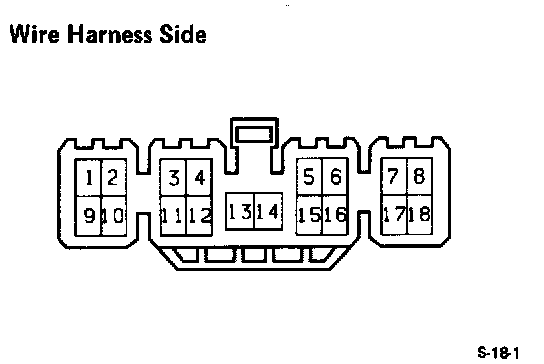

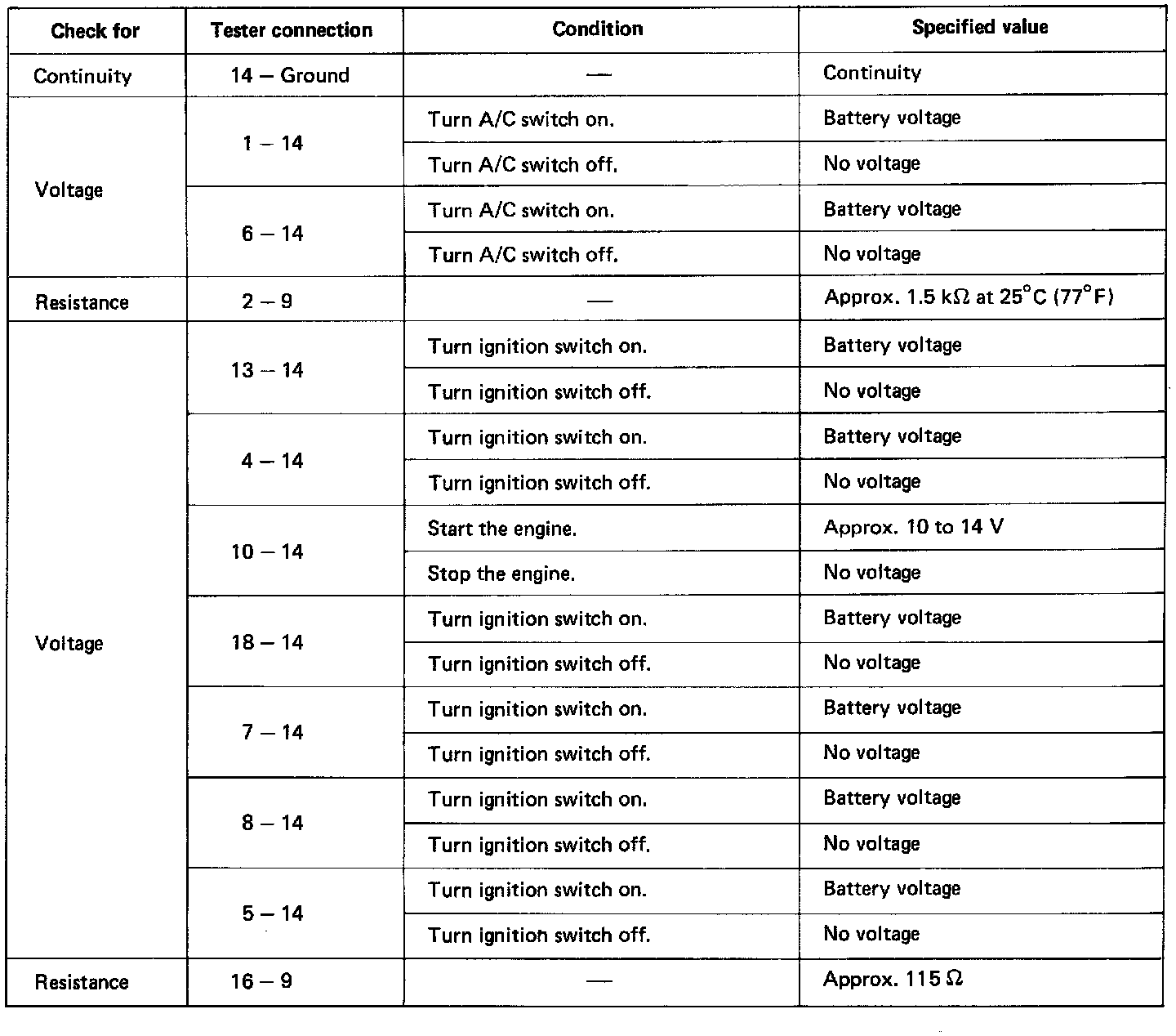

Disconnect the amplifier and inspect the connector on the wire harness side as shown in the chart below.

Test conditions:
1. Ignition switch: ON
2. Temperature control lever: MAX COOL
3. Blower switch: HI

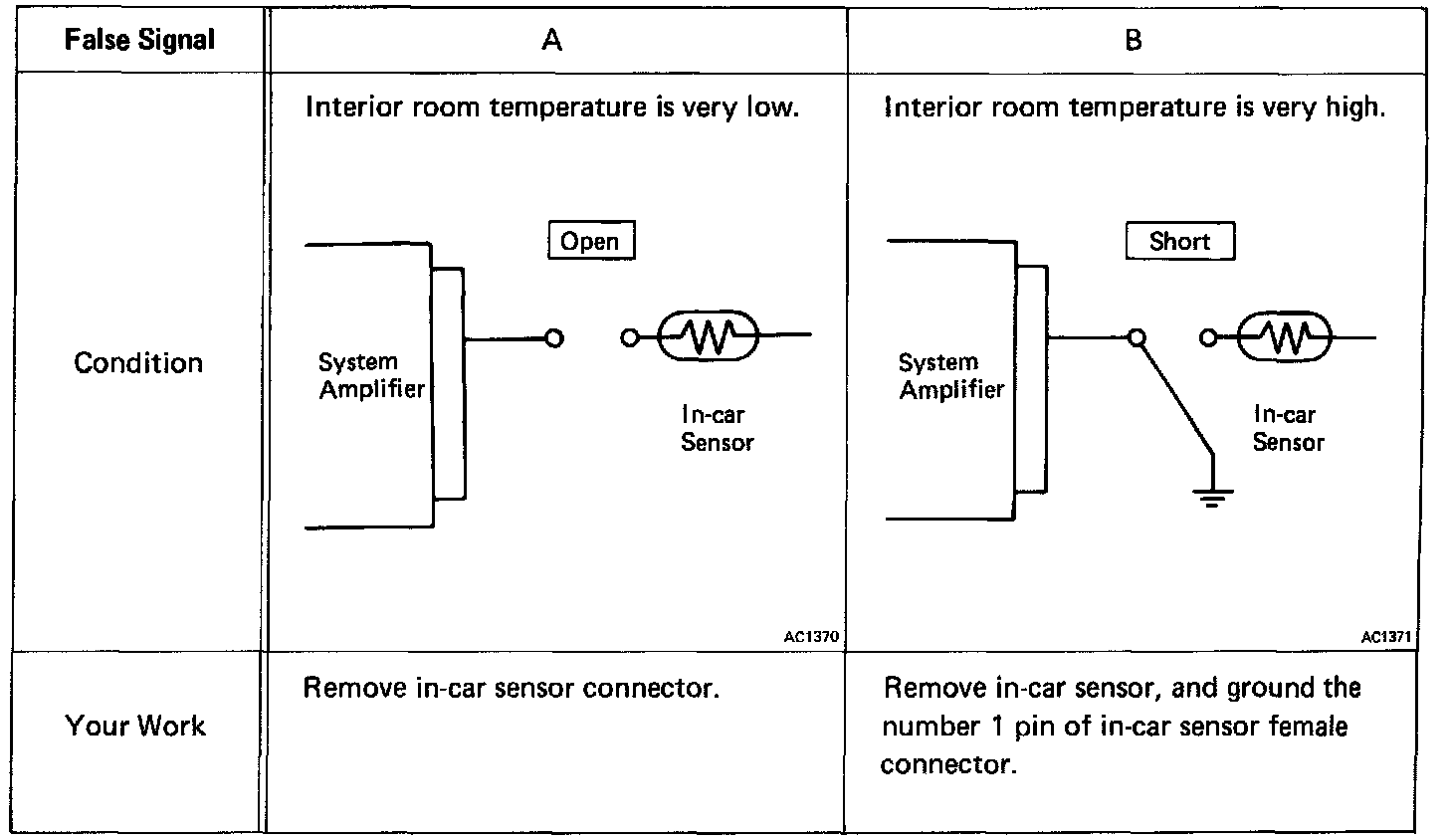

4. False Signal Input to System Amplifier

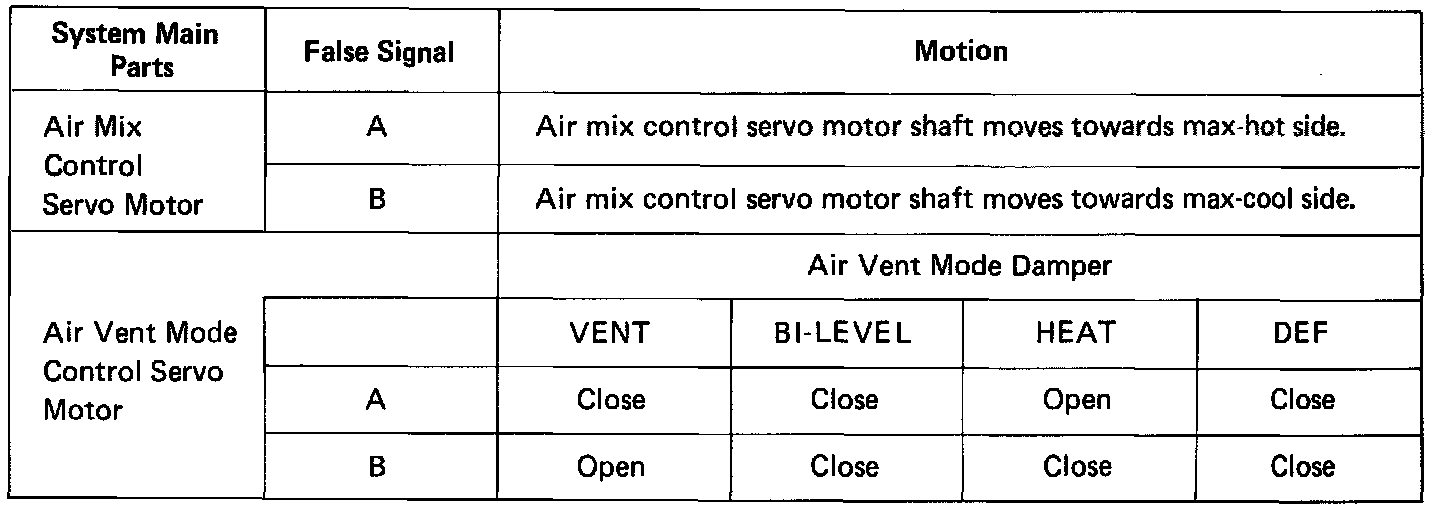

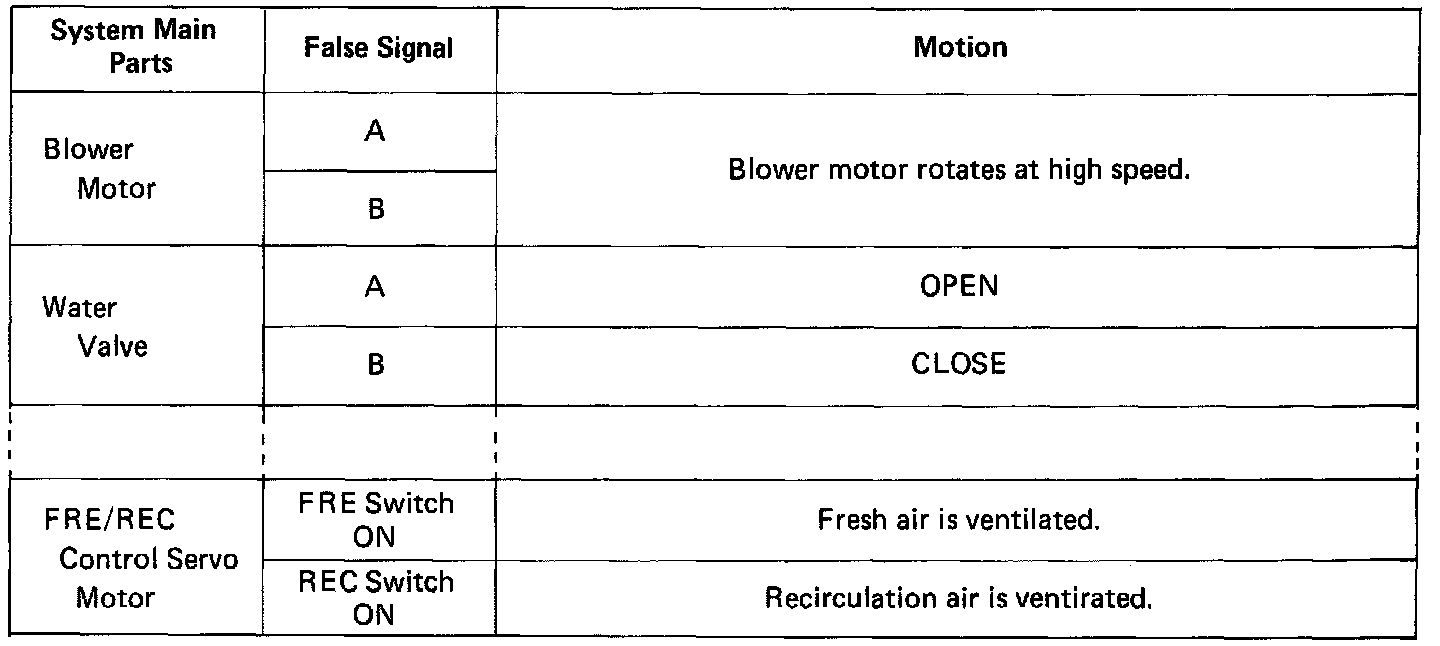

5. System Operation when Input False Signal

Condition: Setting Temperature is at 25°C (77°F)

If necessary, replace the system amplifier.
