Compressor Speed Sensor: Testing and Inspection

Testing Compressor Revolution Sensor:

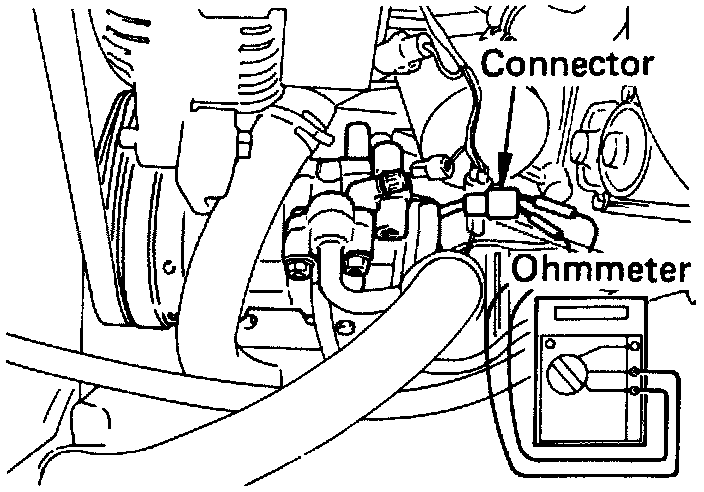

Using an ohmmeter, measure the resistance between two terminals of the sensor.
Standard resistance: 100 - 130 Ohms at 2O°C (68°F)
If resistance is not as specified, replace the revolution detecting sensor.
