With S51 Transaxle/2WD/SV Series
>>
S51 Transmission
>>
Exploded Views
Exploded Views

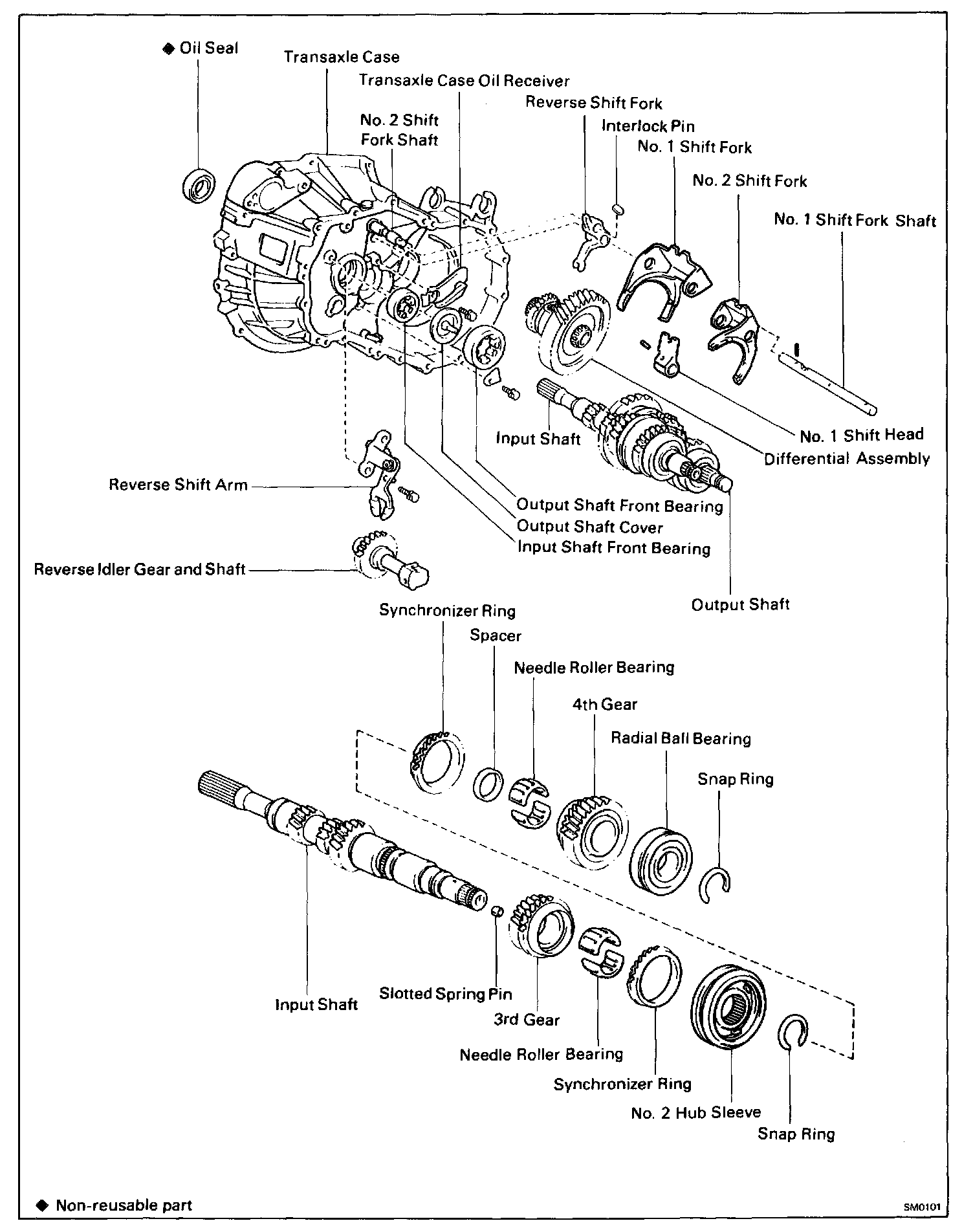

Components - Part 1 Of 3:

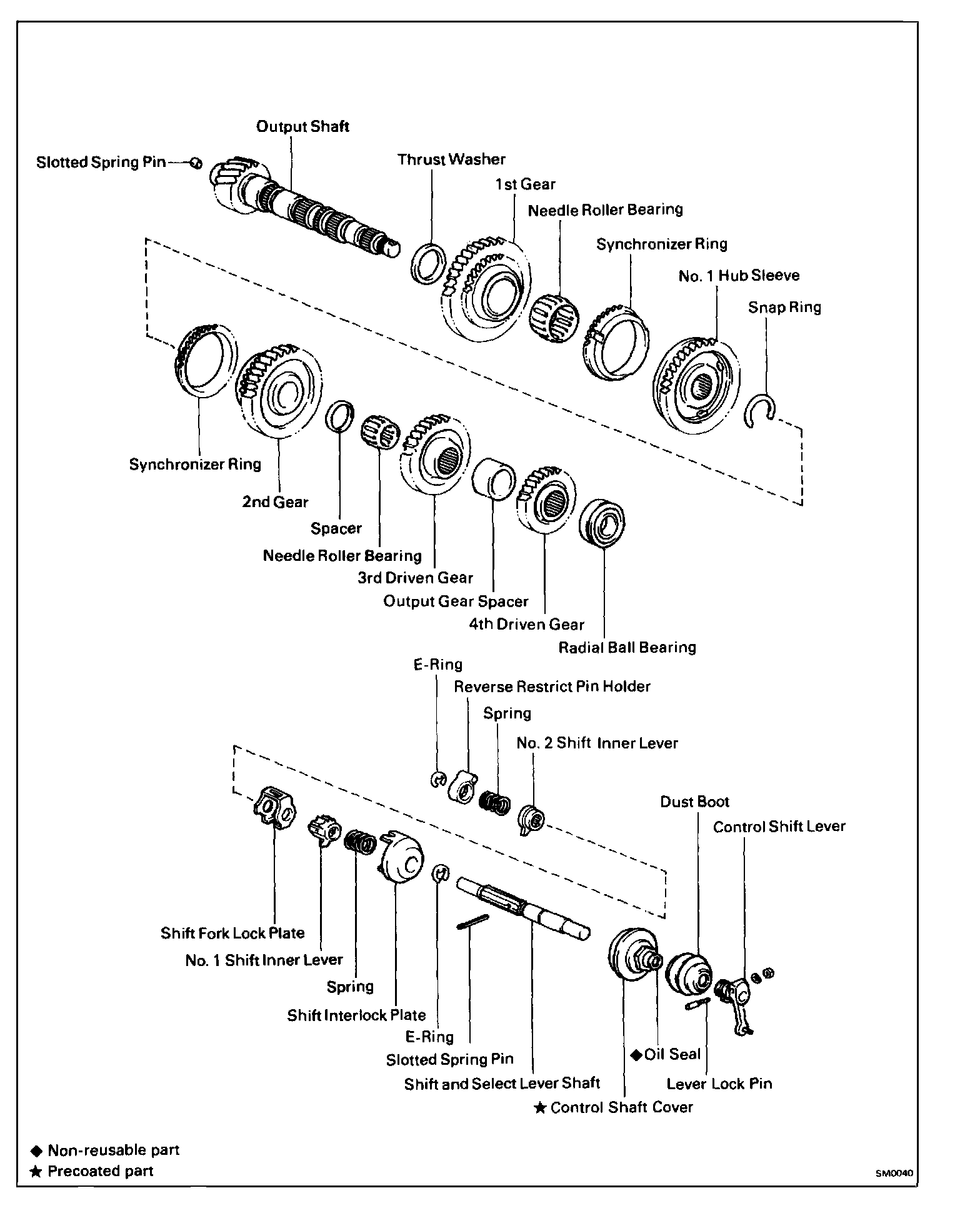

Components - Part 2 Of 3:

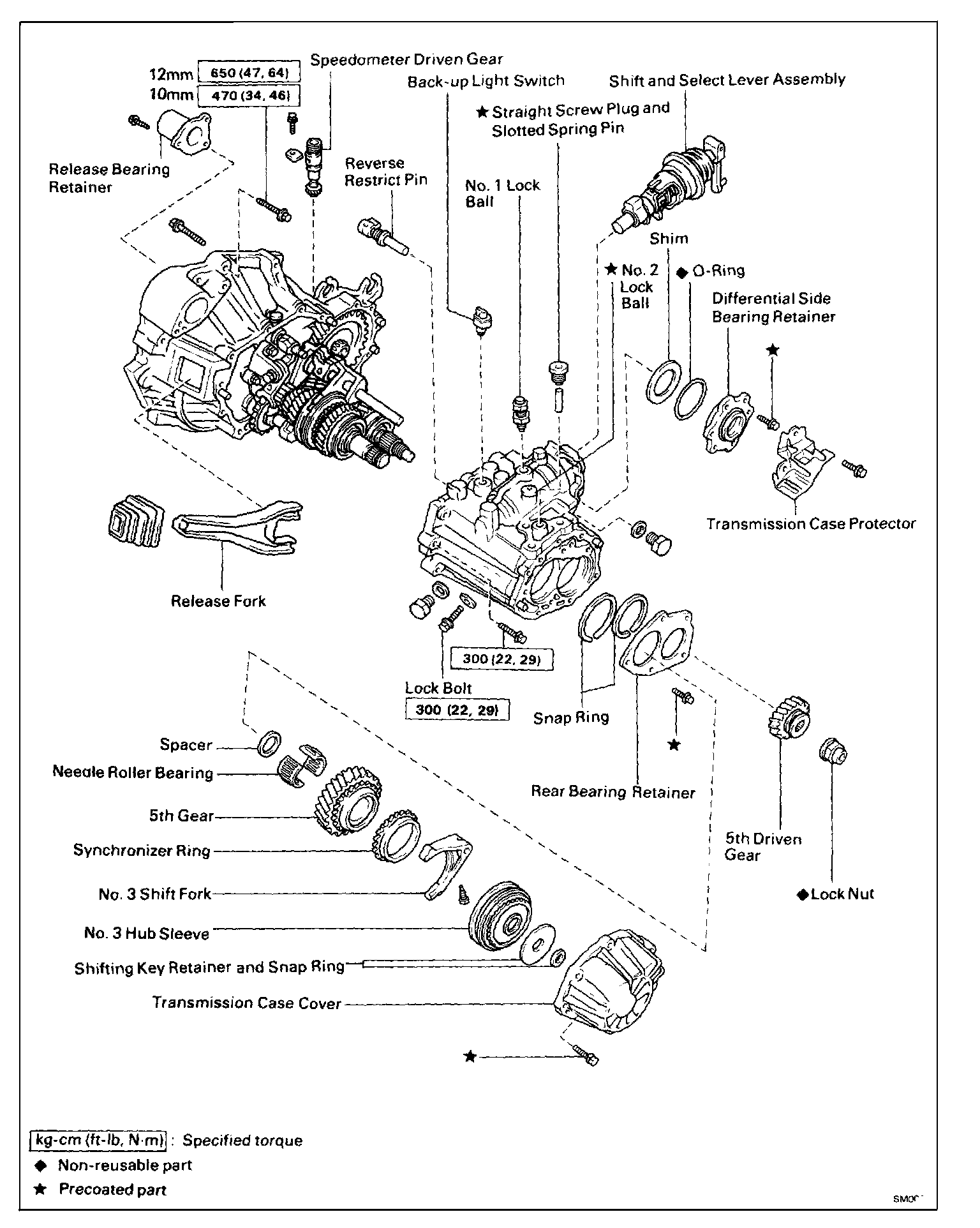

Components - Part 3 Of 3:
