First and Reverse Brake

COMPONENTS

INSPECTION OF FIRST AND REVERSE BRAKE COMPONENT




INSPECT DISCS, PLATES AND FLANGES
Check if the sliding surfaces of the discs, plates and flanges are worn or burnt. If necessary, replace them.

NOTE:

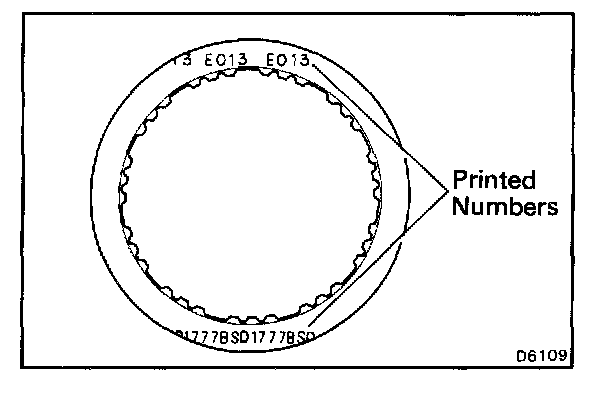

- If the lining of the disc is exfoliated or discolored, or even a part of the printed numbers are defaced, replace all discs.
- Before assembly new discs, soak them in ATF for at least fifteen minutes.
