Transmission Speed Sensor: Service and Repair

REMOVAL OF SPEED SENSOR

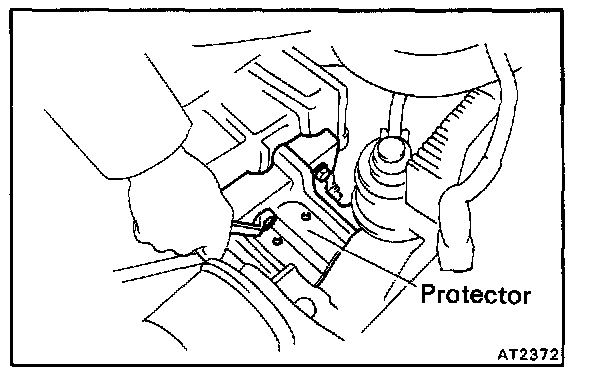

1. REMOVE TRANSAXLE CASE PROTECTOR




2. DISCONNECT SPEED SENSOR CONNECTOR

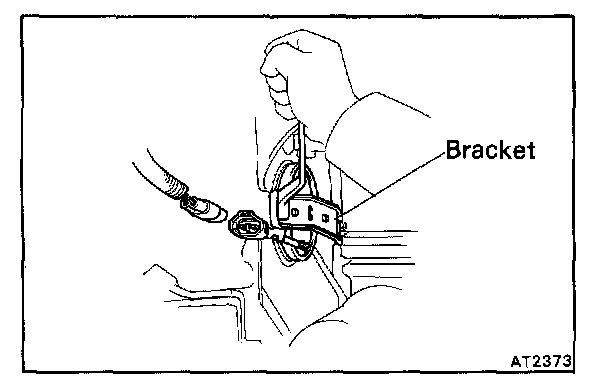

3. REMOVE BRACKET
4. REMOVE SPEED SENSOR AND O-RING

INSPECTION OF SPEED SENSOR




INSPECT SPEED SENSOR

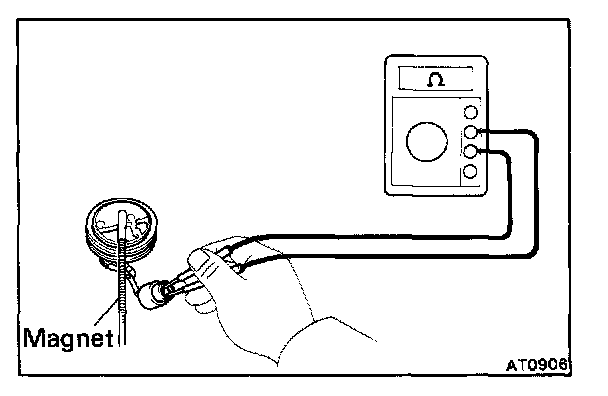

Connect an ohmmeter to the speed sensor and check that the meter deflects when the sensor is repeatedly brought close to a magnet and removed from it.

INSTALLATION OF SPEED SENSOR




1. INSTALL SPEED SENSOR AND O-RING

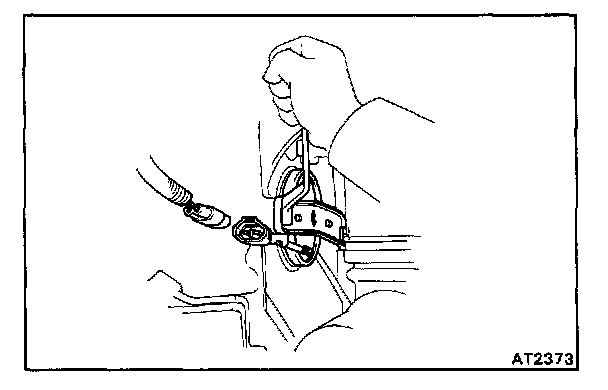

2. INSTALL BRACKET
Torque: 130 kg.cm. (9 ft.lb., 13 N.m)

3. CONNECT SPEED SENSOR CONNECTOR




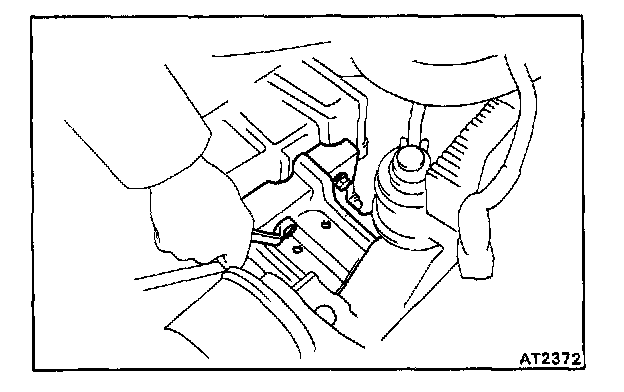

4. INSTALL TRANSAXLE CASE PROTECTOR
