Home >> Toyota >> 1989 >> Camry Wagon L4-2.0L (3S-FE) >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Idle Speed >> Specifications >> Idle Speed

Idle Speed

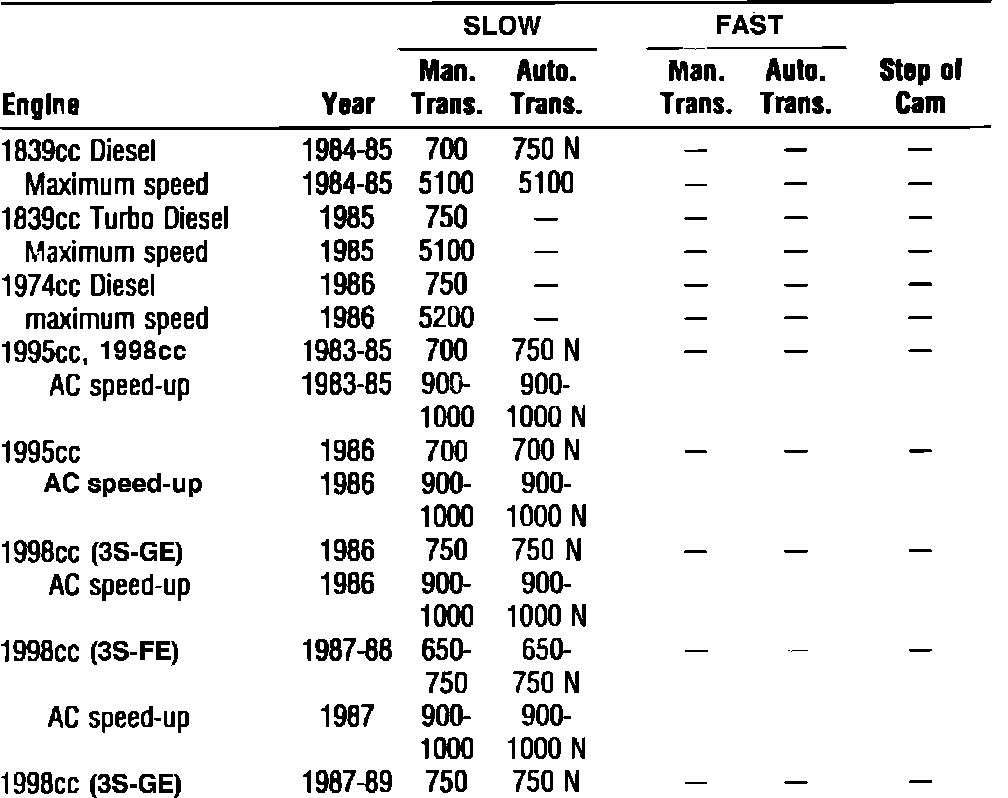

Fig. 7 Idle Speed W/O Computer Control Specifications:
