Preliminary Check

1. CHECK FLUID LEVEL

NOTE: The vehicle must have been driven so that the engine and transmission are at normal operating temperature. (fluid temperature: 158 - 176 °F or 70 - 80 °C)

a. Park the vehicle on a level surface, set the parking brake.
b. With the engine idling, shift the selector into each gear from P range to L range and return to P range.

NOTE: Depress the brake pedal.

c. Pull out the transmission dipstick and wipe it clean.
d. Push it back fully into the tube.

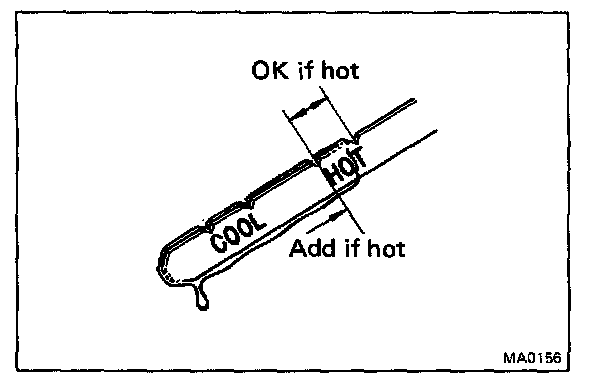

e. Pull it out and check that the fluid level is in the HOT range. If the level is at the low side of the hot range, add fluid.
Fluid type: ATF DEXRON (R) II

CAUTION: Do not overfill.




2. CHECK FLUID CONDITION
If the fluid smells burnt or is black, replace it.




3. REPLACE ATF

CAUTION: Do not overfill.

a. Remove the drain plug and drain the fluid.
b. Reinstall the drain plug securely.
c. With the engine OFF, and new fluid through the dip stick tube.
SST 09043-38100




Fluid: ATF DEXRON(R) II

Capacity:
A140E 5.3 liters (5.6 US qts, 4.7 Imp. qts)
A140L 5.7 liters (6.0 US qts, 5.0 Imp. qts)

Drain and refill (Reference): A140E, A140L 2.5 liters (2.6 US qts, 2.2 Imp. qts)

d. Start the engine and shift the selector into all positions from P through L and then shift into P.
e. With the engine idling, check the fluid level. Add fluid up to the "COOL" level on the dipstick.




f. Check the fluid level with the normal fluid temperature (158 - 176 °F or 70 - 80 °C) and add as necessary.

CAUTION: Do not overfill.




4. INSPECT AND ADJUST THROTTLE CABLE
a. Depress the accelerator pedal all the way and check that the throttle valve opens fully.

NOTE: If the valve does not open fully, adjust the accelerator link.

b. Fully depress the accelerator pedal.
c. Loosen the adjustment nuts.

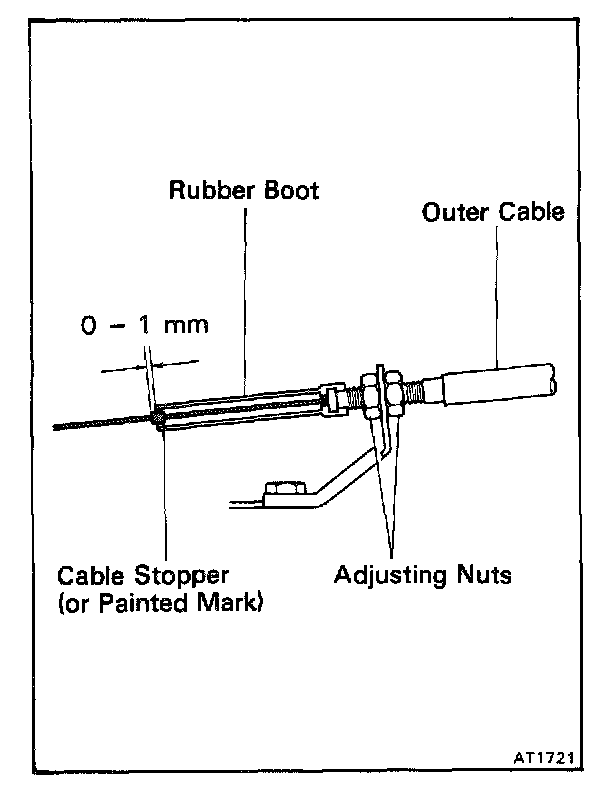

d. Adjust the outer cable so that the distance between the end of the boot and stopper on the cable is the standard.

Standard boot and cable stopper distance: 0 - 1 mm (0 - 0.04 in.)

e. Tighten the adjusting nuts.
f. Recheck the adjustments.




5. INSPECT AND ADJUST SHIFT CABLE
When shifting the shift lever from the N position to other positions, check that the lever can be shifted smoothly and accurately to each position and that the position indicator correctly indicates the position.
If the indicator is not aligned with the correct position, carry out the following adjustment procedures.

a. Loosen the swivel nut on manual shift lever.
b. Push the manual lever fully toward the right side of the vehicle.




c. Return the lever two notches to NEUTRAL position.
d. Set the shift lever to N.
e. While holding the lever lightly toward the R range side, tighten the swivel nut.

6. ADJUST NEUTRAL START SWITCH
If the engine will start with the shift selector in any range other than N or P range, adjustment is required.

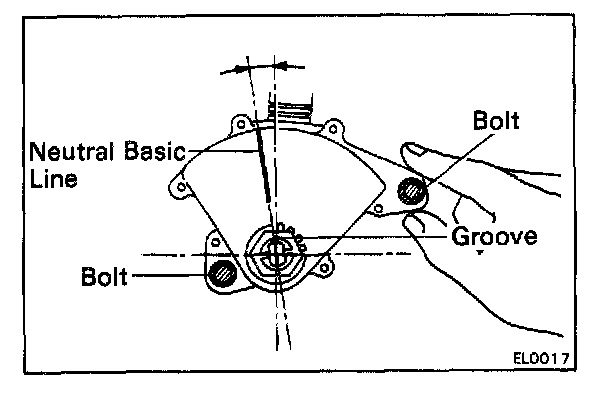

a. Loosen the neutral start switch bolts and set the shift selector to the N range.
b. Align the groove and neutral basic line.
c. Hold in position and tighten the bolts.
Torque: 55 kg.cm. (48 in.lb, 5.4 N.m)

7. INSPECT IDLE SPEED (N RANGE)

Idle speed: 700 rpm
