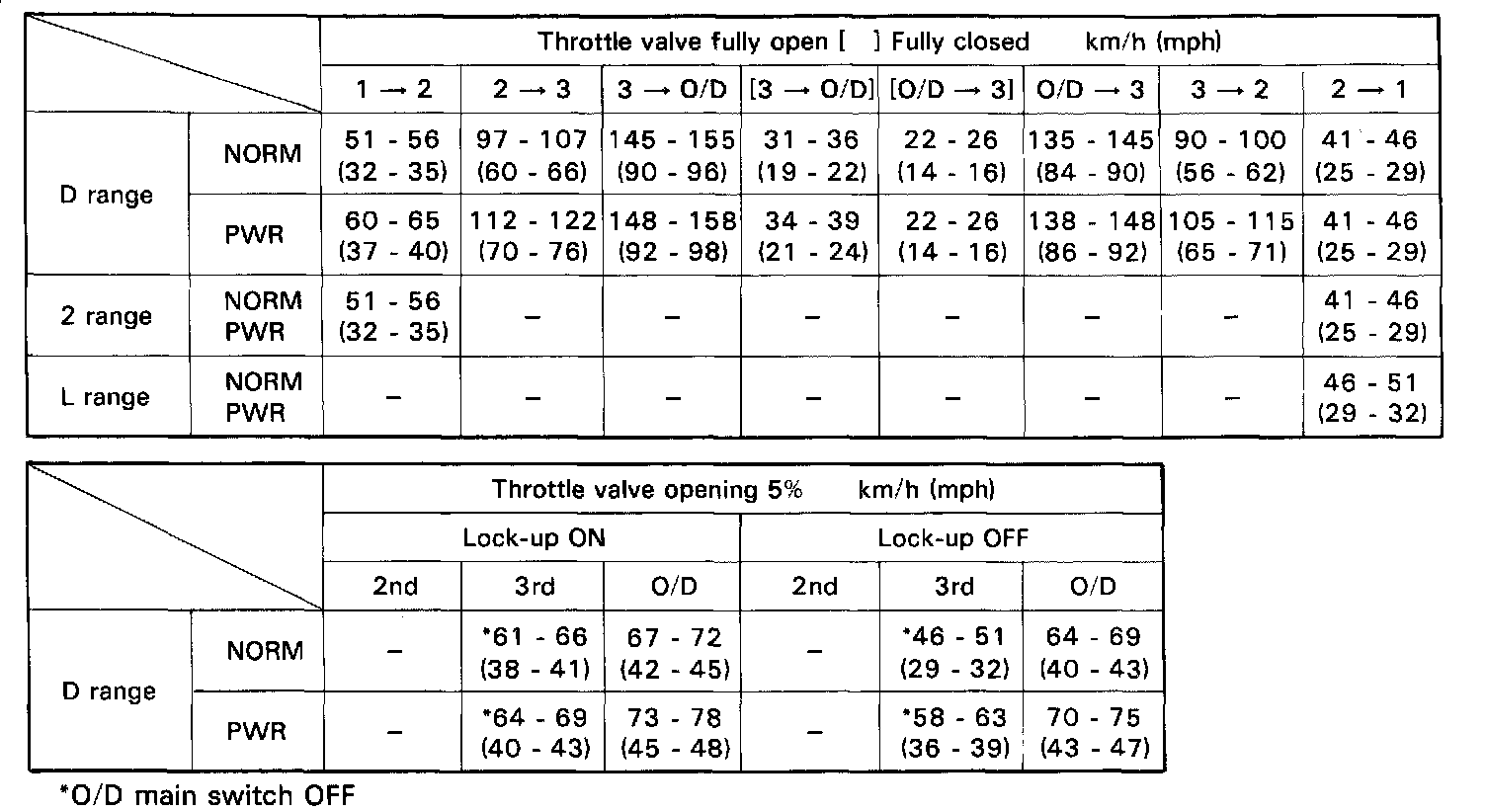

Automatic Shift Schedule (A140E)

(A140E):

NOTE:
1. In the 2 and L ranges, all stages lock-up is OFF.
2. In the following cases, the lock-up will be released regardless of the lock-up pattern.
- When the throttle is completely closed.
- When the brake light switch is ON.
