System Check Procedure

ELECTRONIC FUEL INJECTION (EFI) SYSTEM CHECK PROCEDURE

NOTE:
- Perform all voltage measurements with the connectors connected.
- Verity that the battery voltage is 11 V or more when the ignition switch is at "ON".

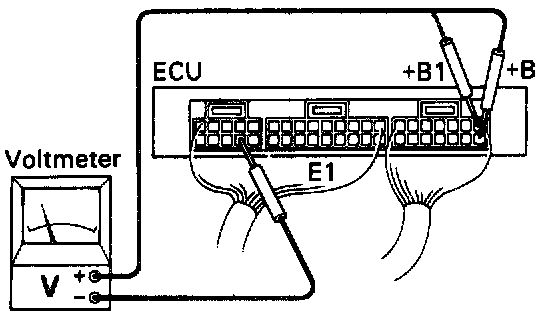

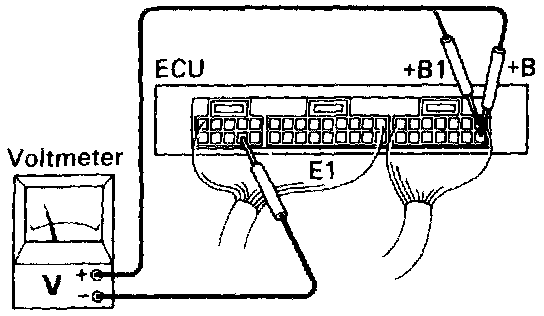

Using a voltmeter with high impedance (10 k-ohms/V minimum), measure the voltage at each terminal of the wiring connectors.

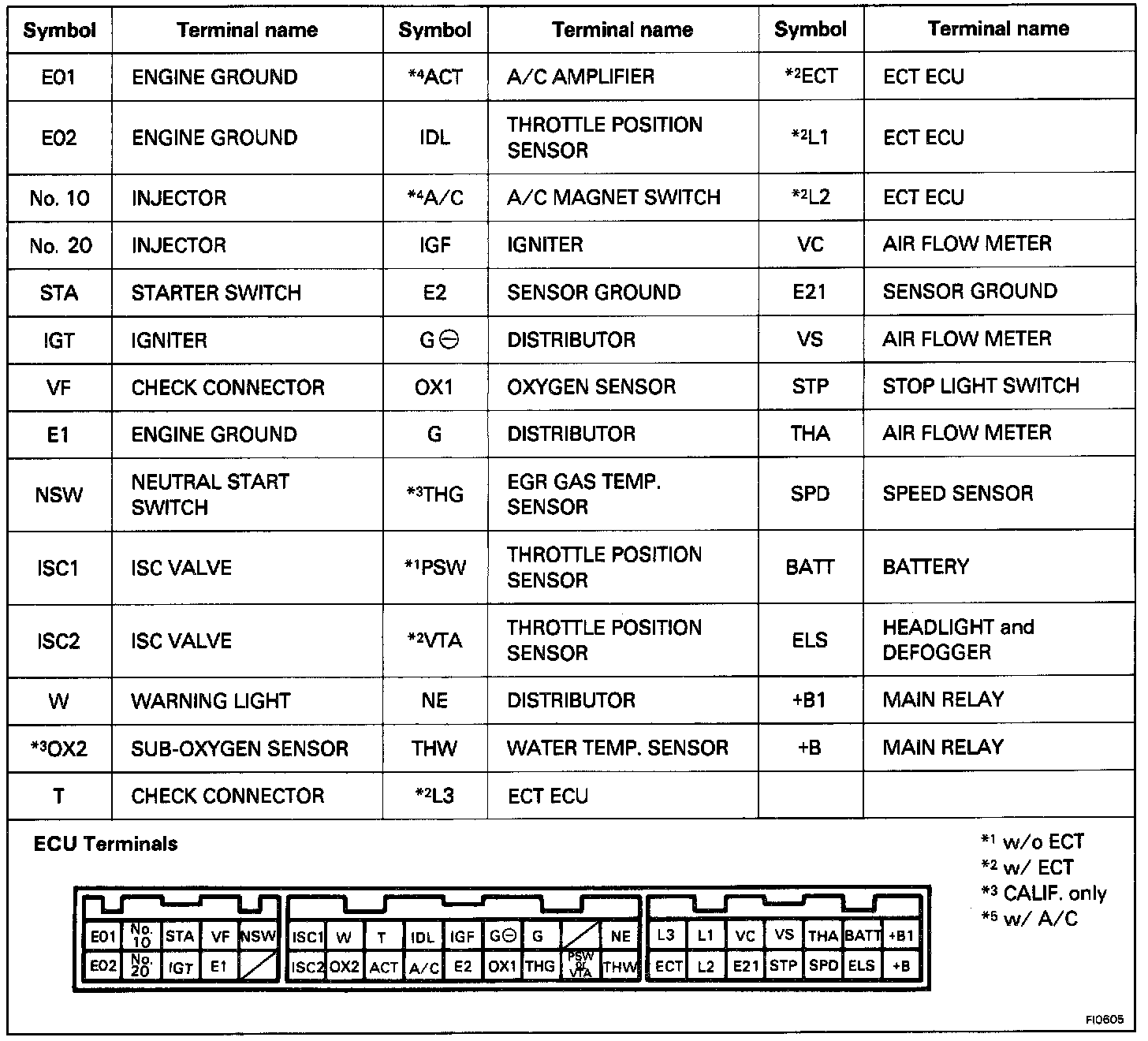

Terminals Of ECU:

Terminals of ECU

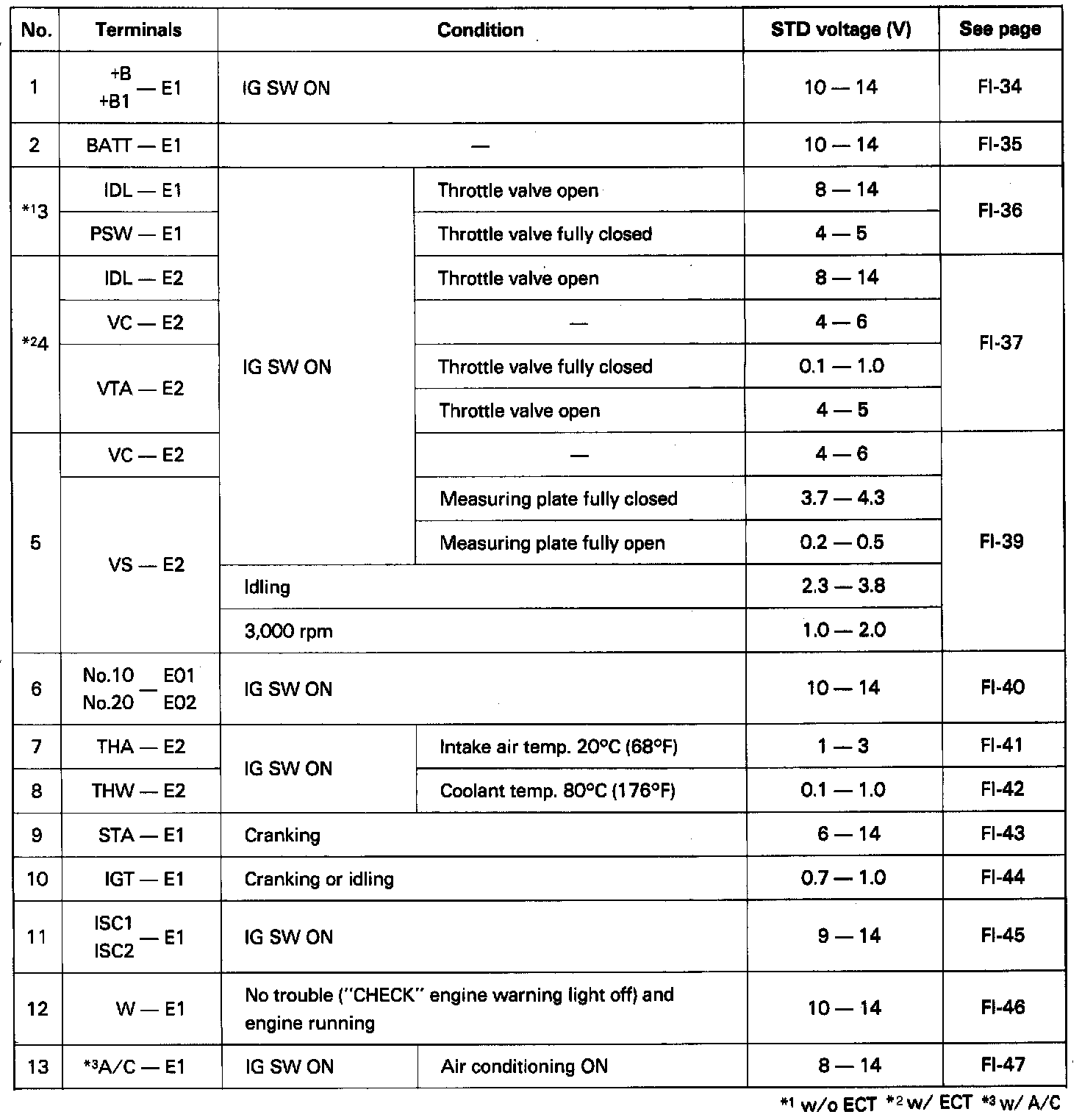

Voltage At ECU Wiring Connectors:

Voltages at ECU Wiring Connectors

NOTE: If there are any problems, proceed with test indicated in left column.
