Wipers - Rear Wiper Park Position Changed

89toyota04

REFERENCE: BODY
NUMBER: 019 (REVISED)
DATE: 06-09-89
MODEL: SV/VV WAGON

REAR WIPER PARKING POSITION:

TITLE CAMRY REAR WIPER PARK POSITION

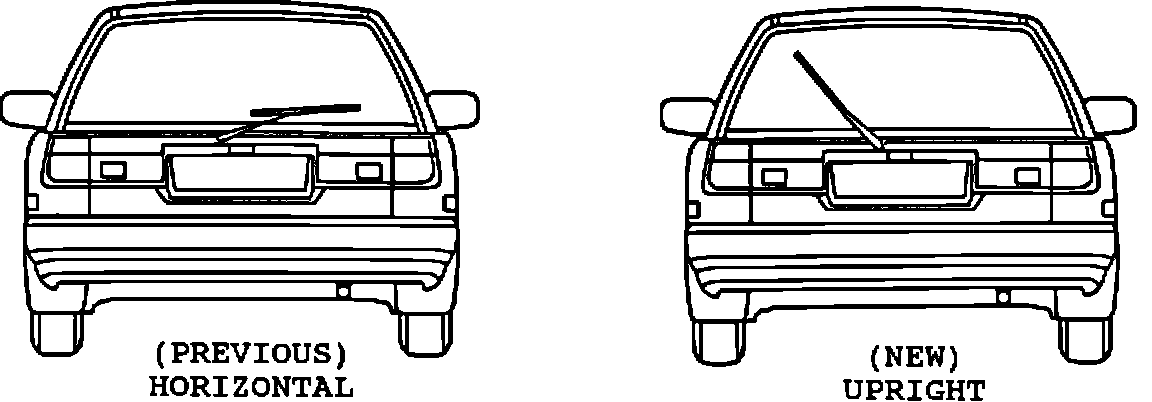

Starting with the 1989 model year, the park position of the rear wiper on Camry wagons has been changed from a horizontal park position to an upright park position. Production change information is as follows:
PRODUCTION CHANGE EFFECTIVE:

Starting VIN Prod. date
JT2SV2 # # # K0240353 Aug. 1988
JT2SV2 # # # K3311053 Aug. 1988
JT2VV2 # # # K0026023 Aug. 1988

PART NUMBER INFORMATION:


PART NUMBER BY PRODUCTION DATE
PART NAME AUG. 86 to JUL. 88 AUG. 88 ON

Wiper motor 85110-32260 85110-32160

Blade assy. 85220-22560 85220-22660

Arm assy. 85190-32310 85190-32210

Cover, rear 85220-12600 85220-22660
wiper

Note: New parts are not interchangeable on previous model year Camry wagon's.
