Home >> Toyota >> 1989 >> Camry Sedan 4WD L4-2.0L (3S-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Window

Power Window

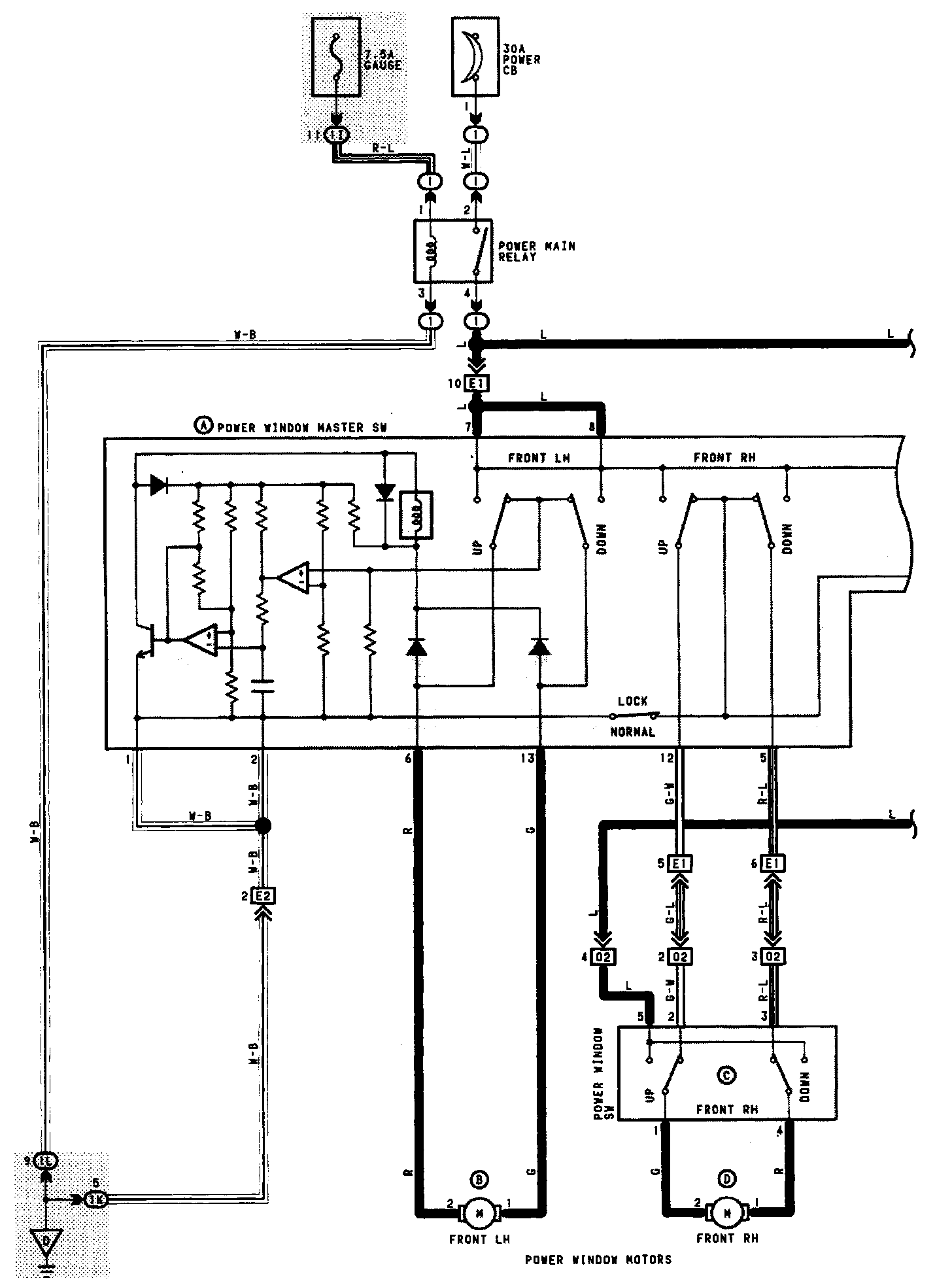

Power Windows - Part 1 Of 2:

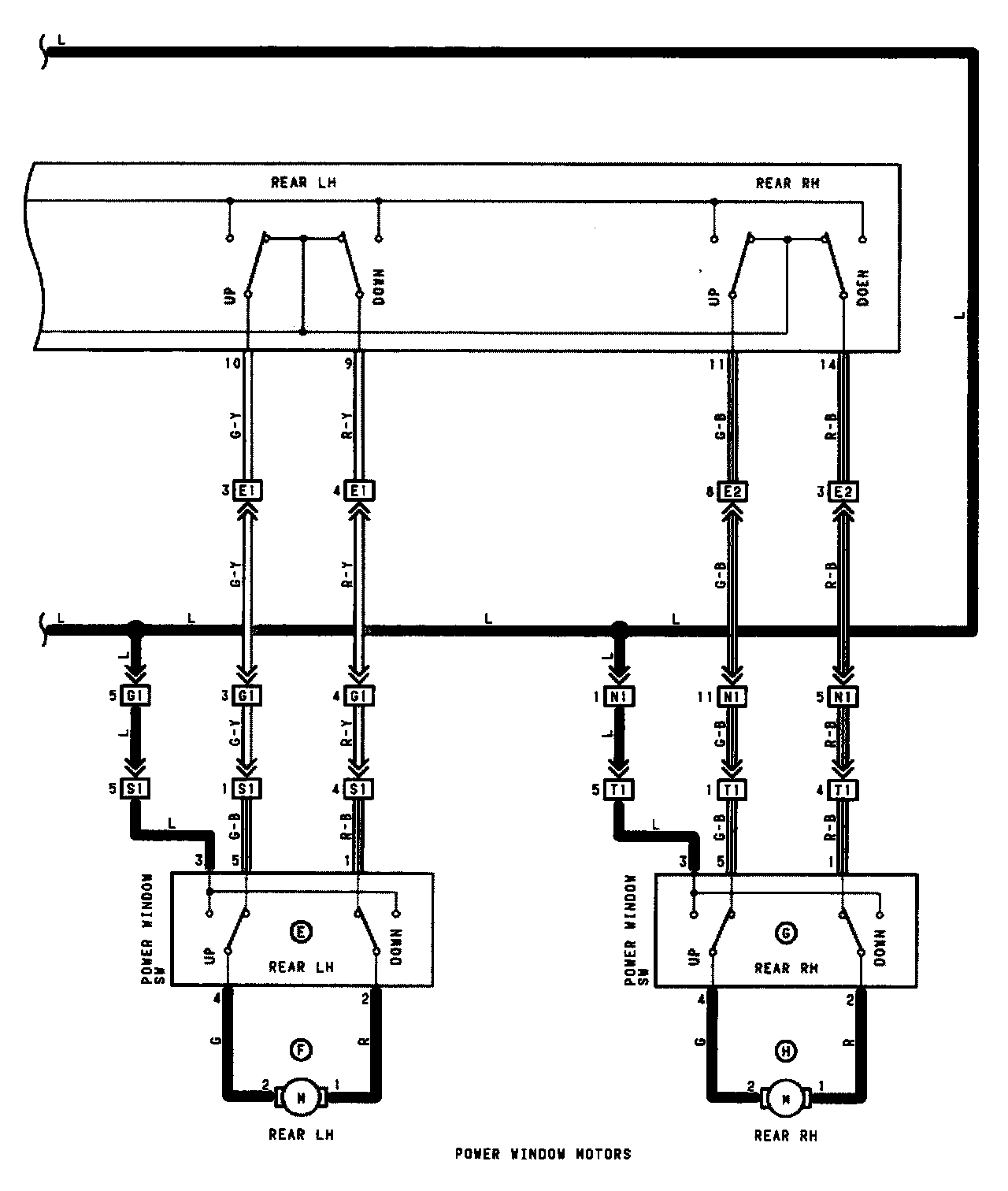

Power Windows - Part 2 Of 2:
