A/T - Overdrive Clutch Modification

89toyota07

TRANSMISSION &
VOLUME REFERENCE CLUTCH

NUMBER 012
10 DATE 08-04-89
MODEL SV, ST with A/TM



TITLE A140E/L O/D CLUTCH MODIFICATION

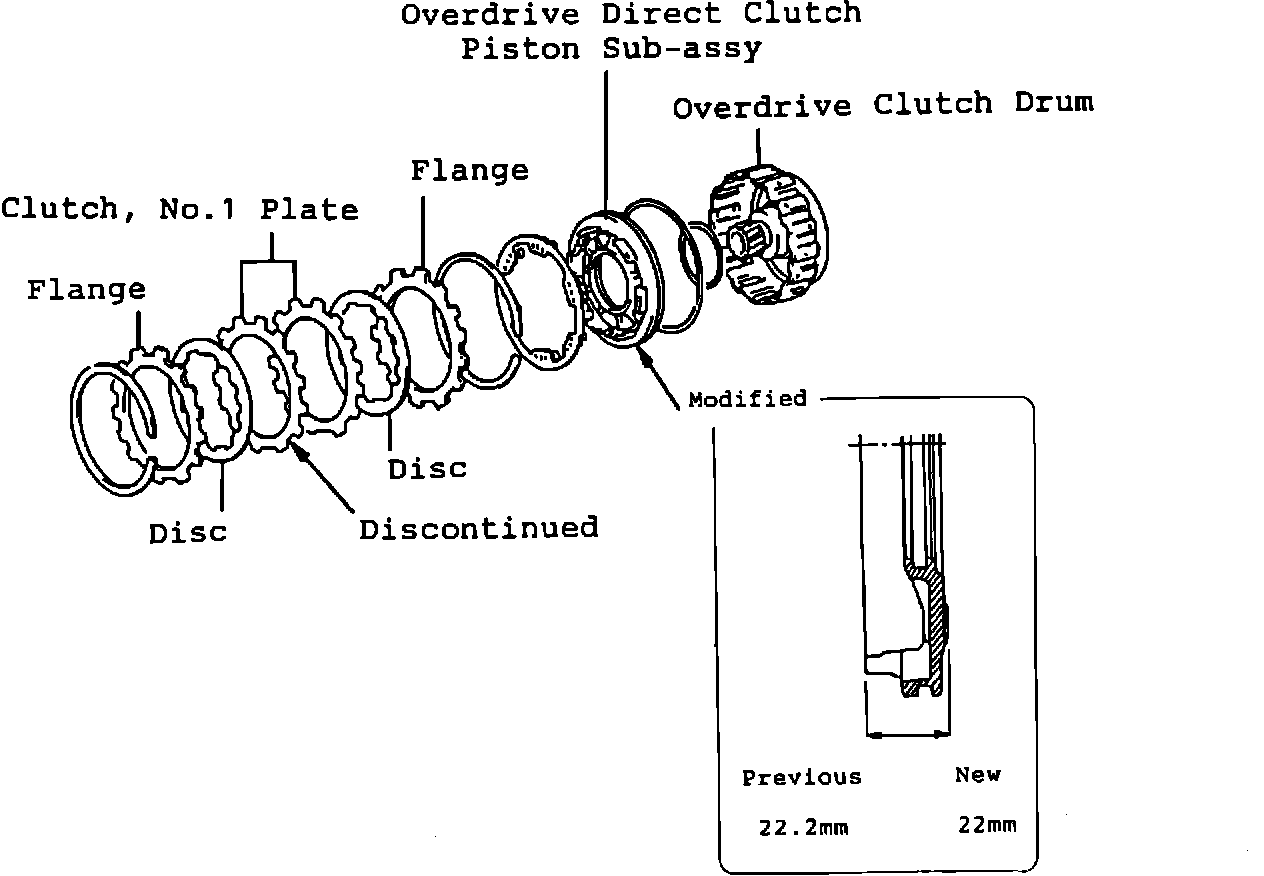

The A140E/L A/TM Overdrive Clutch has been modified as shown below. This bulletin is for parts information and production change information only.
PRODUCTION EFFECTIVE:
Starting VIN P/D Trans Type Engine
JT2ST6#*#J7203820 10/87 A140L 3S-FE
JT2SV2#W#J0122872 10/87 A140E 3S-FE
JT2SV2#E#J3206453 10/87 A140E/A140L 3S-FE

PART NUMBER INFORMATION:
Prev. New
Prev. Part No. Qty. New Part No. Qty. Part Name
34602-20010 1 *34602-32030 1 Piston Sub-assy.
O/D Direct Clutch

35634-20010 2 * --SAME-- 1 Plate, Clutch No. 1

*Interchangeable as a set only.
