M/T - Modified Shift Forks Improve Shift Feel

89toyota10

TRANSMISSION &

REFERENCE CLUTCH
NUMBER 021
DATE 10-06-89
MODEL SV2# & ST6#
TITLE S5# SERIES M/TM SHIFT FORKS

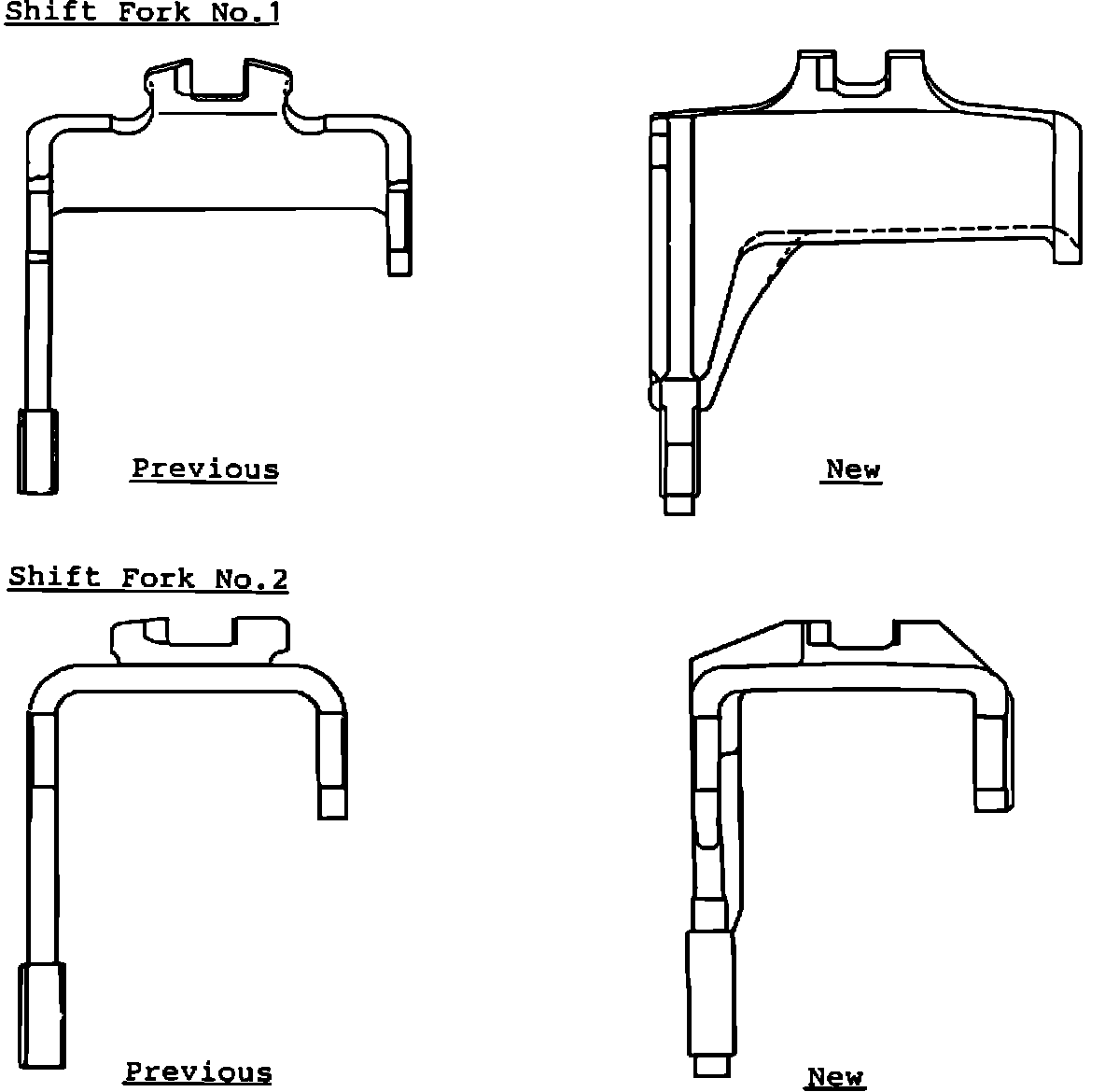

To increase durability and improve shift feel, the material and shape of the No.1 and No.2 shift forks have been changed.

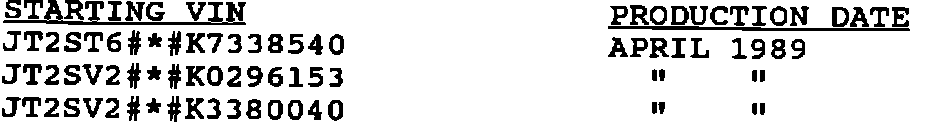

PRODUCTION EFFECTIVE:

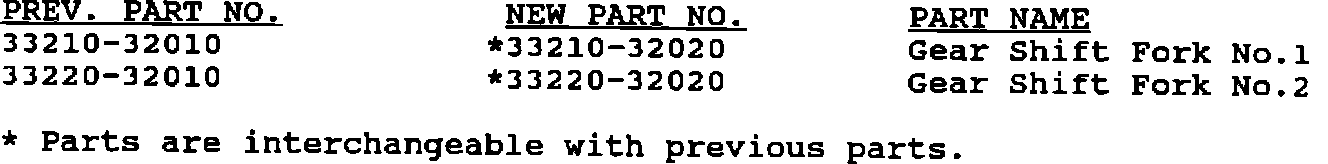

PART NUMBER INFORMATION:
