Inspection of Ring Gear Mounting Case

1. CHECK RING GEAR MOUNTING CASE RUNOUT

HINT: Perform only when the limit is exceeded in the ring gear runout inspection.

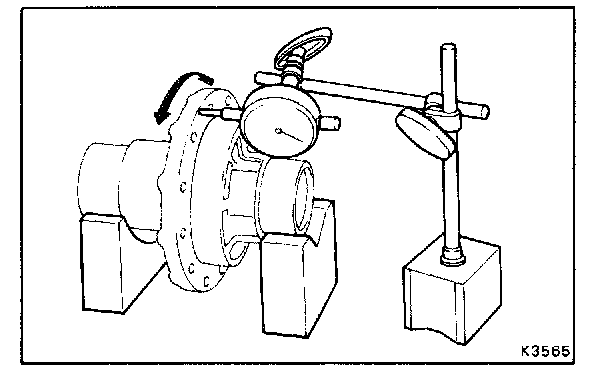

a. Using a dial indicator, check the mounting case runout.
Maximum runout: 0.1 mm (0.004 in.)
