Disassembly of Driven Pinion Bearing Cage

1. REMOVE LOCK NUT
a. Unstake the lock nut.

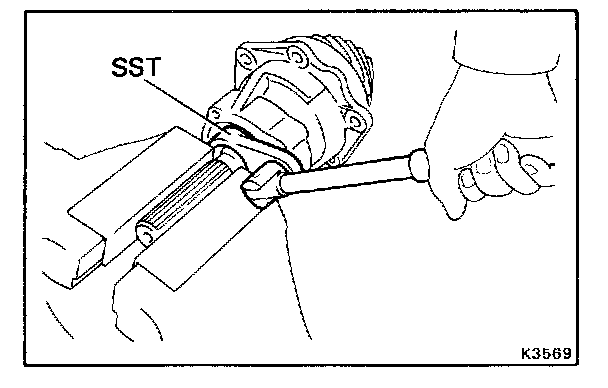

b. Using SST, remove the lock nut.
SST 09326-20011

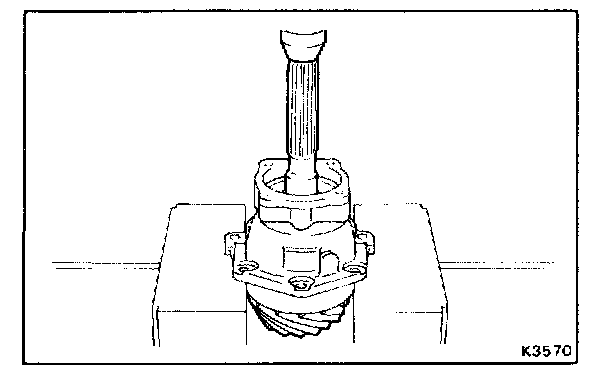

2. REMOVE DRIVEN PINION
Using a press, remove the driven pinion, rear bearing and spacer.




3. IF NECESSARY, REPLACE DRIVEN PINION FRONT BEARING

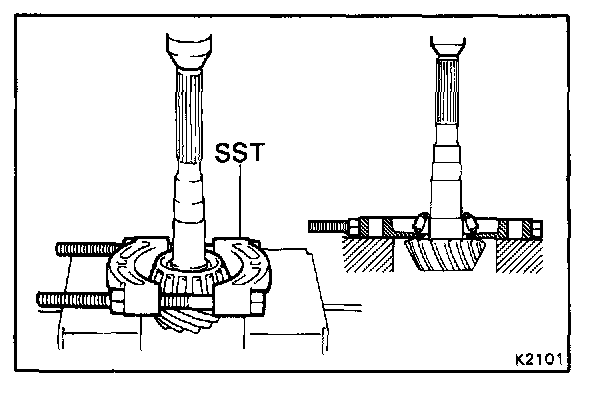

a. Using SST and a press, remove the front bearing.
SST 09950-00020

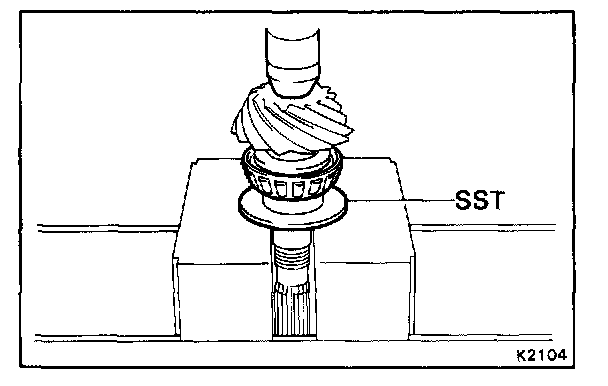

b. Using SST and a press, install the front bearing.
SST 09506-35010




4. IF NECESSARY, REPLACE FRONT AND REAR BEARING OUTER RACE

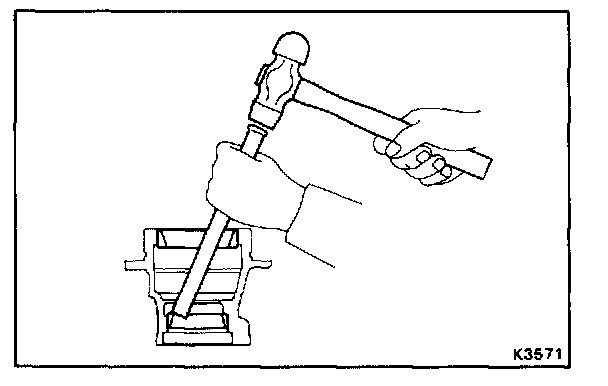

a. Using a brass bar and hammer, drive out the bearing outer race race lightly and evenly.

HINT: Be careful not to damage the drive pinion bearing cage and earing outer race.

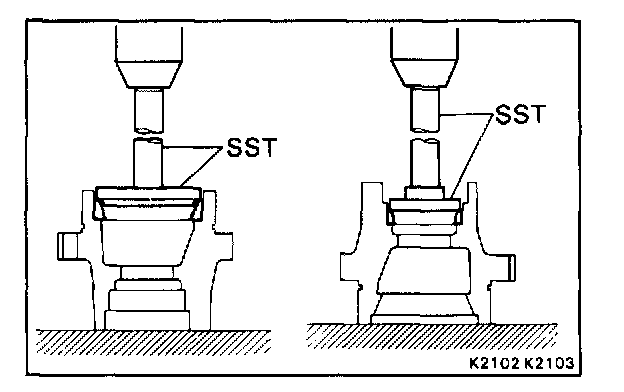

b. Using SST and a press, install the front bearing outer race.
SST 09608-35014 (09608-06020, 09608-06210)
c. Using SST and a press, install the rear bearing outer race.
SST 09550-10012 (09252-10010, 09555-10010)
