Assembly of Ring Gear Mounting Case

1. INSTALL RING GEAR
a. Clean the contact surface of the differential case.

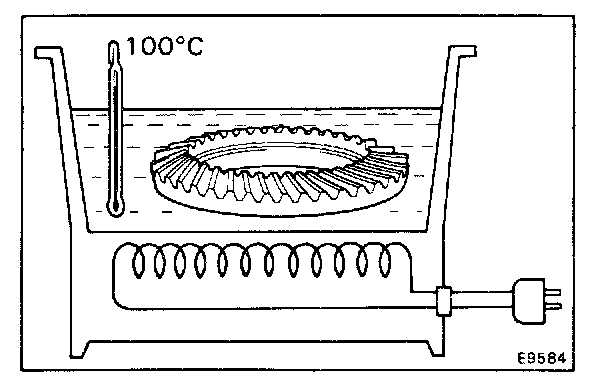

b. Heat the ring gear to about 100°C (212°F) in an oil bath.
c. Clean the contact surface of the ring gear with cleaning solvent.
d. Then quickly install the ring gear on the differential case.

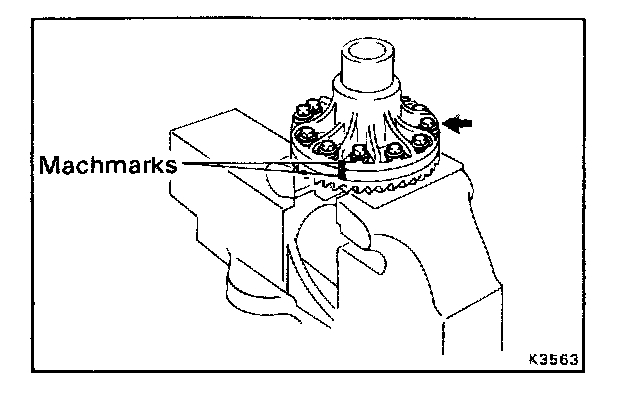

e. Align the marks on the ring gear and differential case.

NOTE: Do not heat the ring gear more than 110°C (230°F).

f. Coat the ring gear set bolts with gear oil.
g. Install and torque the set bolts uniformly, a little at a time.
Torque: 985 kg-cm (71 ft-lb, 97 N.m)




2. CHECK RING GEAR RUNOUT
(See step 2 above)

3. INSTALL MOUNTING CASE SIDE BEARING
Using SST and a press, install the two side bearing.
SST 09316-20011

NOTE: Bearing inner diameter
Ring gear tooth side 55 mm (2.2 in.)
Ring gear back side 54 mm (2.1 in.)
