Assembly of Shift and Select Lever Shaft Assembly

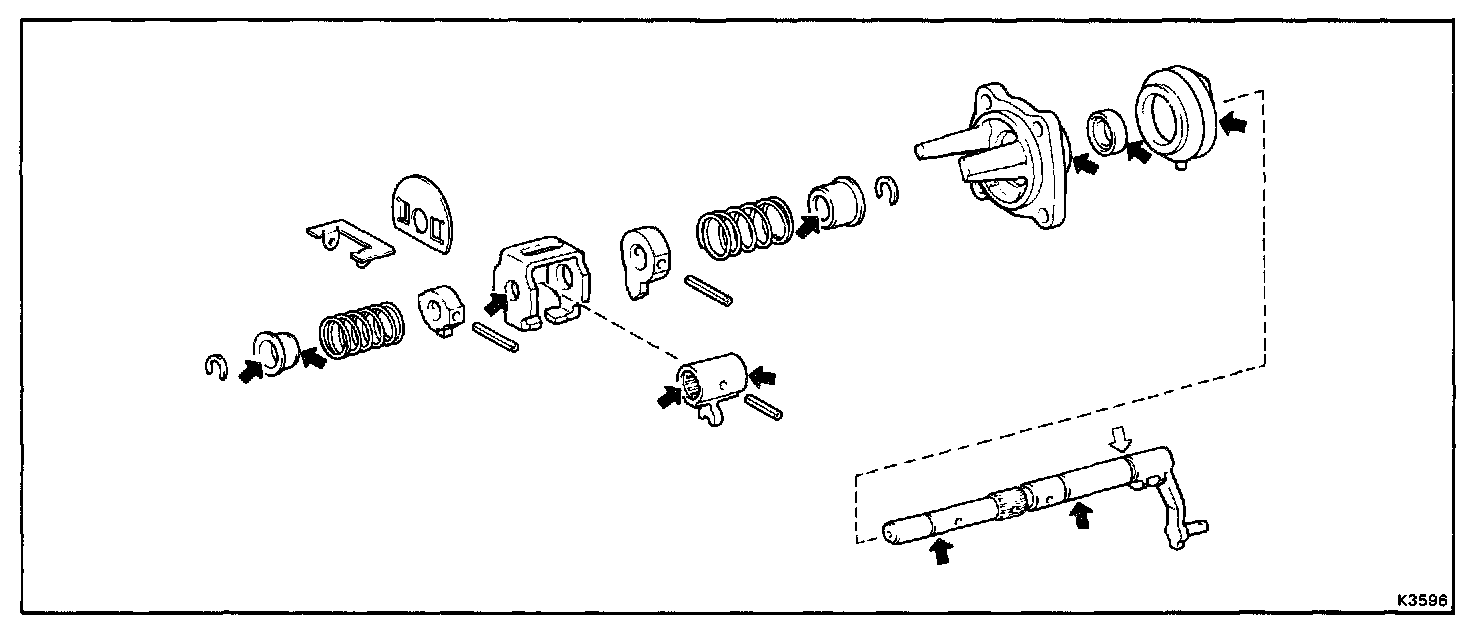

1. APPLY SHAFT WITH MP GREASE, AS SHOWN




2. INSTALL SHIFT AND SELECT LEVER SHAFT

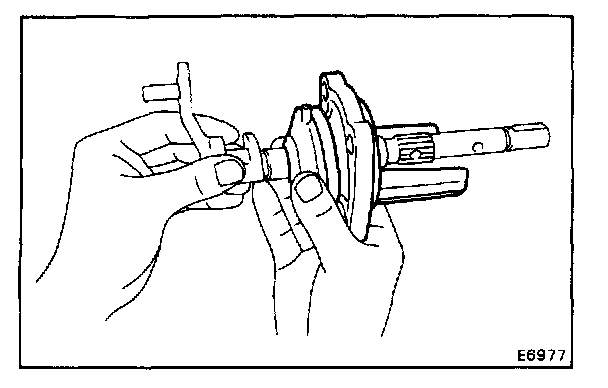

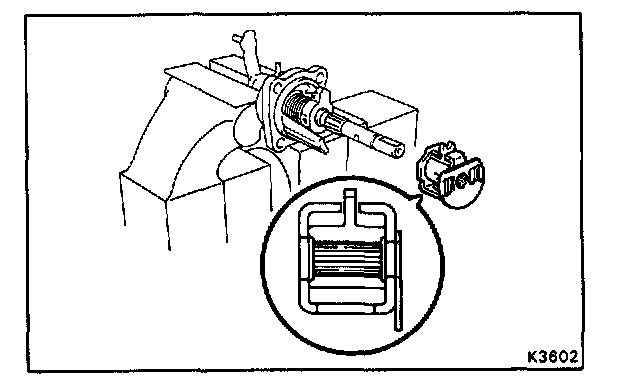

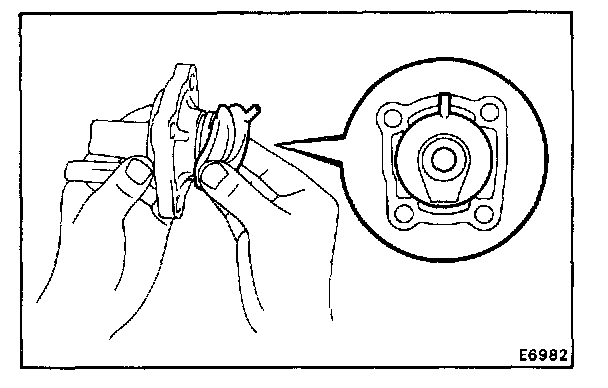

a. Install the boot to the control shaft cover, as shown




b. Install the shift and select lever shaft to the control shaft cover.




3. INSTALL SNAP RING
Using a brass bar and hammer, install the snap ring and spring seat.




4. INSTALL SELECT INNER LEVER

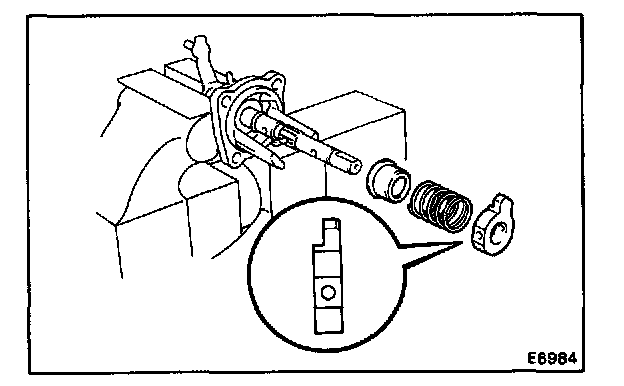

a. Install the No.1 spring seat, No.1 select spring and select inner lever, as shown.

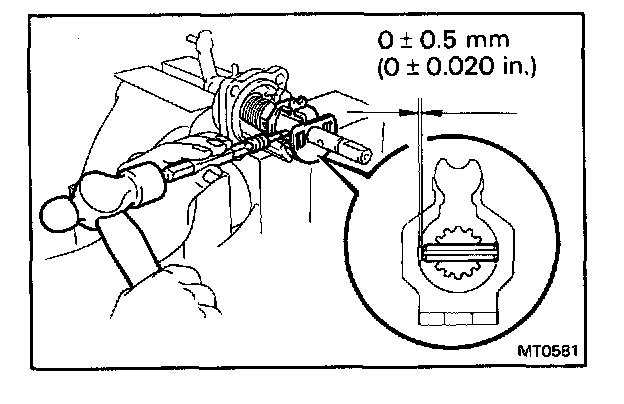

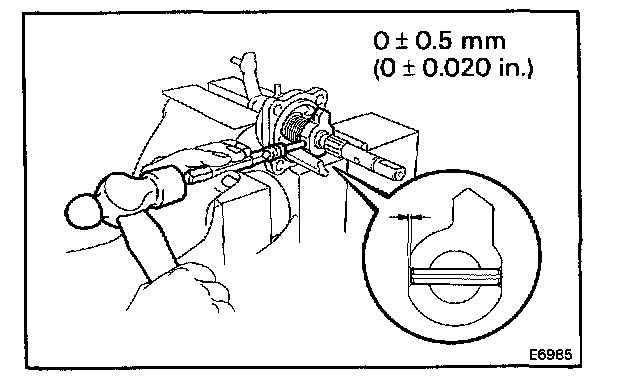

b. Using a pin punch and hammer, drive in the slotted spring pin.




5. INSTALL SHIFT INTERLOCK PLATE AND NO.1 SHIFT INNER LEVER
a. Place the No.1 shift inner lever into the interlock plate.
b. Install the shift interlock plate cover to the interlock plate.

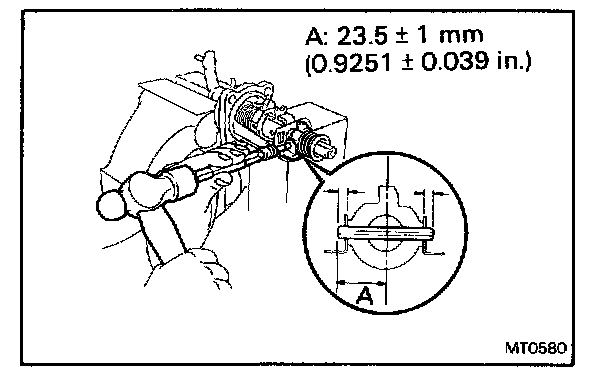

c. Using a pin punch and hammer, drive in the slotted spring pin.
d. Check that the shift interlock plate turns smoothly.




6. INSTALL NO.2 SHIFT INNER LEVER

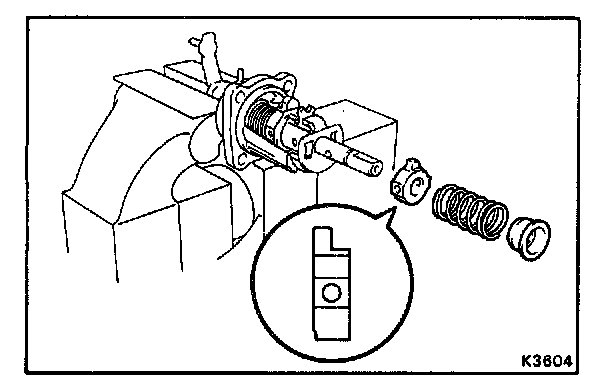

a. Install the No.2 shift inner lever, No.2 compression spring, transmission oil baffle and No.2 select spring seat, as shown.

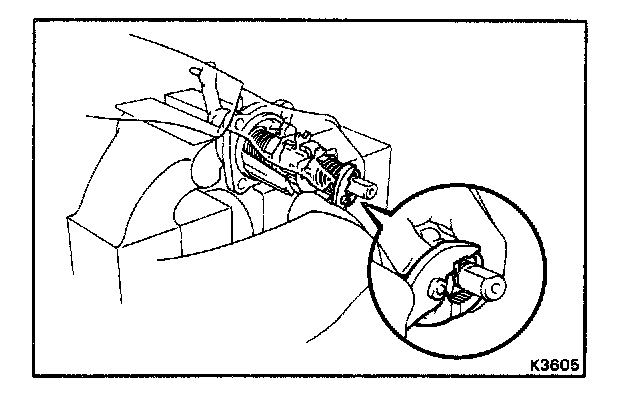

b. Install the snap ring.




c. Using a pin punch and hammer, drive in the slotted spring pin.
