Assembly of Oil Pump

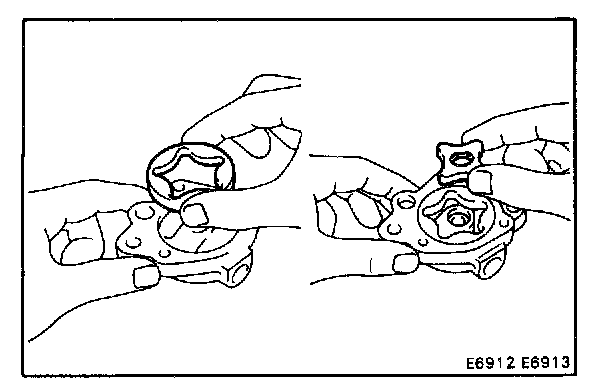

1. INSTALL DRIVEN ROTOR AND DRIVE ROTOR




2. INSTALL OIL PUMP COVER

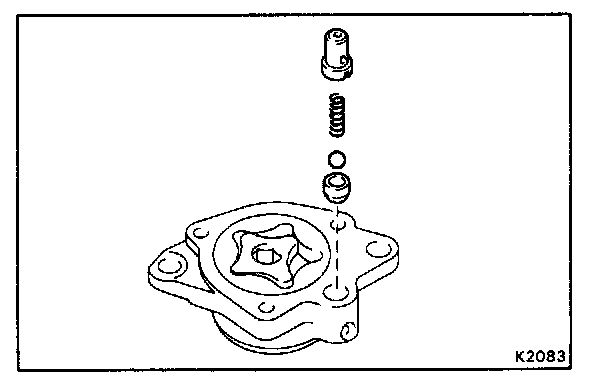

a. Install the relief valve seat, ball, spring and spring holder to the oil pump case.

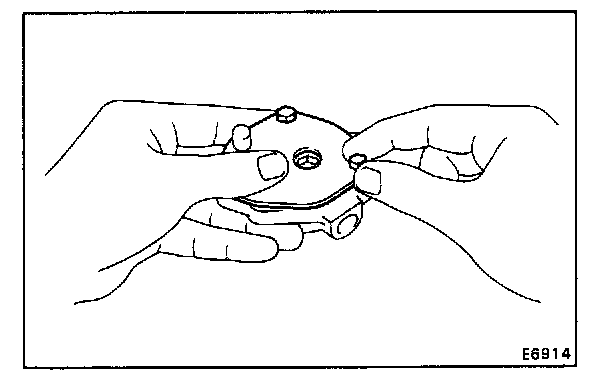

b. Hold the oil pump cover, temporarily install the two bolts.

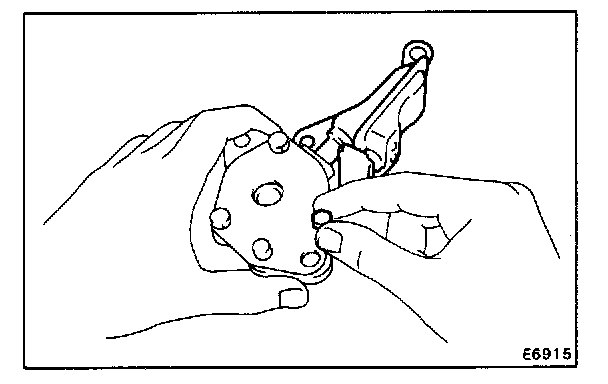

3. INSTALL OIL STRAINER
Install the oil strainer to the oil pump case, temporarily install the bolt.

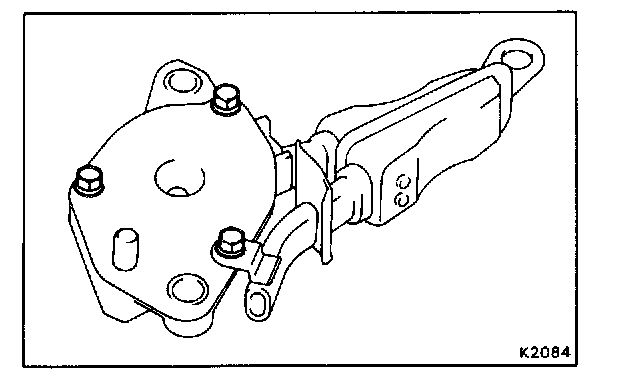

4. TORQUE OIL PUMP COVER BOLTS
Torque the three bolts evenly.

Torque: 105 kg-cm (8 ft-lb, 10 N m)

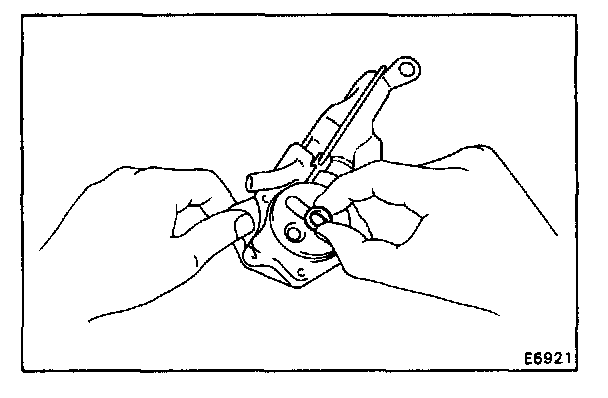

5. CHECK OPERATION OF OIL PUMP
Insert the oil pump drive gear to the drive rotor, check that the drive rotor turns smoothly.




6. INSTALL GASKET
Install a new gasket to the oil pump case.
