Seals and Gaskets: Service and Repair

REPLACEMENT OF OUTPUT SHAFT OIL SEAL
1. DRAIN TRANSAXLE OIL
2. REMOVE PROPELLER SHAFT

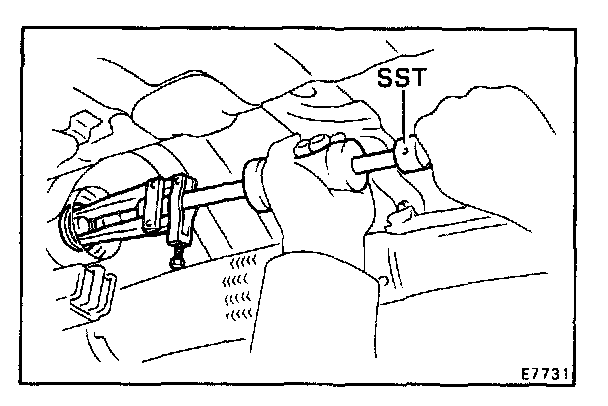

3. REMOVE OUTPUT SHAFT OIL SEAL Using SST, drive out the oil seal.
SST 09308-00010

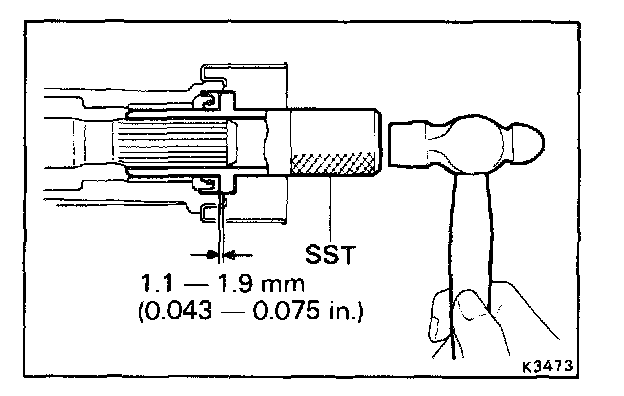

4. INSTALL OUTPUT SHAFT OIL SEAL
Using SST, drive in a new oil seal.
SST 09325-20010
Oil seal depth: 1.1 - 1.9 mm (0.043 - 0.075)

5. INSTALL PROPELLER SHAFT
6. FILL TRANSAXLE WITH GEAR OIL
