Transfer Indicator Switch

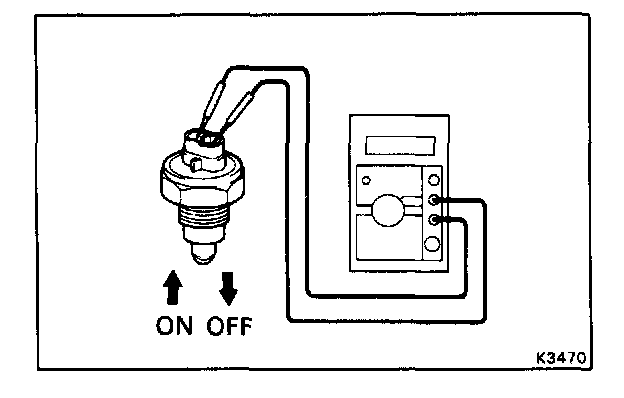

INSPECT TRANSFER INDICATOR SWITCH FOR CONTINUITY
a. Disconnect the indicator switch from the transfer.
b. Check continuity between the terminals when the switch is turned ON and when turned OFF.
Switch ON position: Continuity
Switch OFF position: No continuity
If not, replace the indicator switch.
