Speedometer Gear, A/T: Service and Repair

REPLACEMENT OF SPEEDOMETER DRIVEN GEAR OIL SEAL



1. REMOVE SPEEDOMETER DRIVEN GEAR OIL SEAL

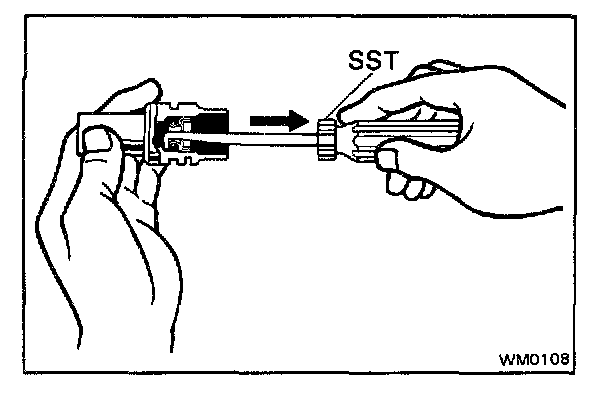

Using SST, pull out the oil seal.
SST 09921-00010




2. INSTALL SPEEDOMETER DRIVEN GEAR OIL SEAL

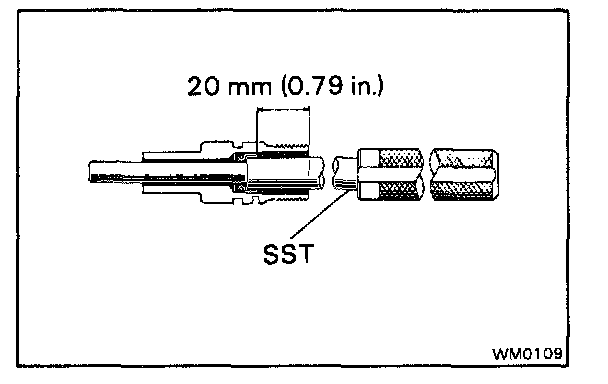

Using SST, drive in the oil seal.
SST 09201-60011

Drive in depth: 20 mm (0.79 in.)
