Removal and Installation

REMOVAL AND INSTALLATION OF ENGINE
Refer to Engine service procedures.

REMOVAL AND INSTALLATION OF TRANSAXLE



Remove and install transaxle as shown.

MAIN POINT OF INSTALLATION

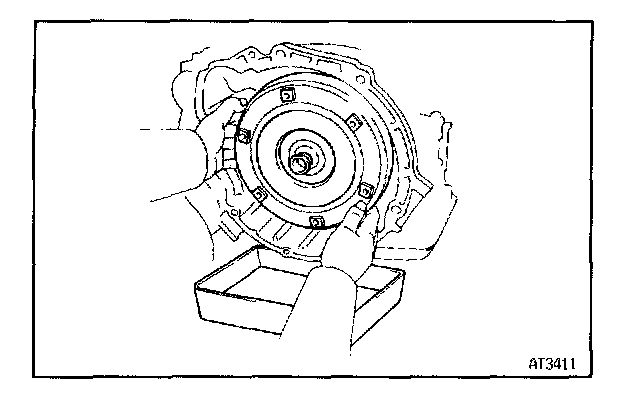

1. INSTALL TORQUE CONVERTER IN TRANSAXLE

2. CHECK TORQUE CONVERTER INSTALLATION

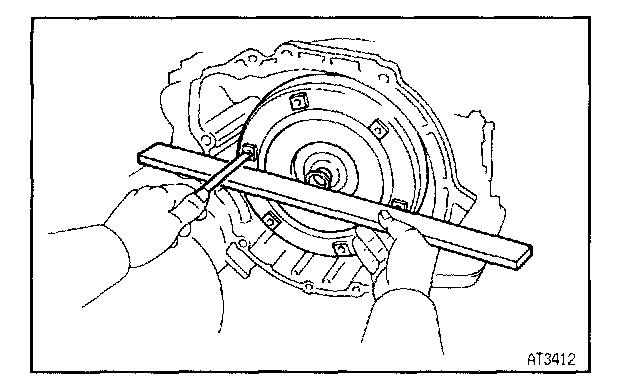

Using a scale and a straight edge, measure from the installed surface to the front surface of the transaxle housing.

Correct distance: 23.0 mm (0.906 in.) or more

3. INSTALL TORQUE CONVERTER MOUNTING BOLTS



a. Clean the threads of the bolts with the gasoline.

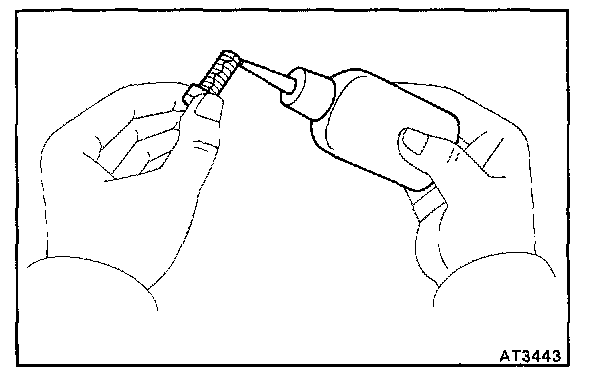

b. Coat the threads of the bolts with sealer.
Sealer: Part No.08833-00070, THREE BOND 1324 or equivalent.
c. Tighten the bolts evenly.

Torque: 280 kg.cm. (20 ft.lb., 27 N.m)

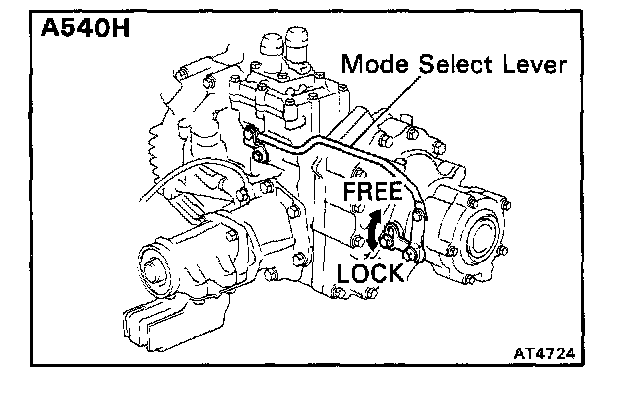

4. (A540H, Transfer) INSPECT MODE SELECT LEVER POSITION



After finishing inspection or repair the transaxle, be sure the mode select lever position to FREE mode and attach the lock bolt.
