Transfer Right Case Retainer

COMPONENTS

DISASSEMBLY OF TRANSFER RIGHT CASE RETAINER

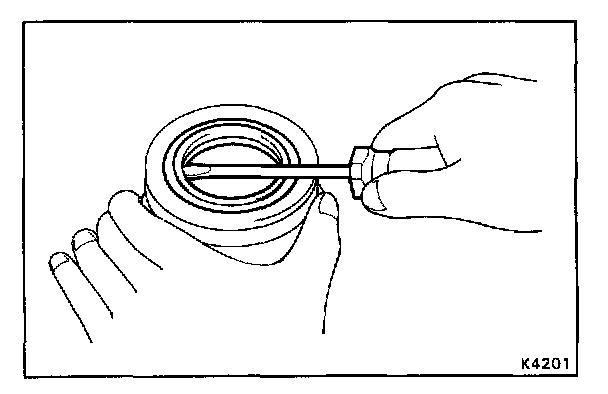

1. REMOVE OIL SEAL
Using a screwdriver, remove the oil seal.

2. REMOVE SIDE GEAR SHAFT HOLDER

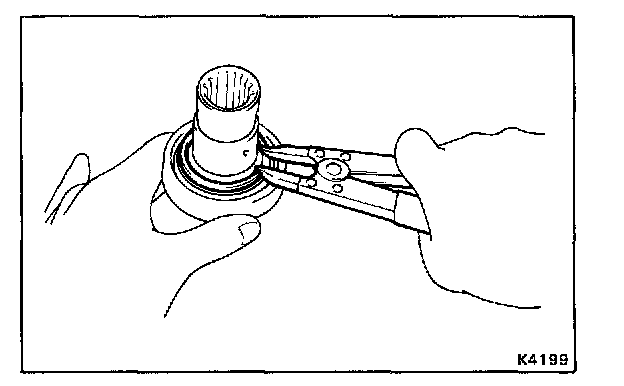

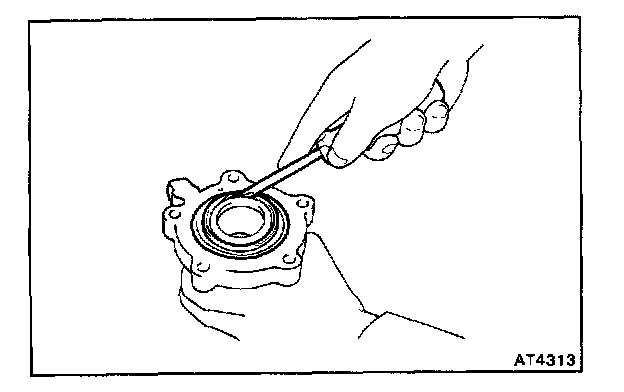

a. Using a snap ring pliers, remove the snap ring.

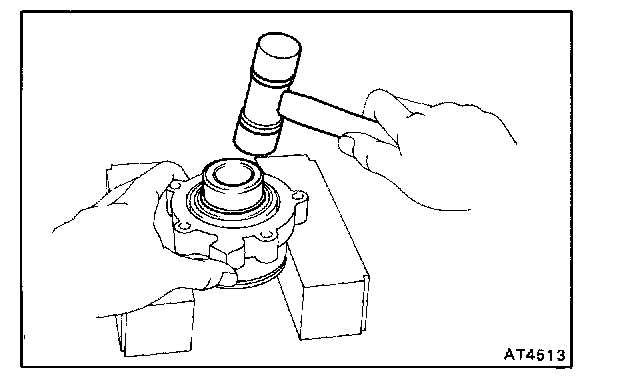

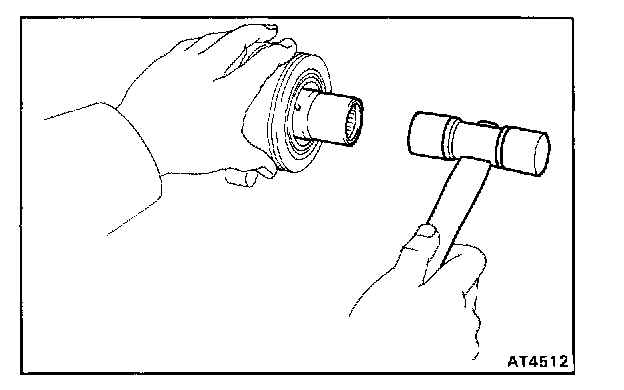

b. Using a plastic hammer, remove the side gear shaft holder.

3. REMOVE HOLDER BEARING

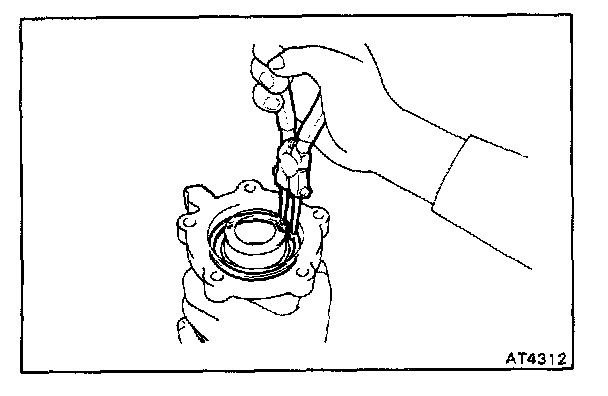

a. Using snap ring pliers, remove the snap ring.

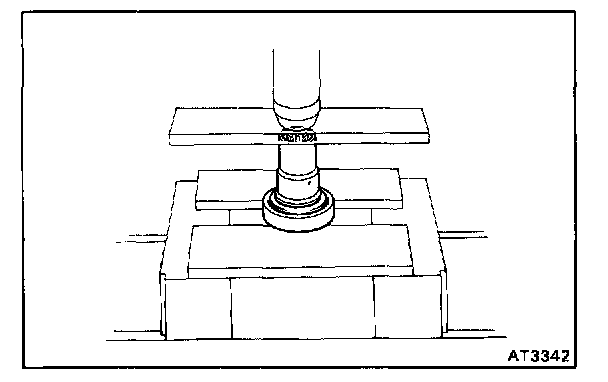

b. Using a press, press out the bearing.




4. REMOVE OIL SEAL
Using a screwdriver, remove the oil seal.

ASSEMBLY OF TRANSFER RIGHT CASE RETAINER

1. INSTALL HOLDER BEARING

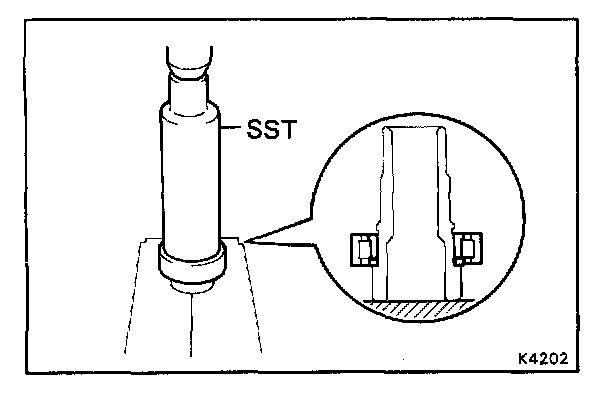

a. Using SST and a press, press in the holder bearing.
SST 09226-10010

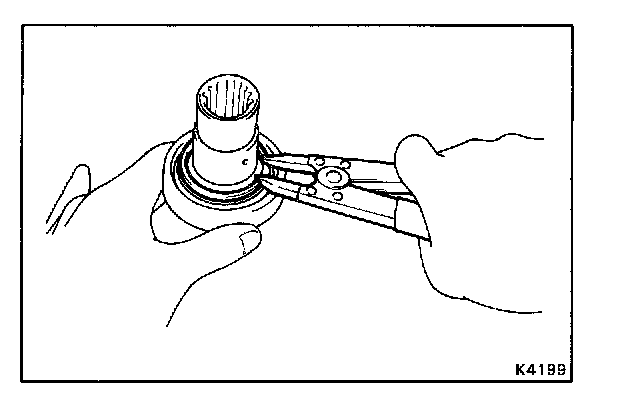

b. Using snap ring pliers, install the snap ring.

2. INSTALL SIDE GEAR SHAFT HOLDER




a. Install the side gear shaft holder.




b. Using snap ring pliers, install the snap ring.

3. INSTALL OIL SEAL




(Left side oil seal)

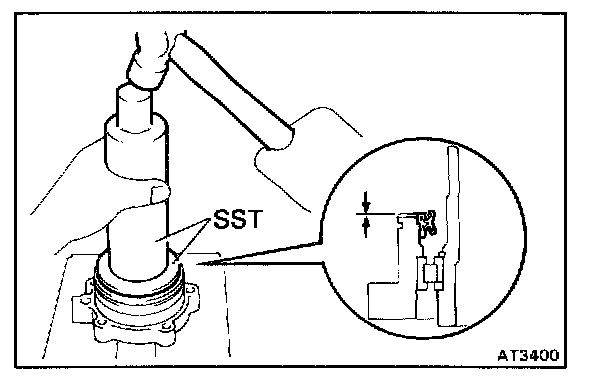

a. Coat a new oil seal lip with MP grease.
b. Using a hammer and SST, drive in the oil seal.
SST 09316-60010 (09316-00010, 09316-00040)

Oil seal depth: 0 mm (0 in.)




(Right side oil seal)

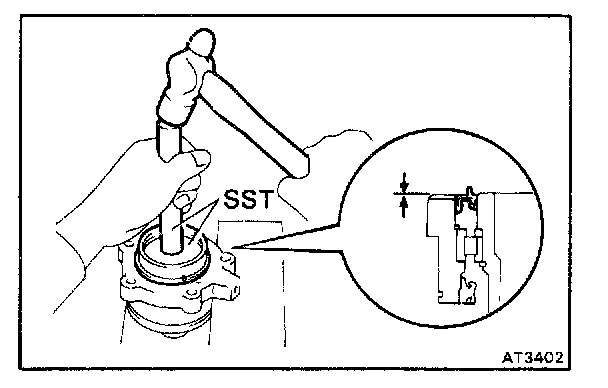

a. Coat a new oil seal lip with MP grease.
b. Using a hammer and SST, drive in the oil seal.
SST 09608-32010, 09608-35014 (09608-06020)

Oil seal depth: 0 mm (0 in.)
