Transfer Right Case

COMPONENTS

DISASSEMBLY OF TRANSFER RIGHT CASE

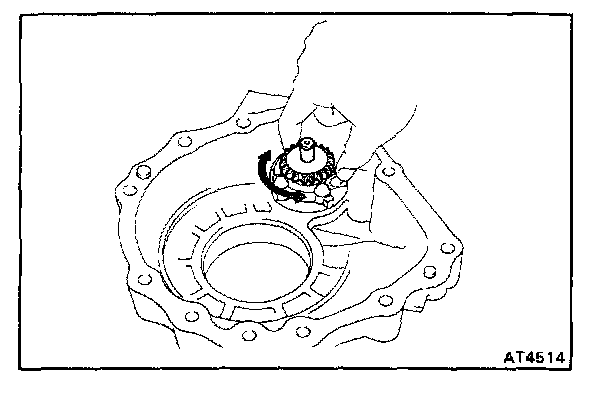

1. INSPECT OIL PUMP OPERATION
Check that the oil pump turns smoothly with oil pump driven gear.

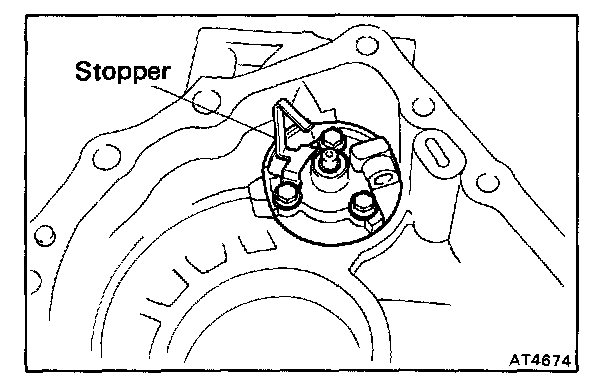

2. REMOVE OIL PUMP DRIVEN GEAR STOPPER, OIL PUMP COVER, DRIVE ROTOR AND DRIVEN ROTOR
a. Remove the three bolts and oil pump driven gear stopper.
b. Pull out the oil pump cover, drive rotor and driven rotor.

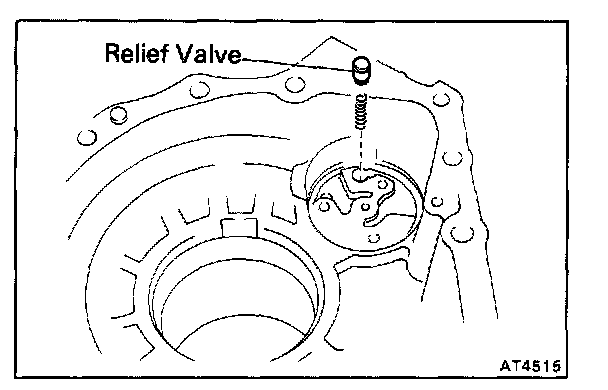

3. REMOVE RELIEF VALVE
Remove the relief valve and spring.

ASSEMBLY OF TRANSFER RIGHT CASE

1. INSTALL RELIEF VALVE
Install the relief valve and spring.




2. INSTALL OIL PUMP DRIVE ROTOR AND DRIVEN ROTOR

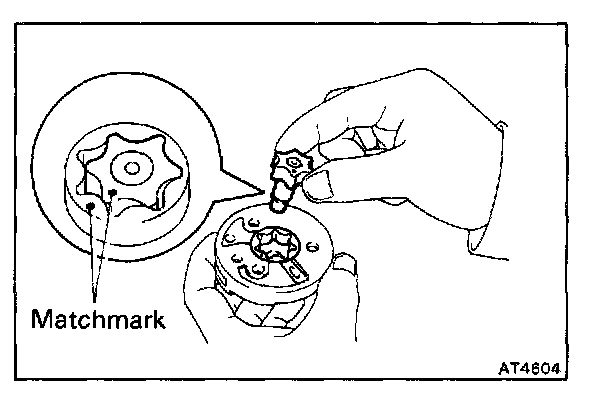

Align the matchmarks on the drive rotor and the driven rotor.




3. INSTALL OIL PUMP COVER AND DRIVEN GEAR STOPPER
Torque the three bolts evenly.

Torque: 80 kg.cm. (69 in.lb., 7.8 N.m)

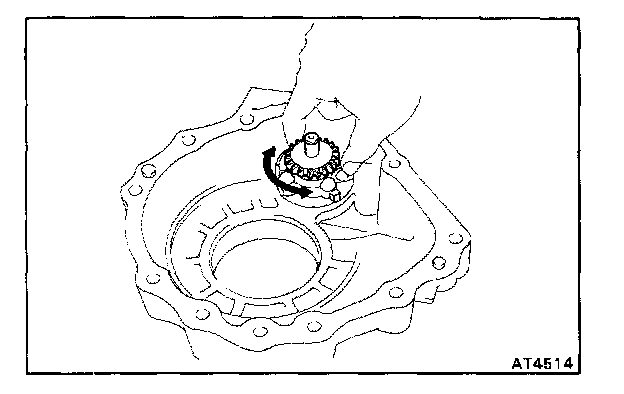

4. CHECK OPERATION OF OIL PUMP
Insert the oil pump driven gear to the drive rotor check that the drive rotor turns smoothly.
