Transfer Left Case

COMPONENTS

DISASSEMBLY OF TRANSFER LEFT CASE
1. REMOVE CENTER DIFFERENTIAL CONTROL SOLENOIDS

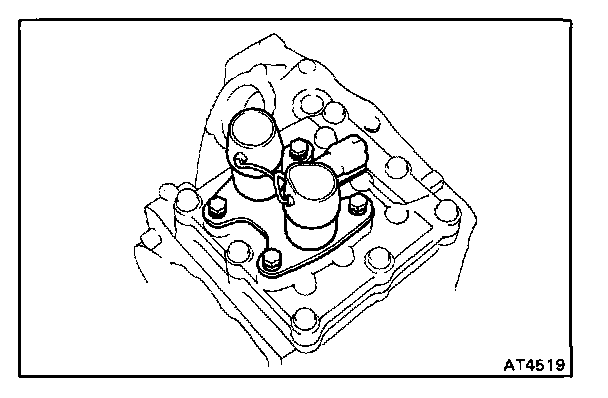

a. Remove the four bolts and solenoids.

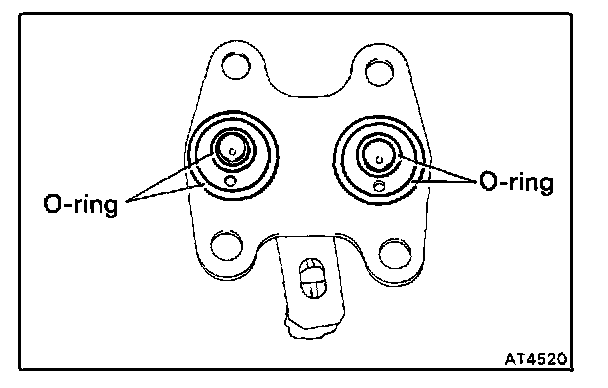

b. Remove the four O-rings from the solenoids.

2. REMOVE TRANSFER VALVE BODY ASSEMBLY

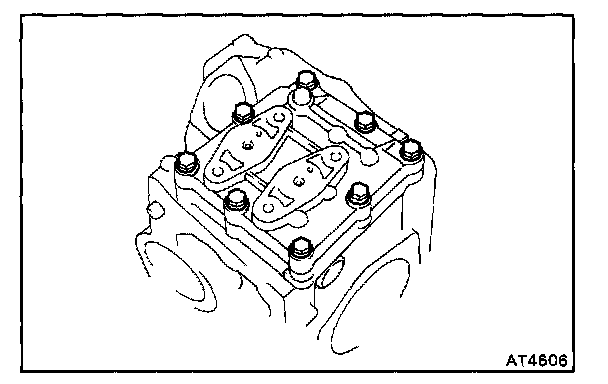

a. Remove the eight bolts and transfer valve body assembly.
b. Remove the transfer valve body gasket.

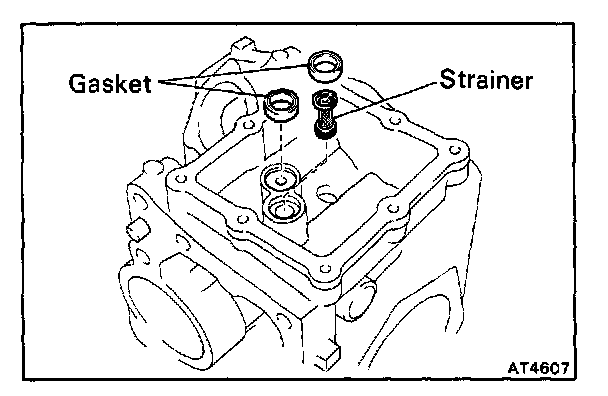

c. Remove transfer case gaskets and valve body strainer.

3. REMOVE TRANSFER SHIFT LEVER

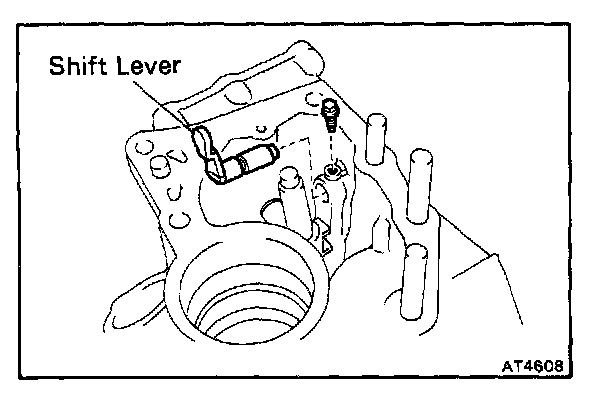

a. Remove the lock bolt and transfer shift lever.

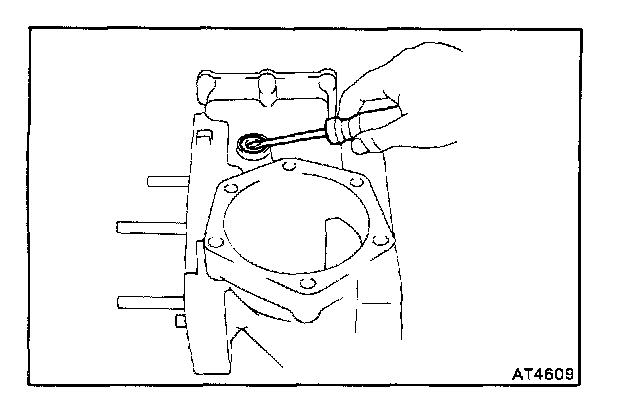

b. Using a screwdriver, remove the oil seal.

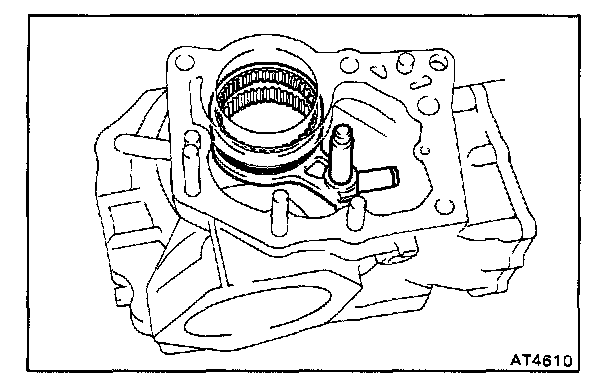

4. REMOVE SHIFT FORK SHAFT, SHIFT FORK AND SLEEVE




5. REMOVE SHIFT FORK SHAFT FROM SHIFT FORK
a. Remove the head plug, spring and ball.
b. Pull out the shift fork shaft from shift fork.

DISASSEMBLY OF TRANSFER VALVE BODY
REMOVE TRANSFER LOWER VALVE BODY

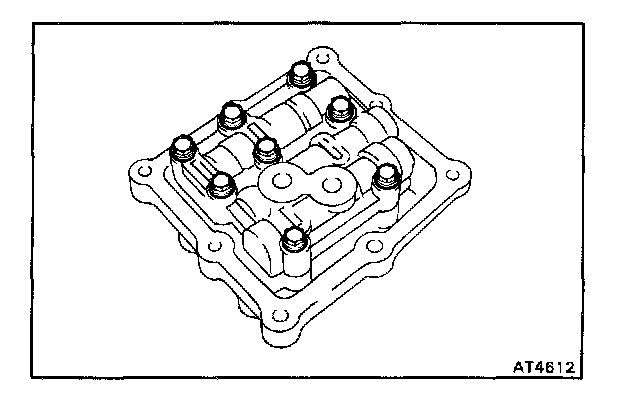

a. Remove the eight bolts and transfer lower valve body.

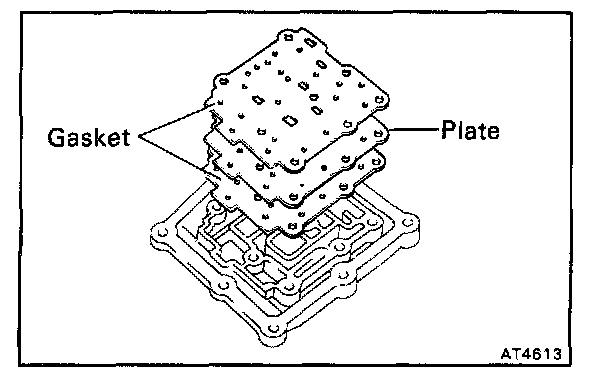

b. Remove the two gaskets and plate from the transfer upper valve body.
