Second Coast Brake

COMPONENTS





DISASSEMBLY OF SECOND COAST BRAKE PISTON



1. REMOVE OIL SEAL RING
Remove the oil seal ring from the piston.

2. REMOVE PISTON ROD

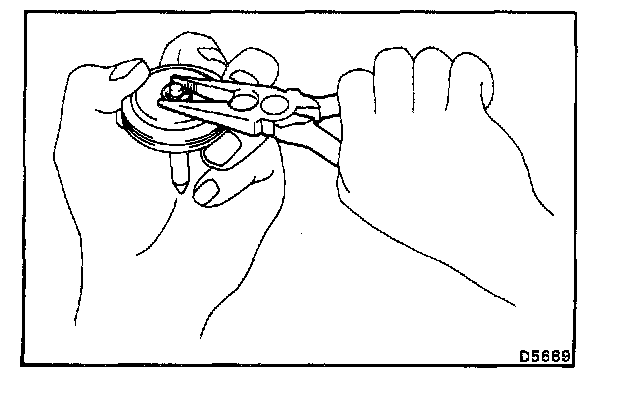

a. Remove the E-ring while pushing the piston with needle-nose pliers.

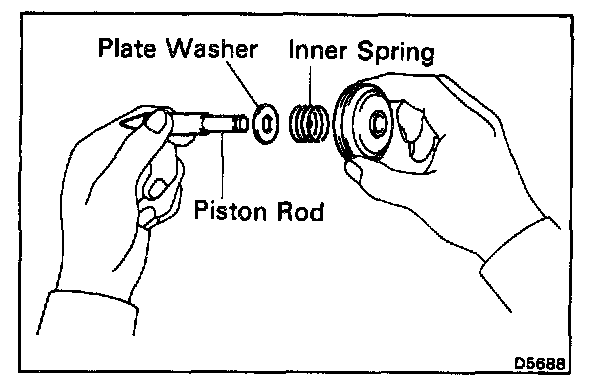

b. Remove the inner spring, plate washer and piston rod.




INSPECTION OF SECOND COAST BRAKE COMPONENT

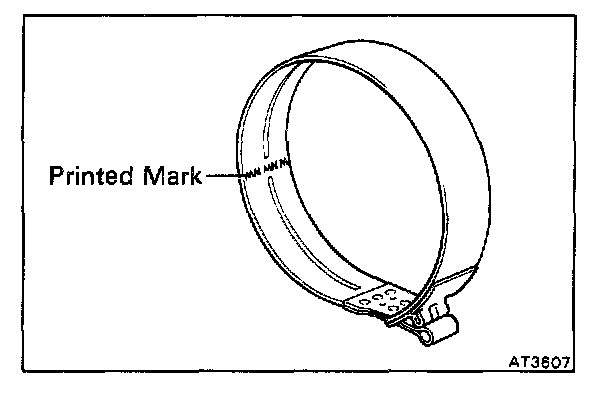

If the lining of the brake band is exfoliated or discolored, or even part of the printed marks is defaced, replace the brake band.

ASSEMBLY OF SECOND COAST BRAKE PISTON




1. SELECT PISTON ROD

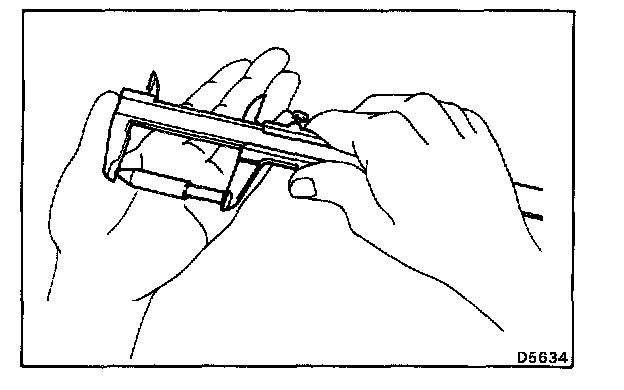

If the band is OK but piston stroke not within the standard value, select the piston rod.

Piston stroke: 2.0 - 3.5 mm (0.079 - 0.138 in.)

There are two lengths of piston rod.

Piston rod length:
- 95.2 mm (3.748 in.)
- 96.3 mm (3.791 in.)

2. INSTALL PISTON ROD

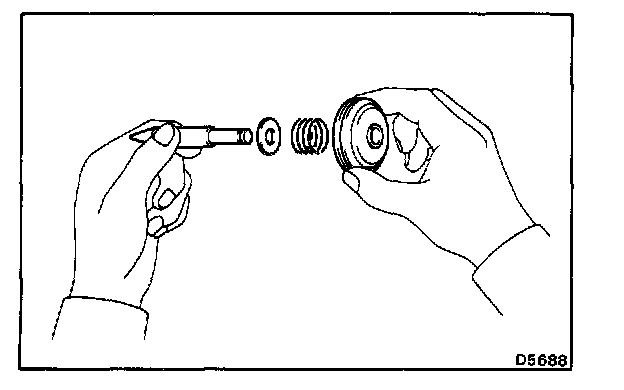

a. Install the plate washer and inner spring to the piston rod.

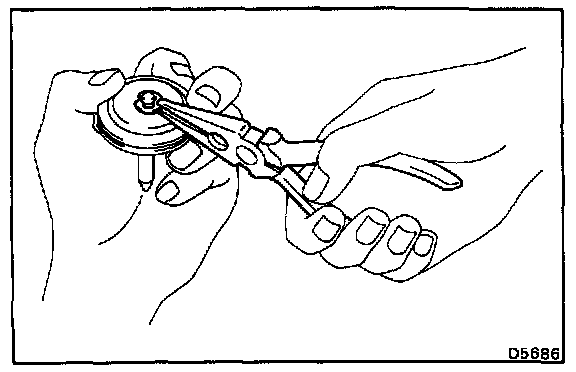

b. Install the E-ring while pushing the piston.




3. INSTALL OIL SEAL RING
a. Apply ATF to the oil seal ring.

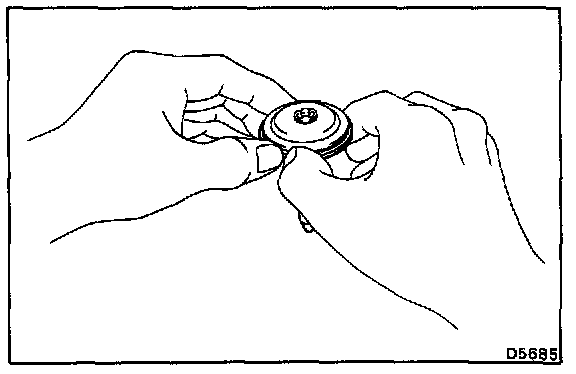

b. Install the oil seal ring to the piston.

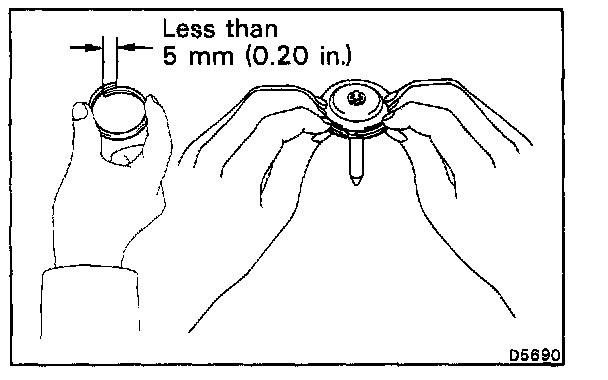

CAUTION: Do not spread the ring ends more than necessary.
