Extension Housing Seal, A/T

REPLACEMENT OF EXTENSION HOUSING OIL SEAL
1. DRAIN TRANSFER OIL
2. REMOVE PROPELLER SHAFT
3. REMOVE EXTENSION HOUSING OIL SEAL

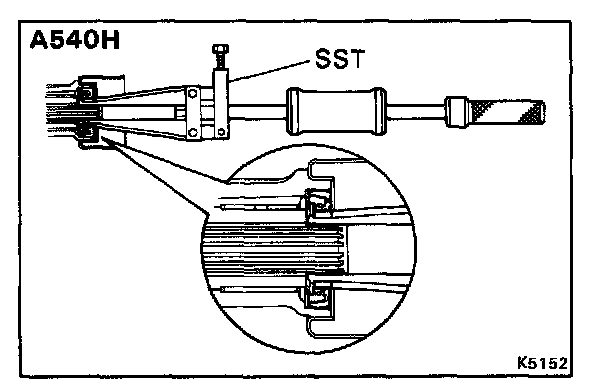

Using SST, remove the oil seal.
SST 09308-00010

4. INSTALL EXTENSION HOUSING OIL SEAL
a. Coat the lip of oil seal with MP grease.

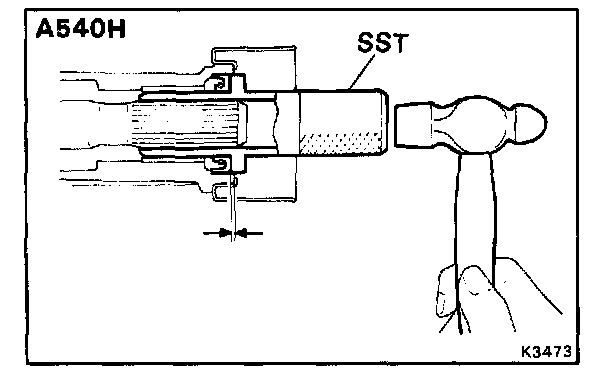

b. Using SST, drive in a new oil seal.
SST 09325-20010

5. INSTALL PROPELLER SHAFT
6. FILL TRANSFER OIL
