Operating Mechanism For Each Gear

1. Clutch Brake and One-Way Clutch




2. Solenoid System

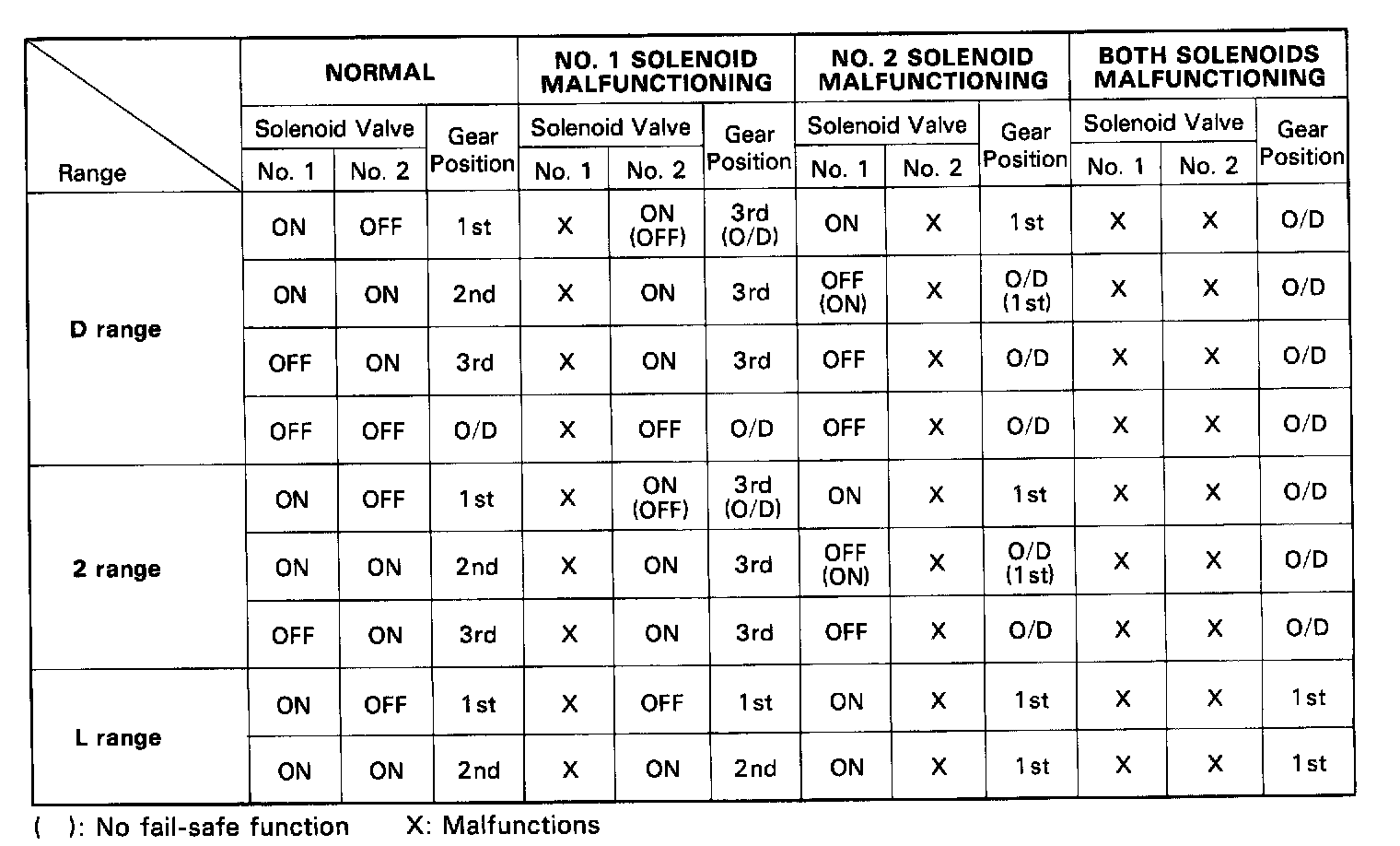

Possible gear positions in accordance with solenoid operating conditions.

NOTE: (A540H) When any one of the speed sensors (front or rear) or center differential control solenoid valves (No.1 or No.2) malfunction the ECT ECU stops center differential control and maintains the center differential in a free condition.
