Automatic Transmission/Transaxle: Application and ID

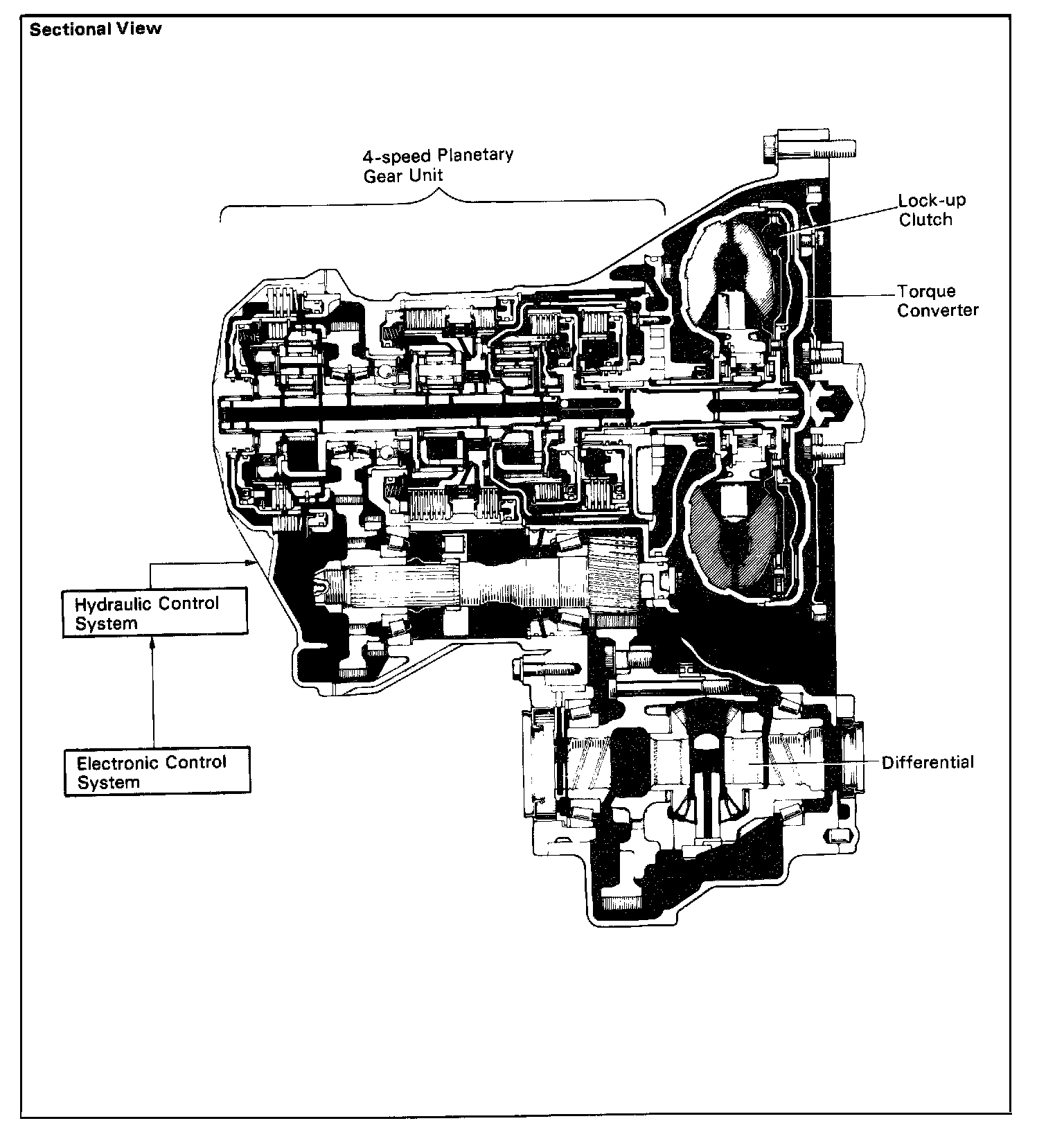

A540E



The A540E is a 4-speed, Electronic Controlled Transaxle (hereafter called ECT) developed exclusively for use with a transversely-mounted engine. A lock-up is built into the torque converter.
The A540E transaxle is mainly composed of the torque converter, the 4-speed planetary gear unit, the differential, the hydraulic control system and the electronic control system

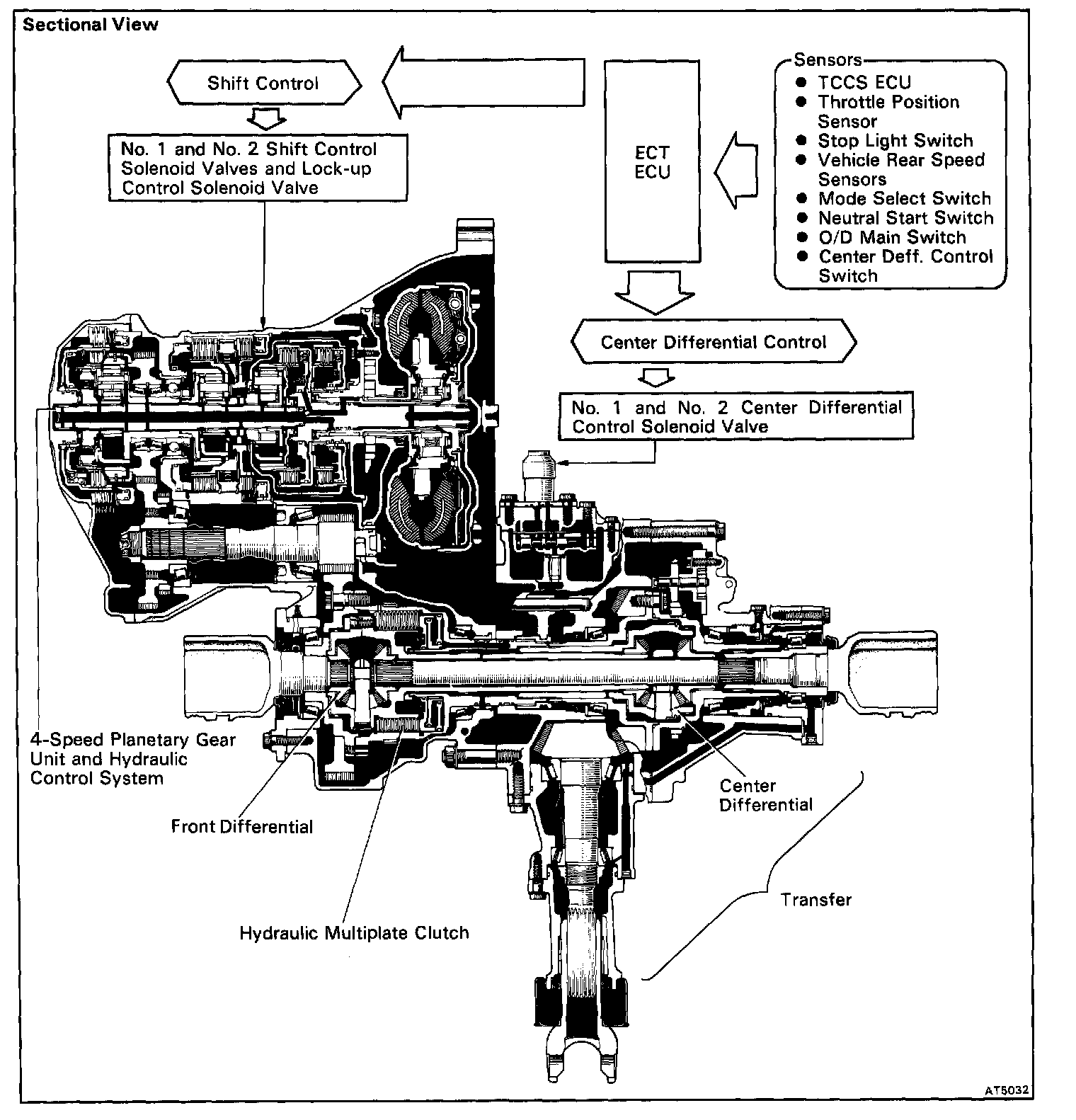

A540H



The A540H automatic transaxle design is based on the A540E automatic transaxle and equipped with a center differential and transfer.
