Tools - Special Service Tools

88toyota14

SPECIAL
REFERENCE SERVICE TOOLS
NUMBER 001
DATE 12-23-88
MODEL 1989 MODELS
TITLE 1989 NEW MODEL SPECIAL SERVICE TOOLS



ESSENTIAL TOOLS:

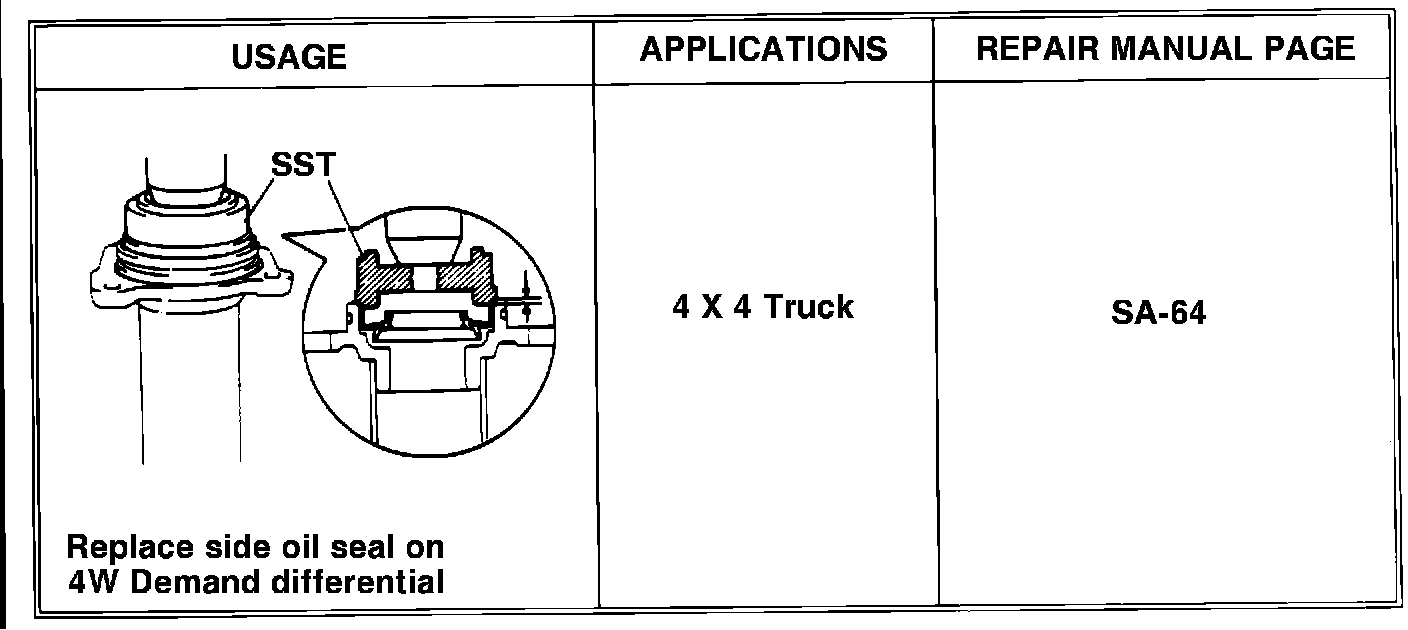

09554-14010-01 Oil Seal Replacer

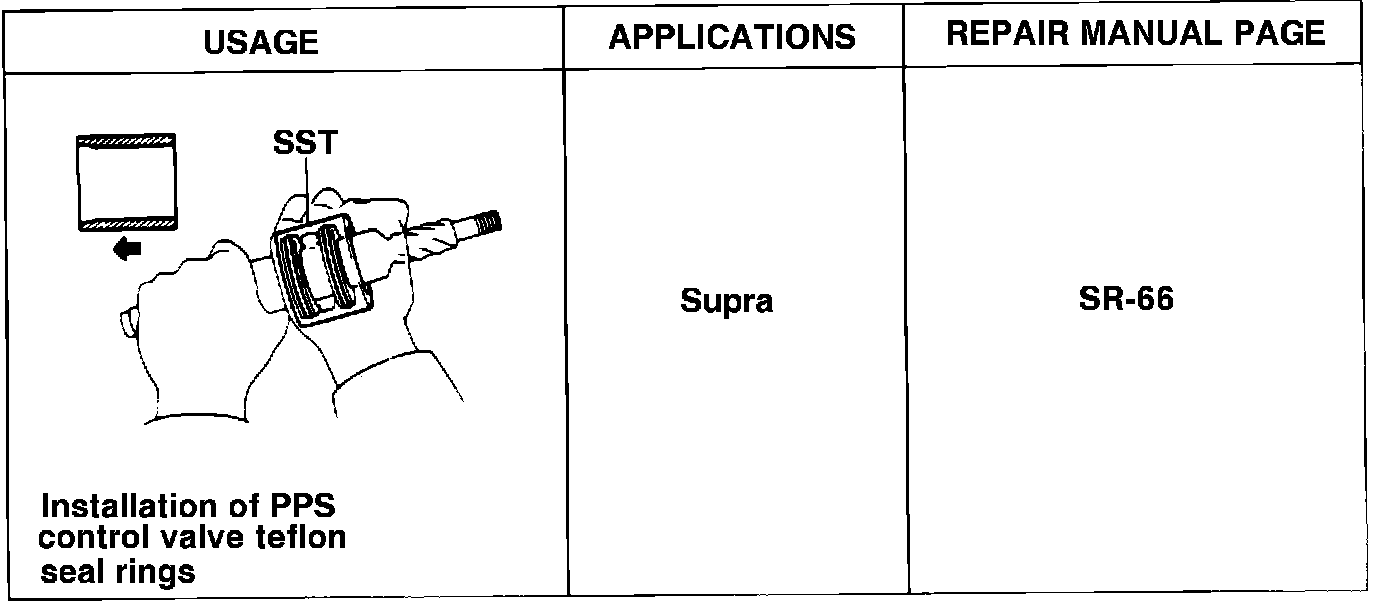

09631-32020-01 Seal Ring Tool



ESSENTIAL TOOLS:

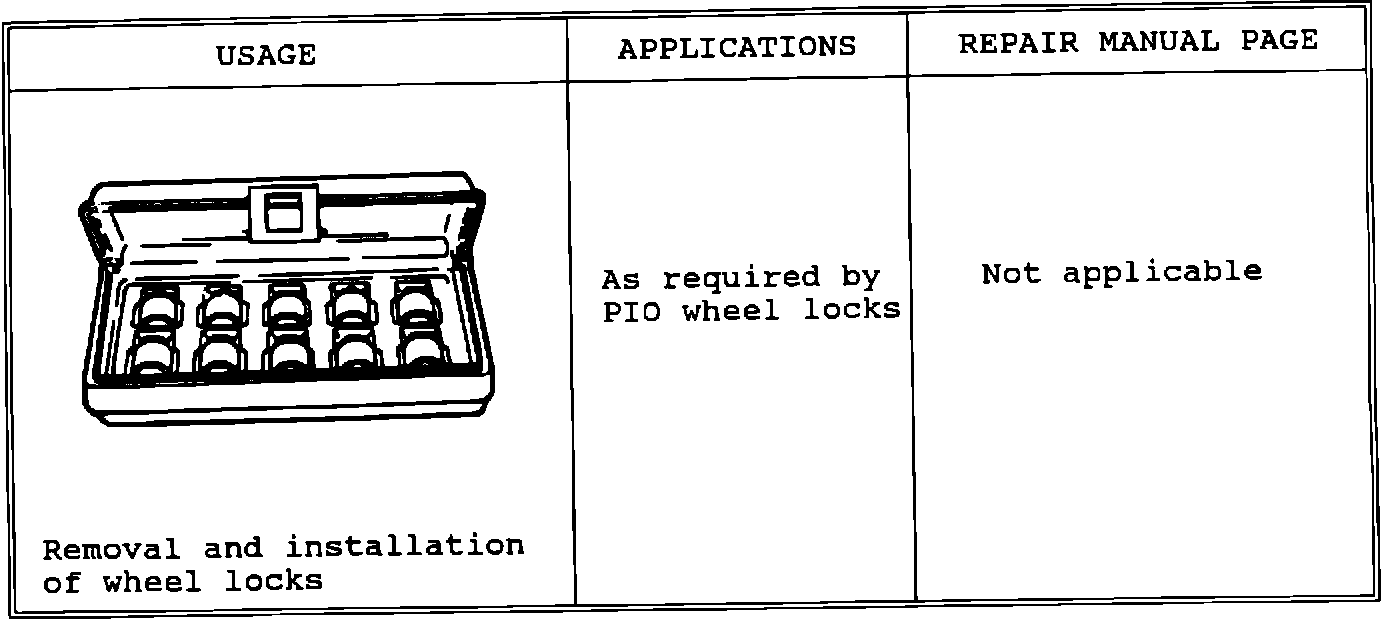

09999-00100 Wheel Lock Master Key Set

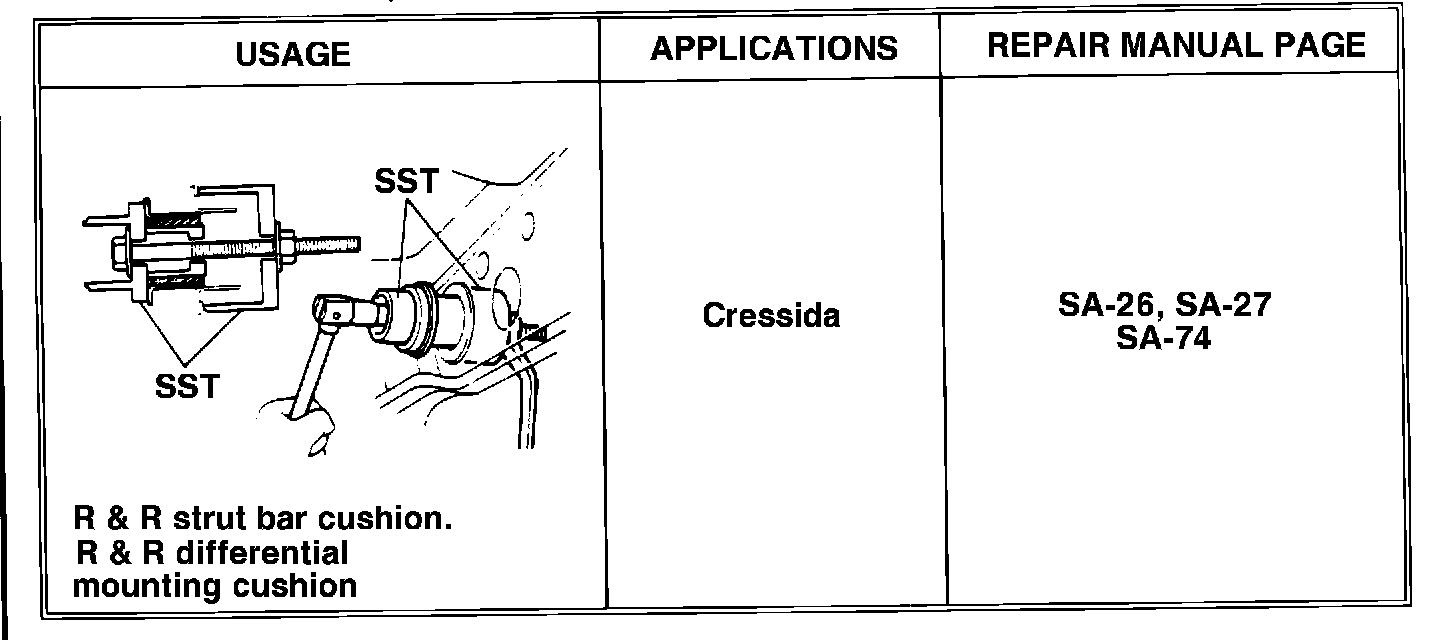

09570-22010-01 Differential Cushion Remover & Installer
(Available Early 1989)



ESSENTIAL TOOLS:

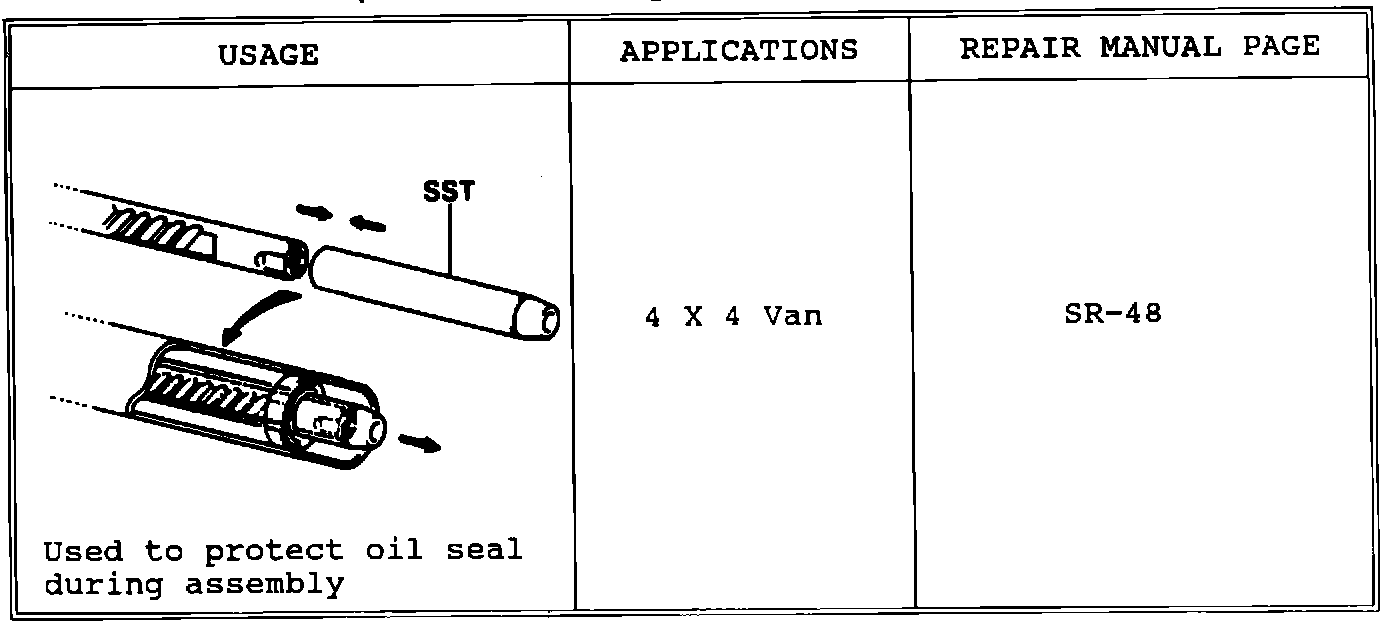

09631-20102 Steering Rack Cover
(Available Early 1989)

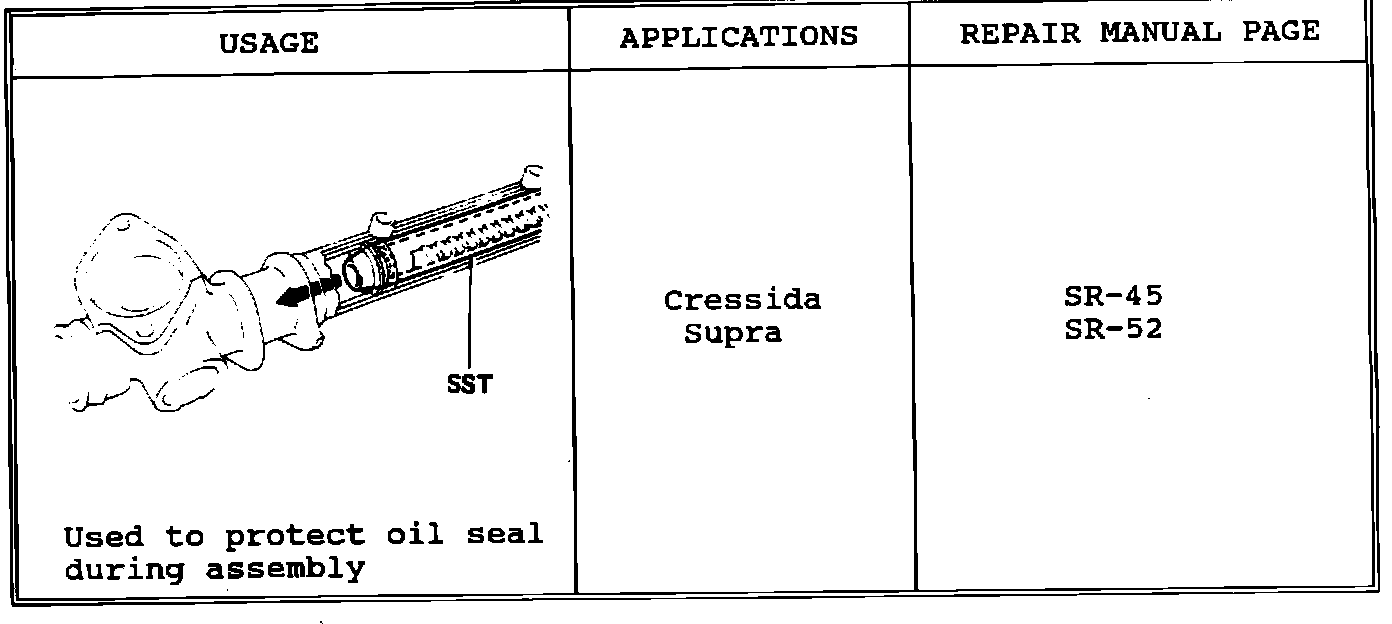

09631-20111 Steering Rack Cover
(Available Early 1989)



ESSENTIAL TOOLS:

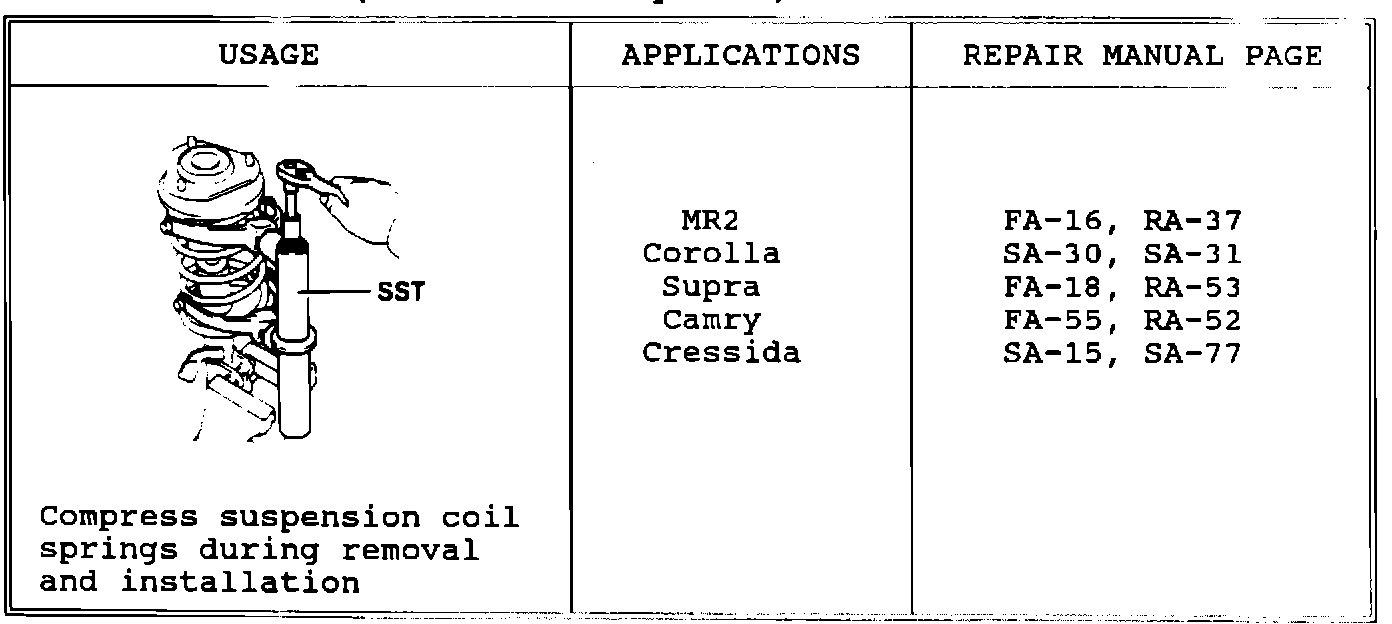

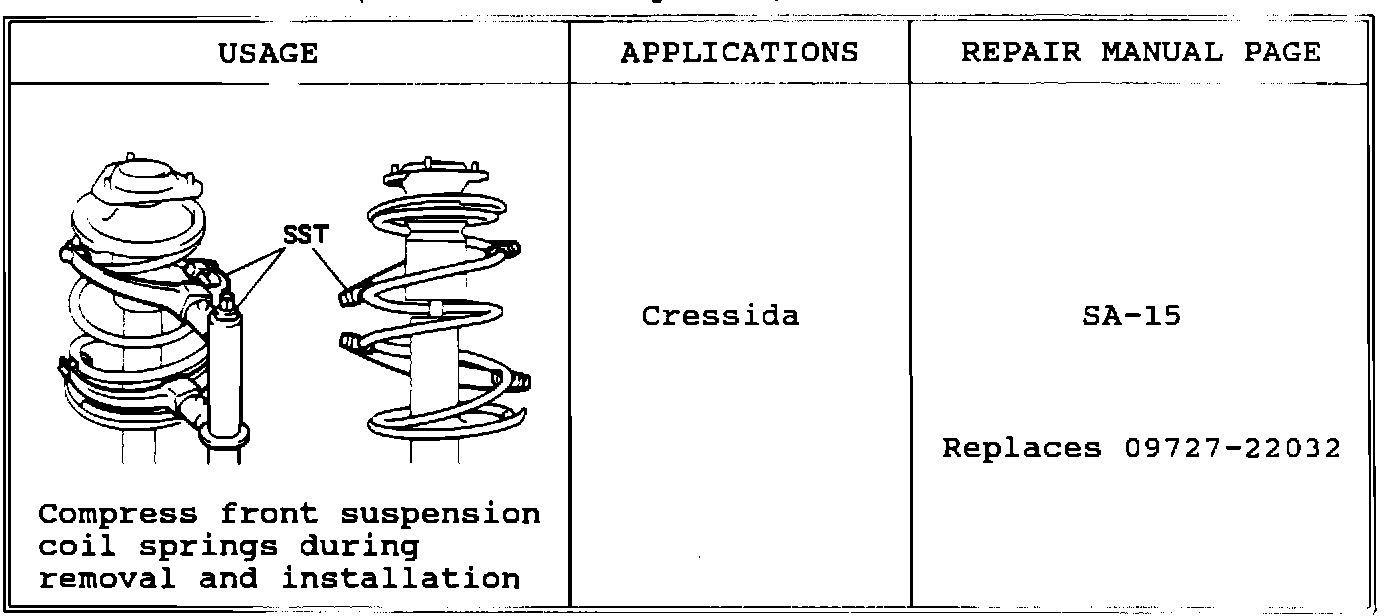

09727-00045 Front Coil Spring Compressor
Used with 09727-30020 (Available Early 1989)



09727-30020 Front Coil Spring Compressor
Replaces 90727-22032 (Available Early 1989)



AVAILABLE TOOLS:

09617-87010 Worm Bearing Adjusting screw Lock Nut Wrench
To be replaced by 09617-30030

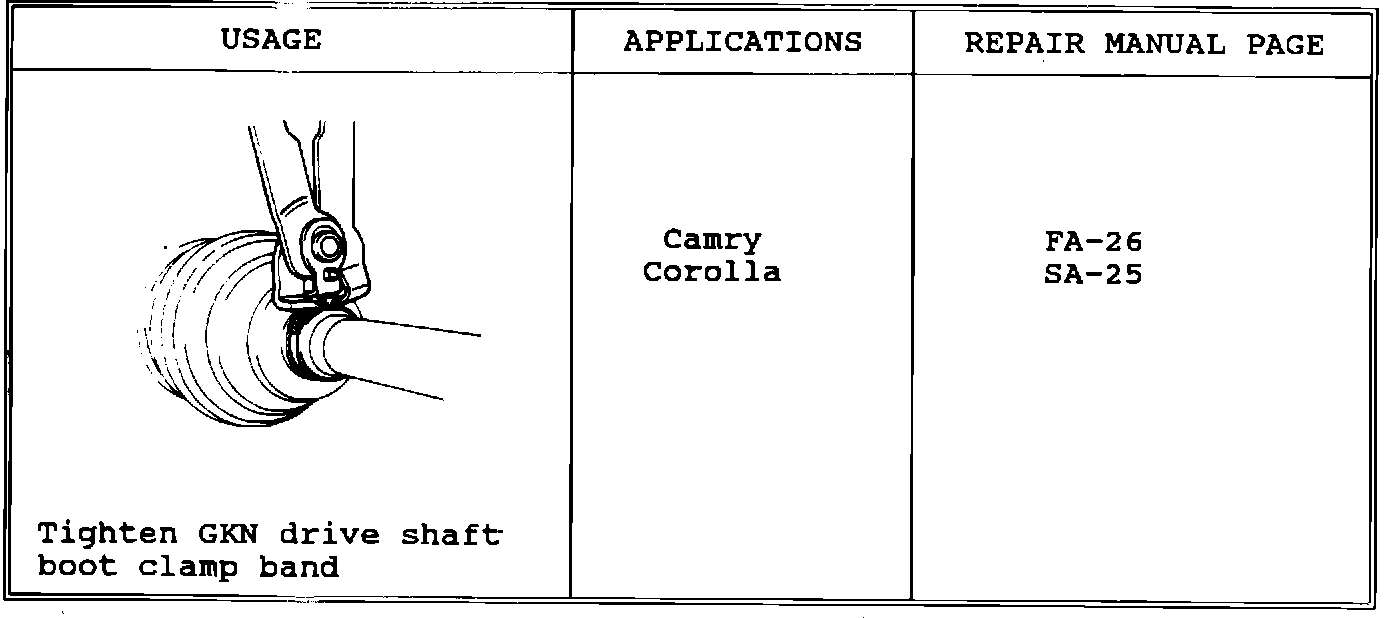

00002-35566-01 Clamp Band Tool



AVAILABLE TOOLS

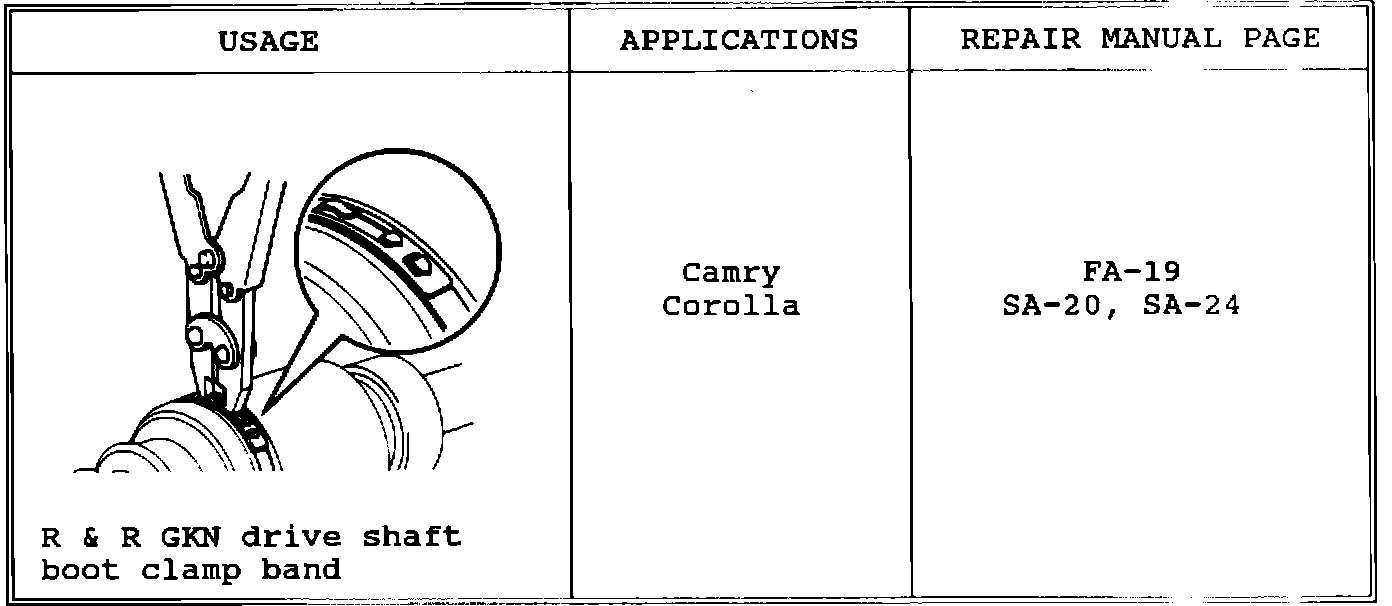

00002-22610-01 Clamp Band Tool



09814-30040-01 Antenna Nut Wrench
