With VZV Series Pump

REMOVAL AND INSTALLATION OF POWER STEERING PUMP (VZV Series)

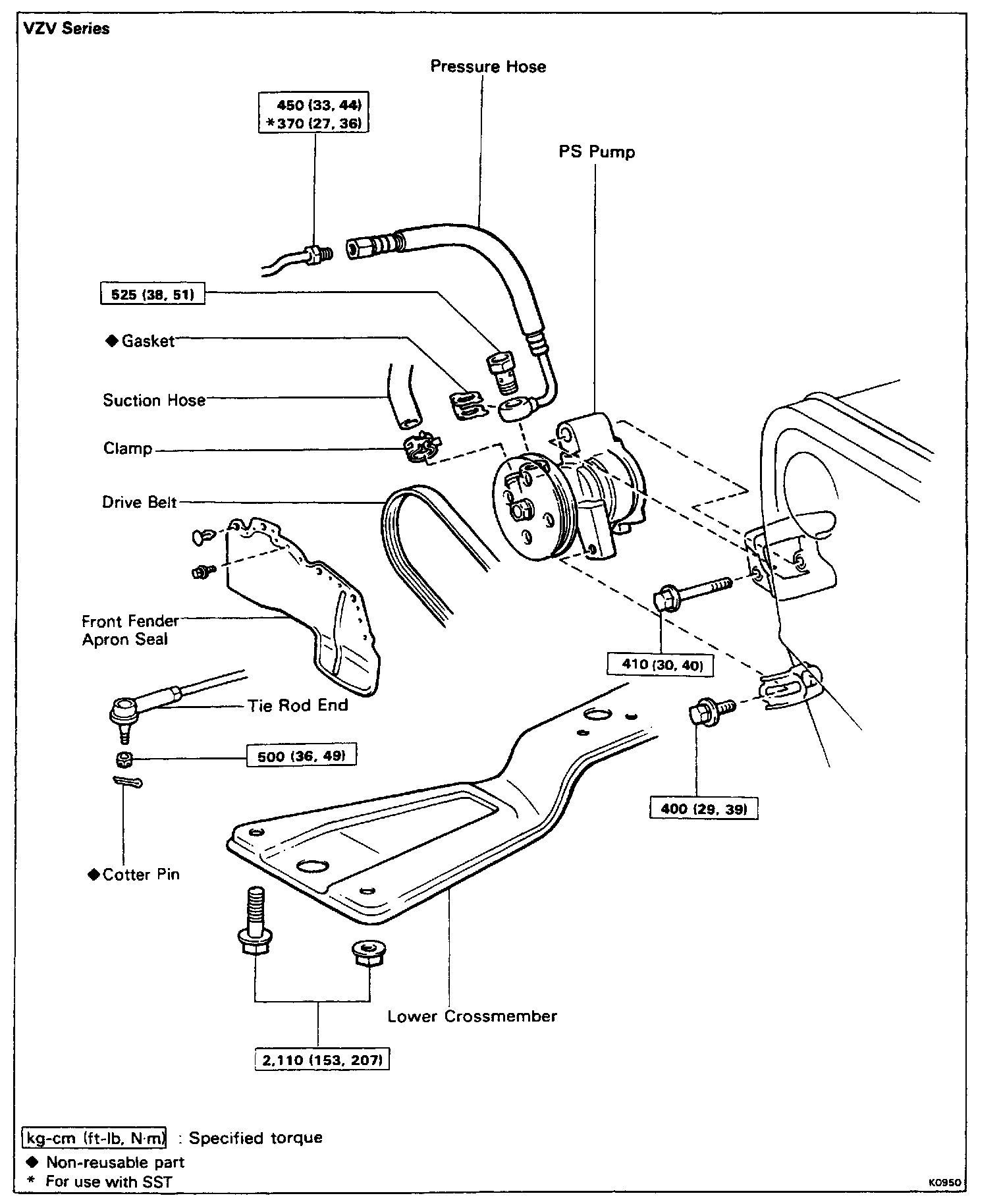

Remove and install the parts as shown.





(MAIN POINTS OF REMOVAL AND INSTALLATION)
1. DISCONNECT AND CONNECT PRESSURE LINE

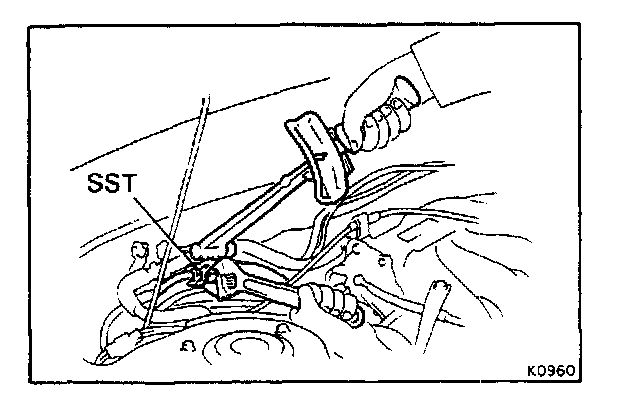

Using SST, disconnect and connect the pressure line. SST 09631-22020

HINT: When connecting, use a torque wrench with a fulcrum length of 340 mm (13.39 in.).





2. DISCONNECT TIE ROD END RH
(a) Remove the cotter pin and nut.

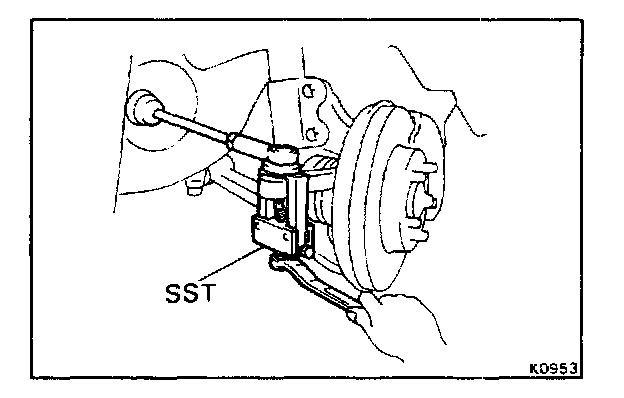

(b) Using SST, disconnect the tie rod end RH. SST 09628-62011





3. REMOVE DRIVE BELT

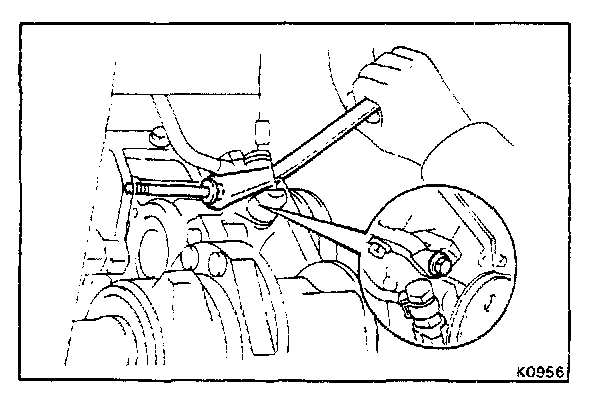

(a) Loosen the adjusting bolt.





(b) Loosen the through bolt and push the PS pump forward.
(c) Remove the drive belt.

4. REMOVE PS PUMP WITH PRESSURE TUBE

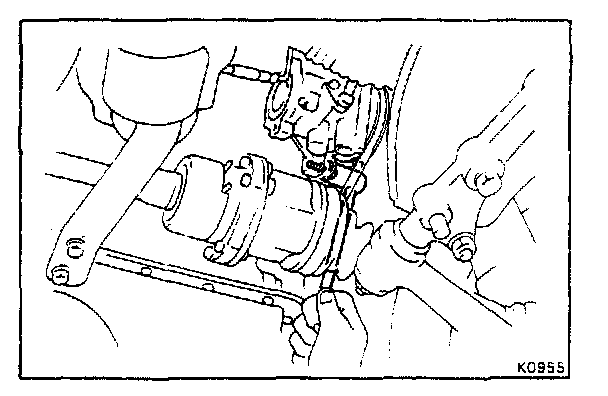

Remove the adjusting bolt and through bolt, then remove PS pump from the lower side of vehicle body.

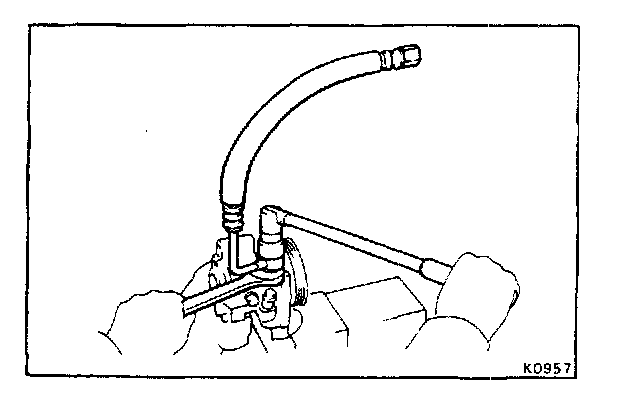

5. REMOVE PRESSURE TUBE
