With SV21 Series Pump
With SV21 Series Pump
REMOVAL AND INSTALLATION OF
POWER STEERING PUMP
(SV21 Series)

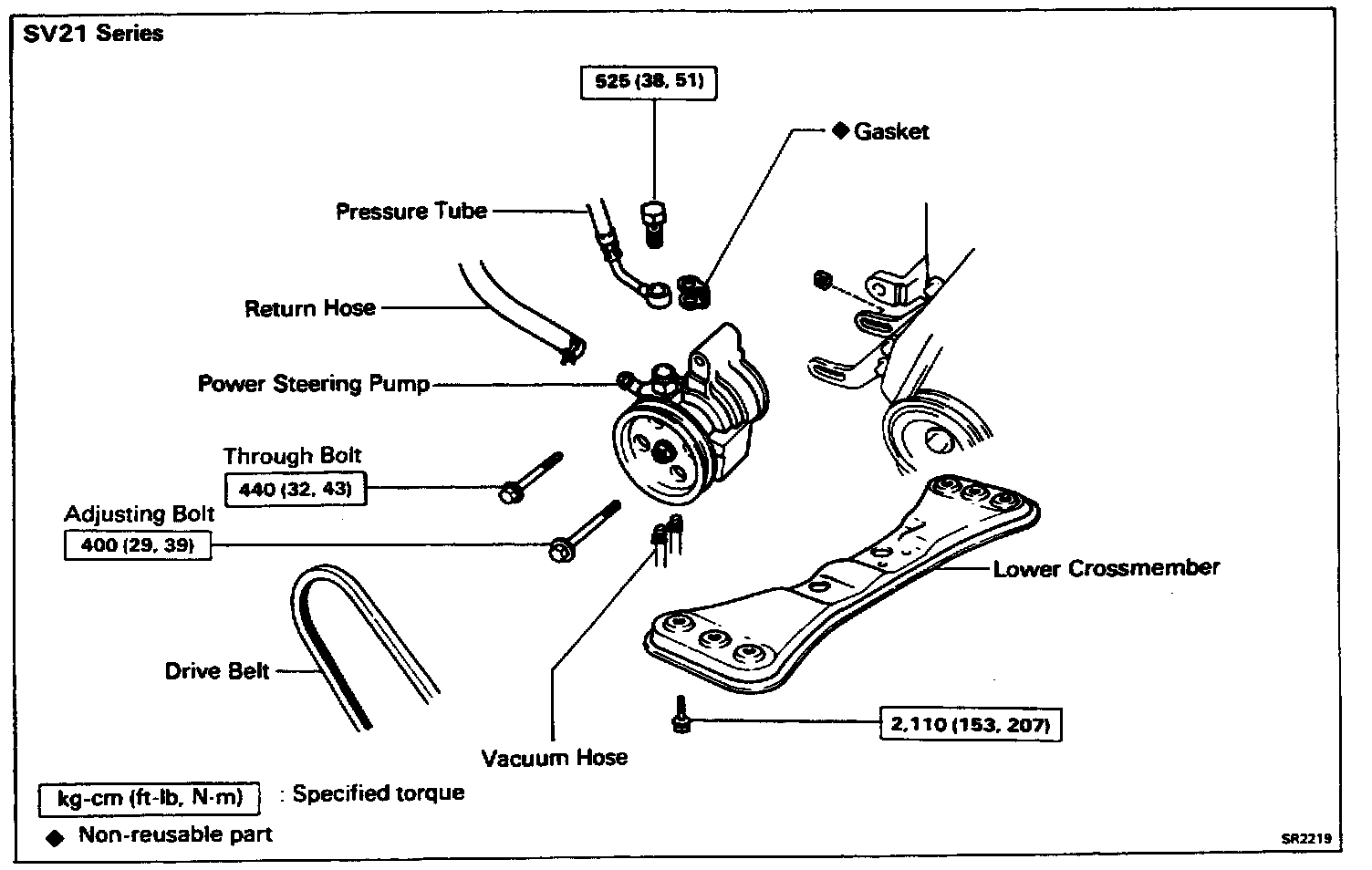

Remove and install the parts as shown.
(MAIN POINT OF INSTALLATION)
ADJUST DRIVE BELT TENSION AFTER INSTALLING PS PUMP
