Starting and Ignition Systems Circuit Diagram
Starting and Ignition Systems Circuit Diagram

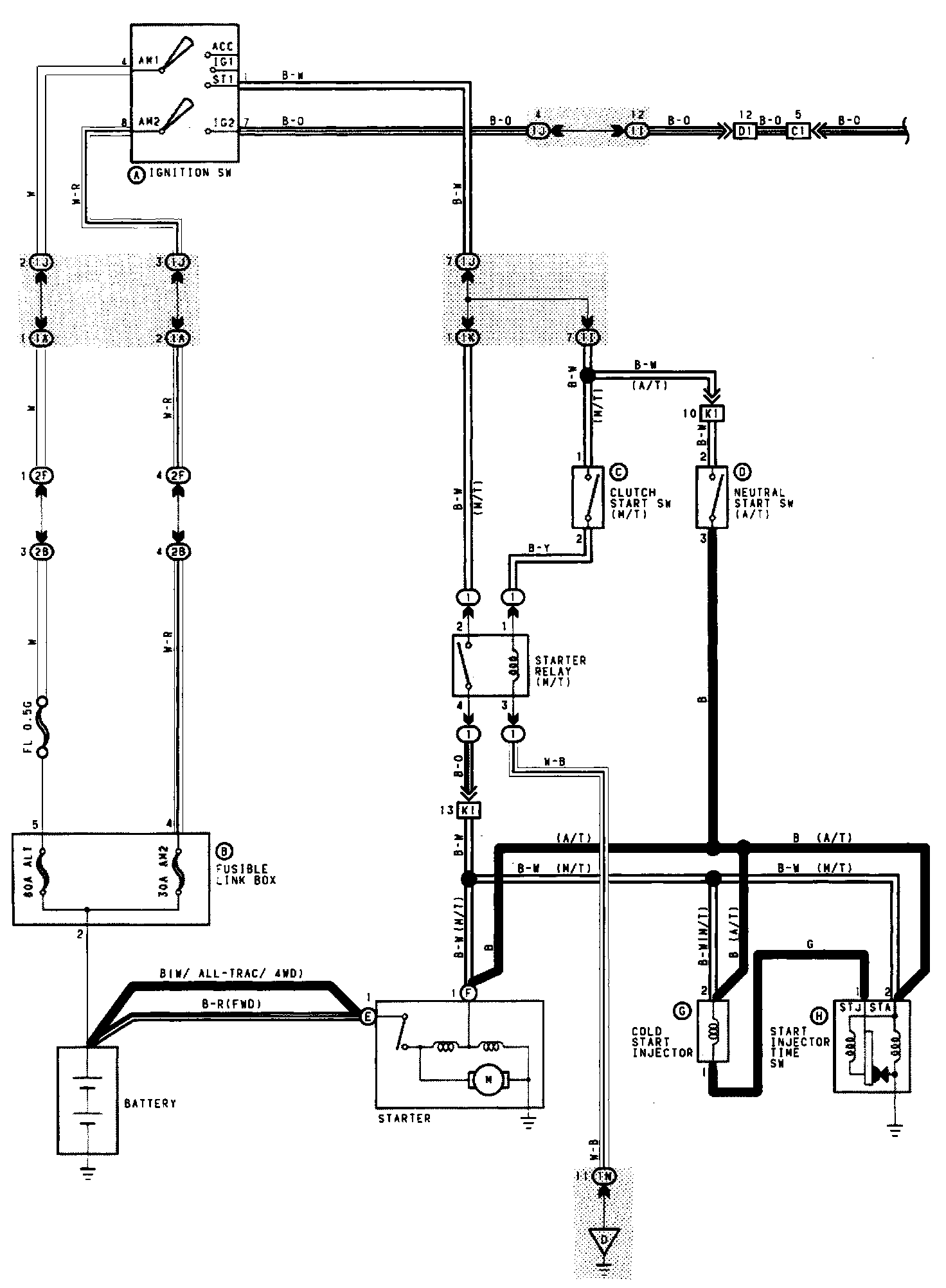

STARTING AND IGNITION SYSTEMS - Part 1 Of 2:

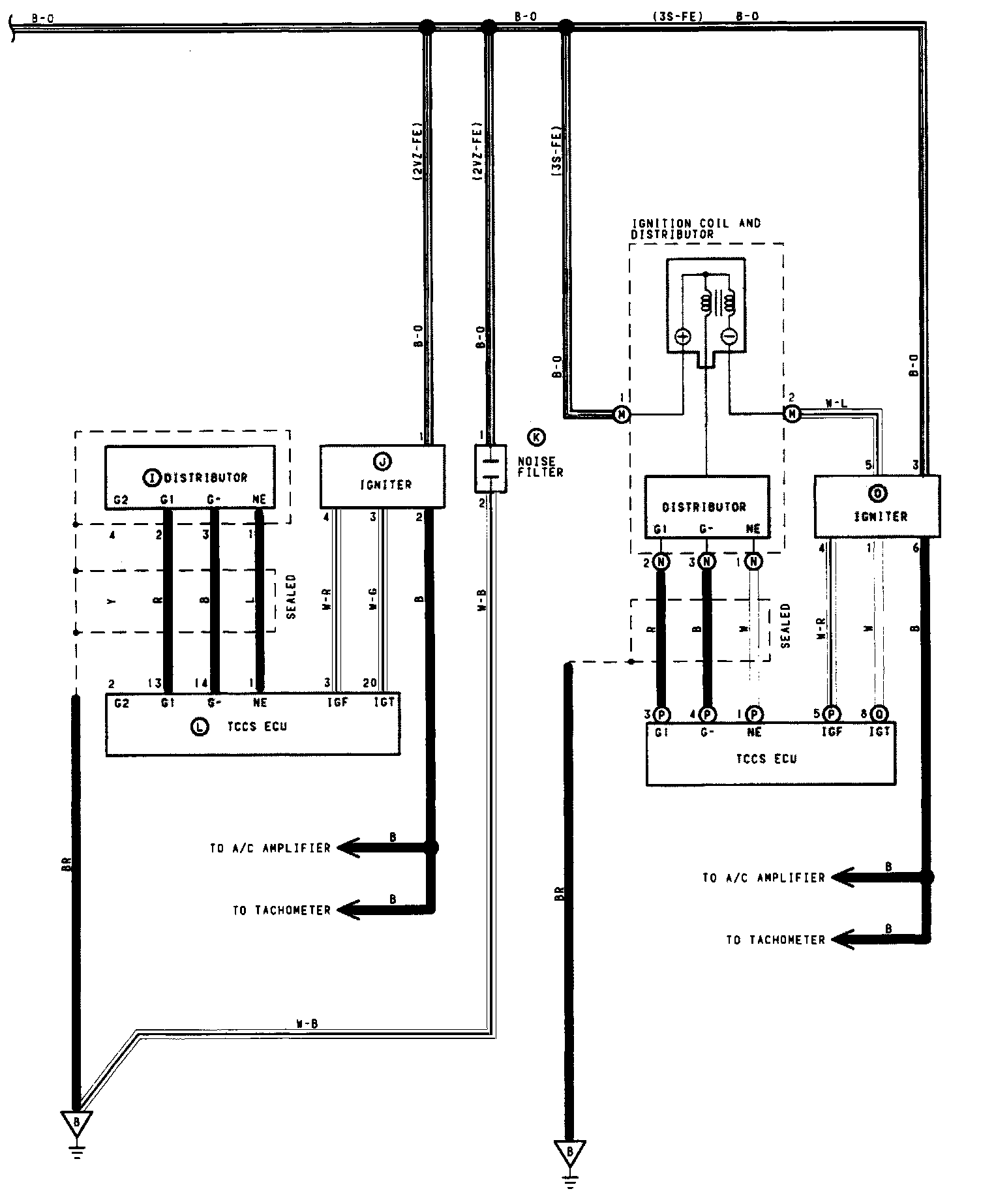

STARTING AND IGNITION SYSTEMS - Part 2 Of 2:
