Power and Ground Distribution: Locations

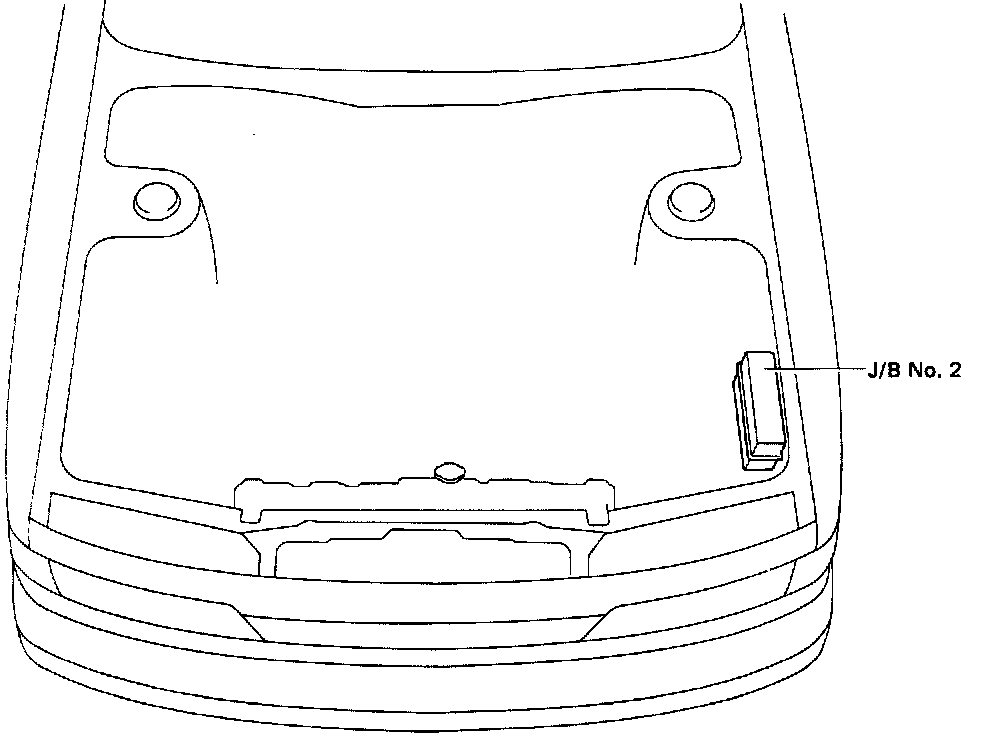

J/B No.2 Location:

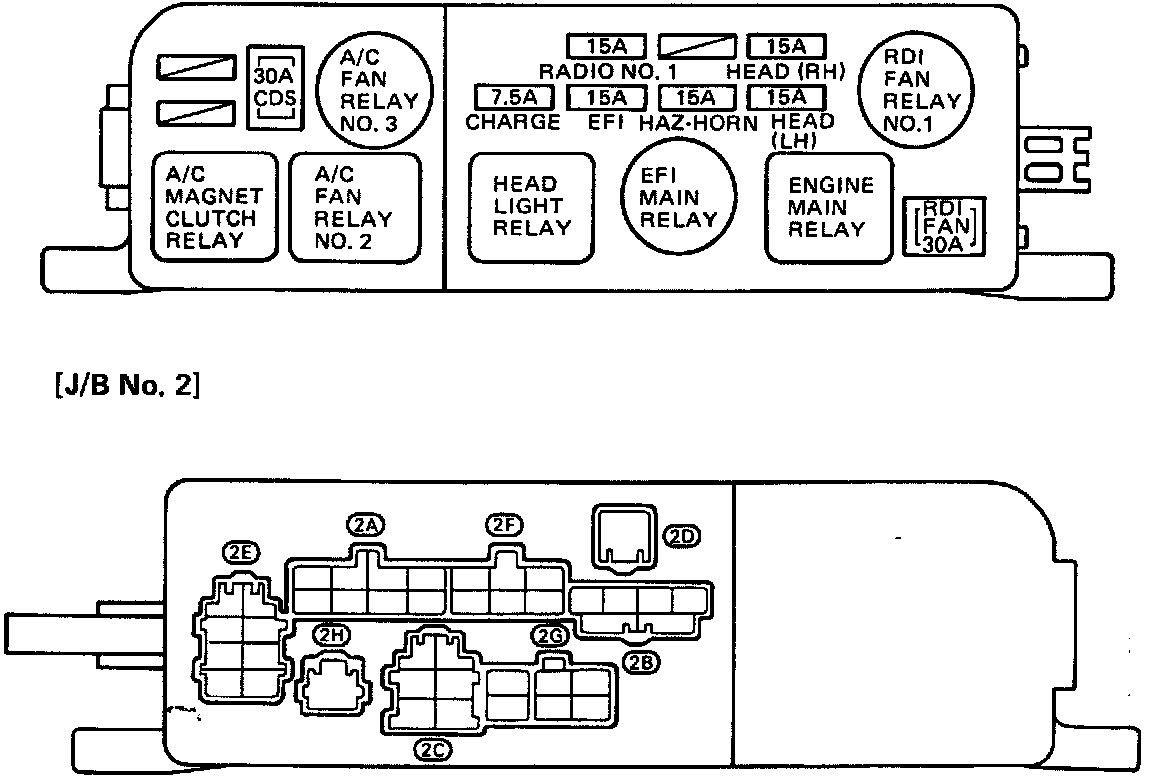

J/B No.2 Fuses And Connectors:

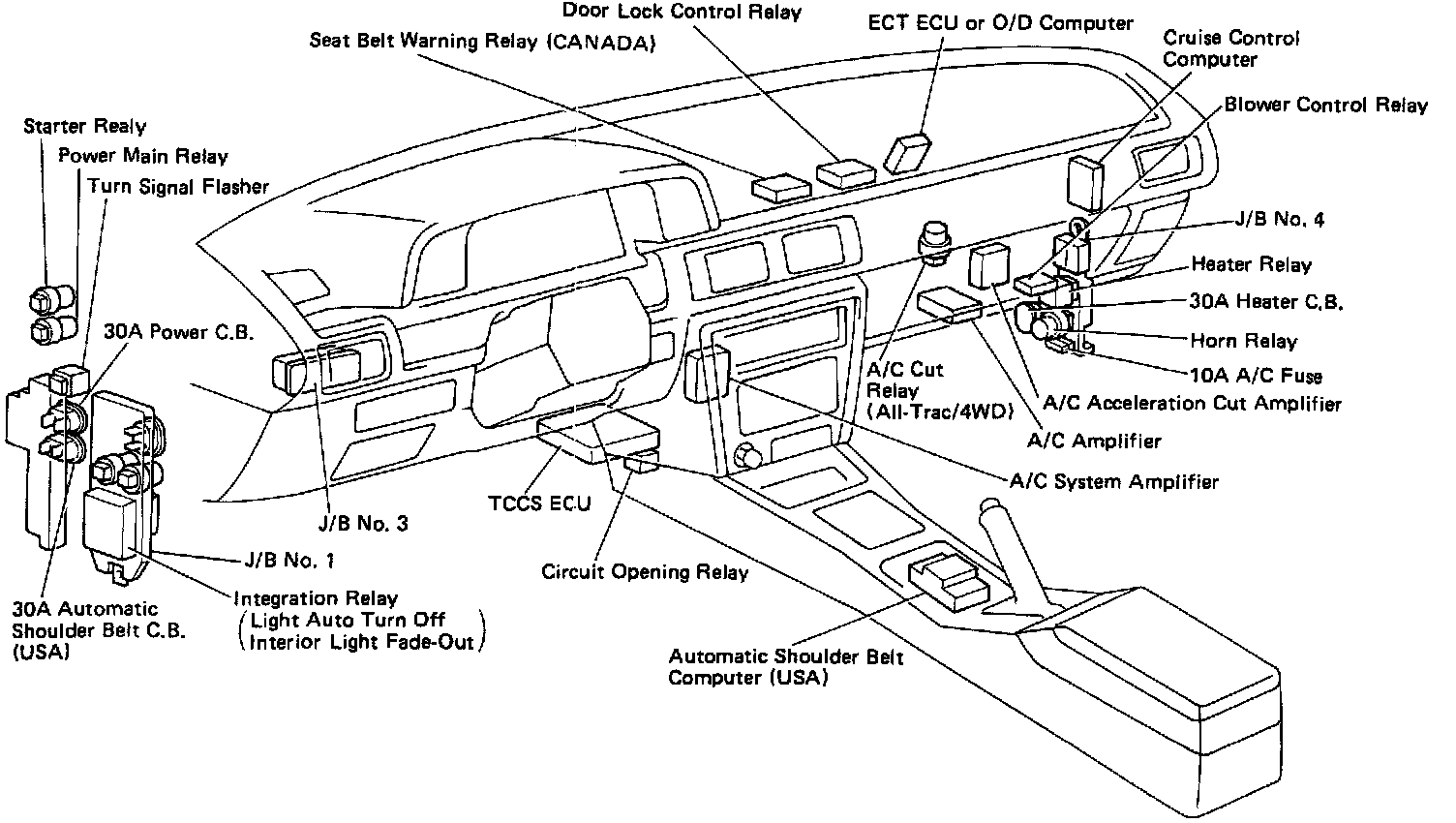

Interior Electrical Component Locations:

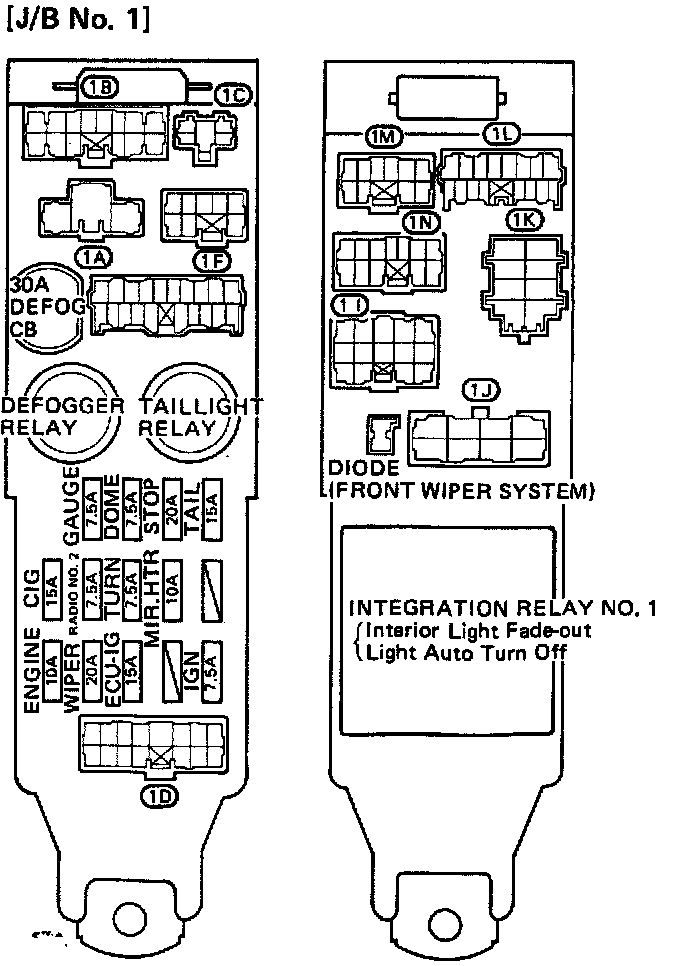

J/B No.1 Fuses And Connectors:

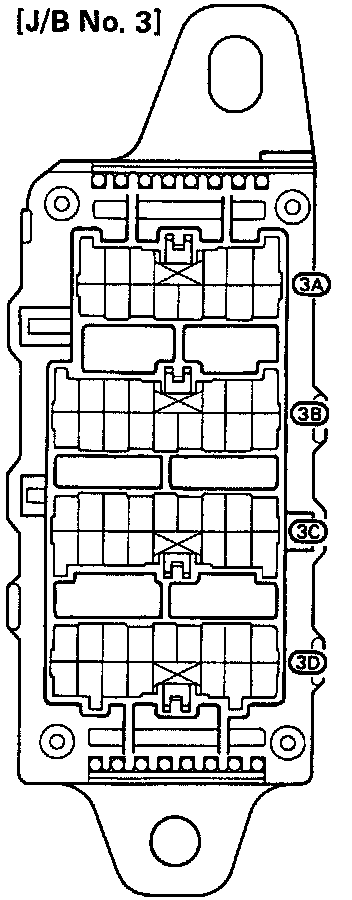

J/B No.3 Connectors:

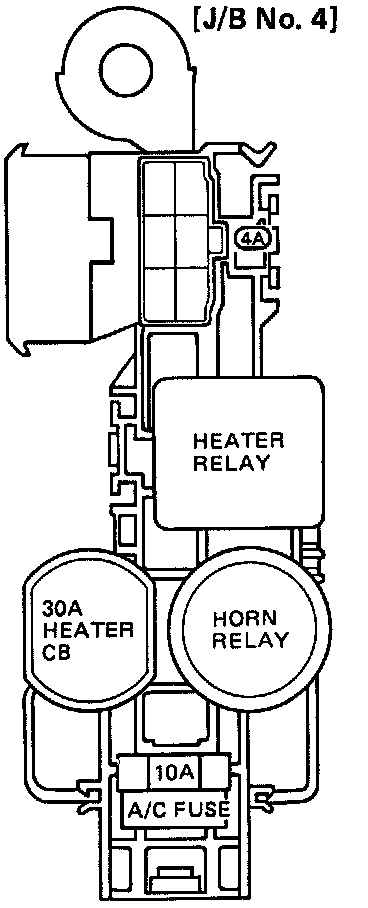

J/B No.4 Fuses And Relays:
