Power and Ground Distribution: Application and ID

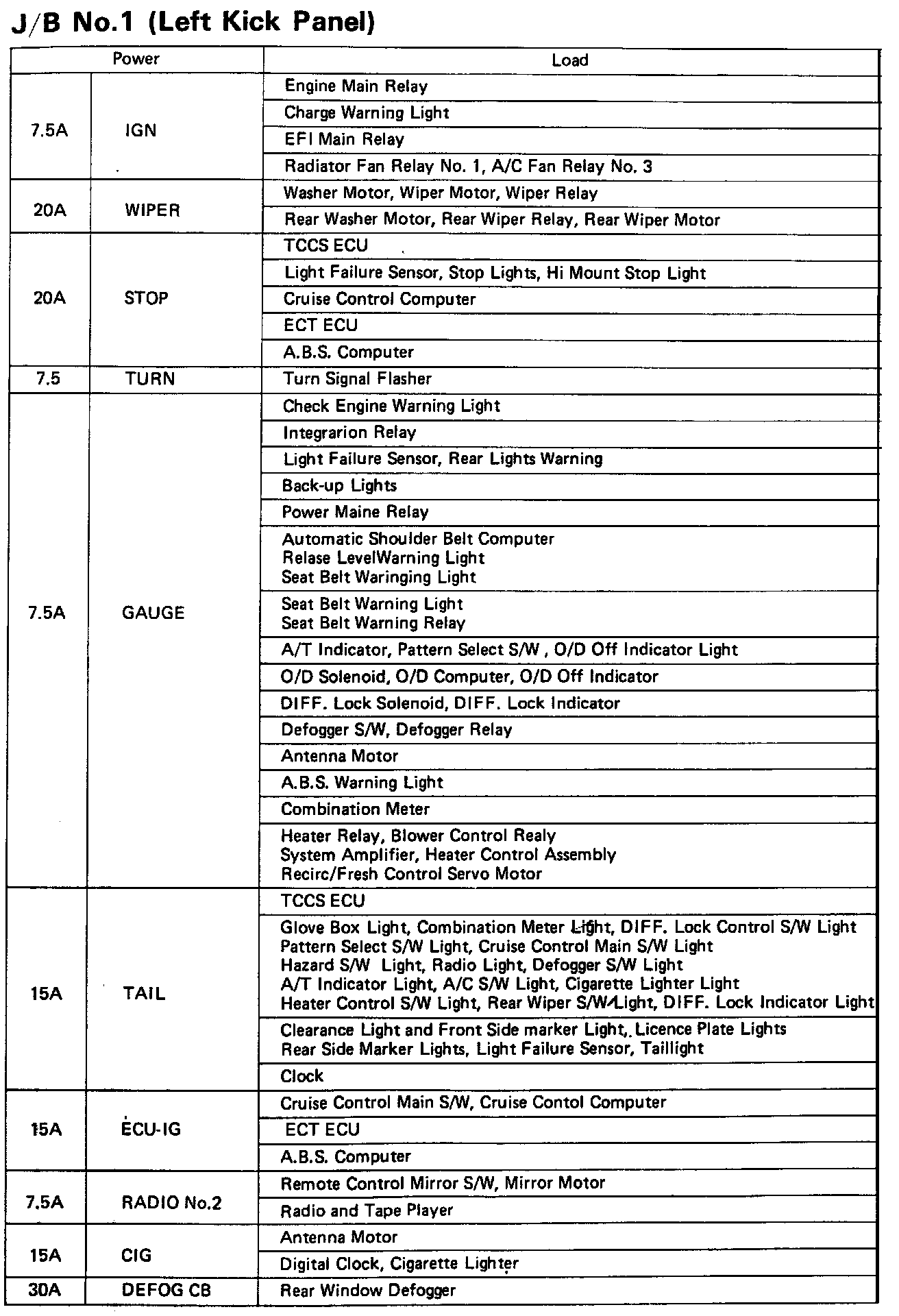

J/B No.1 Fuse Loads (Part 1 Of 2):

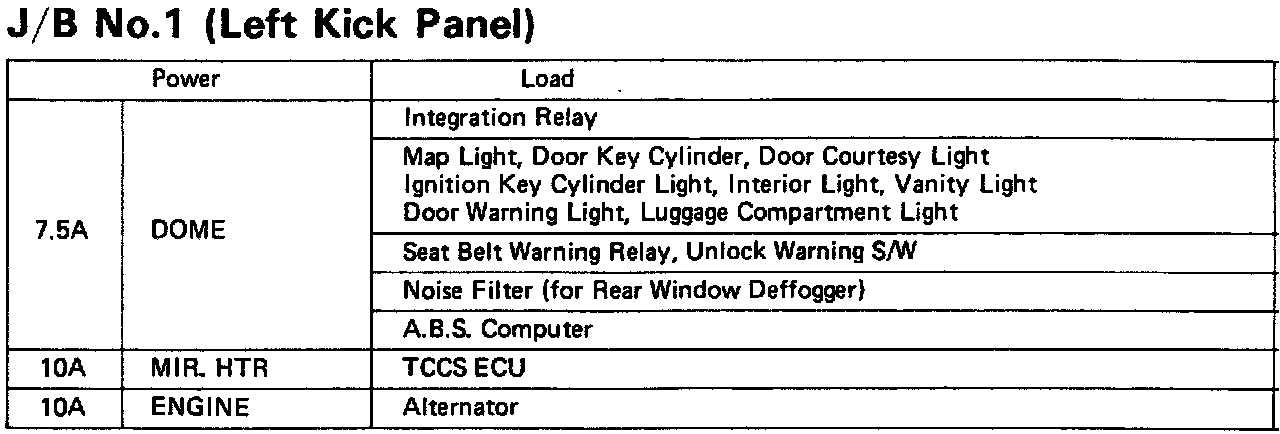

J/B No.1 Fuse Loads (Part 2 Of 2):

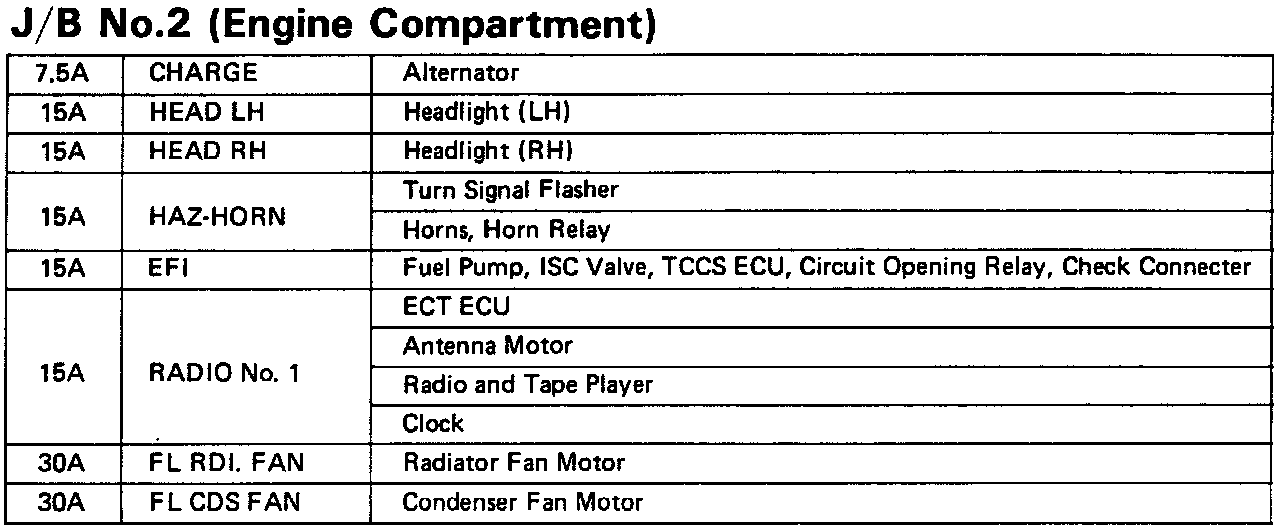

J/B No.2 Fuse Loads:

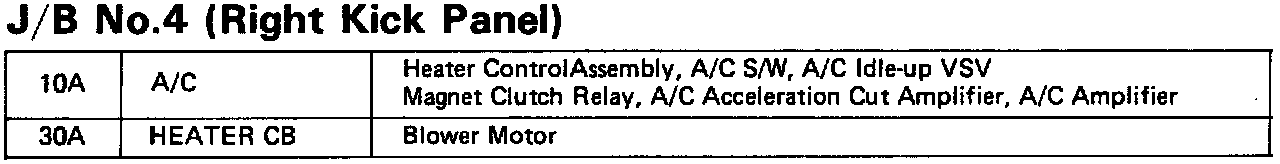

J/B No.4 Fuse Loads:

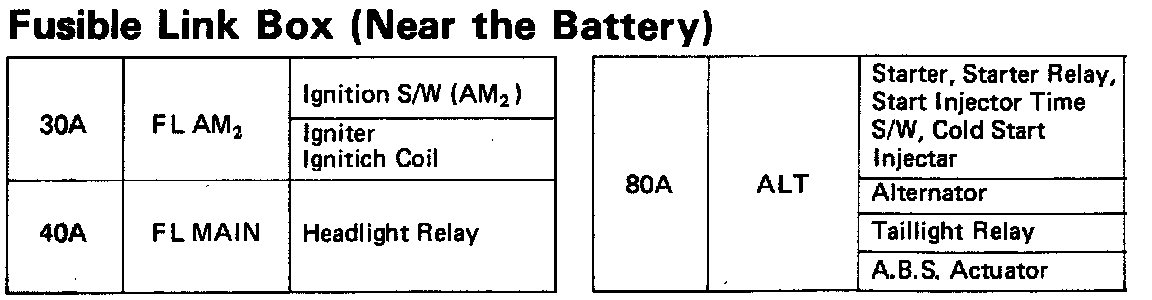

Fusible Link Box Fuse Loads:

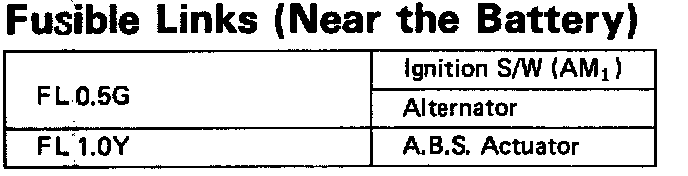

Fusible Links Loads:

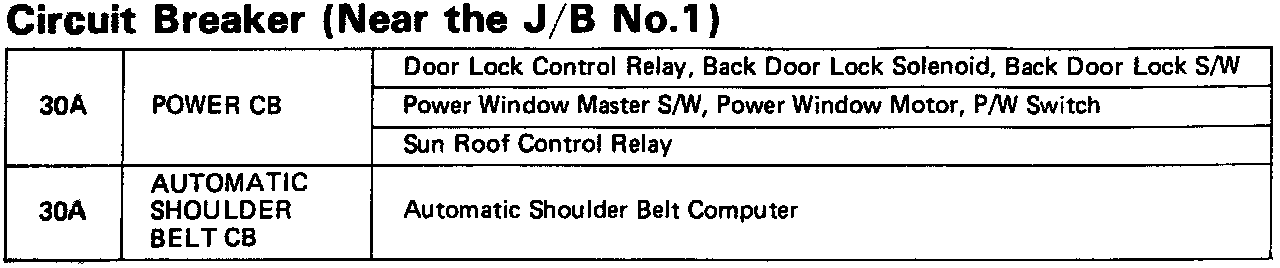

Circuit Breaker Loads:
