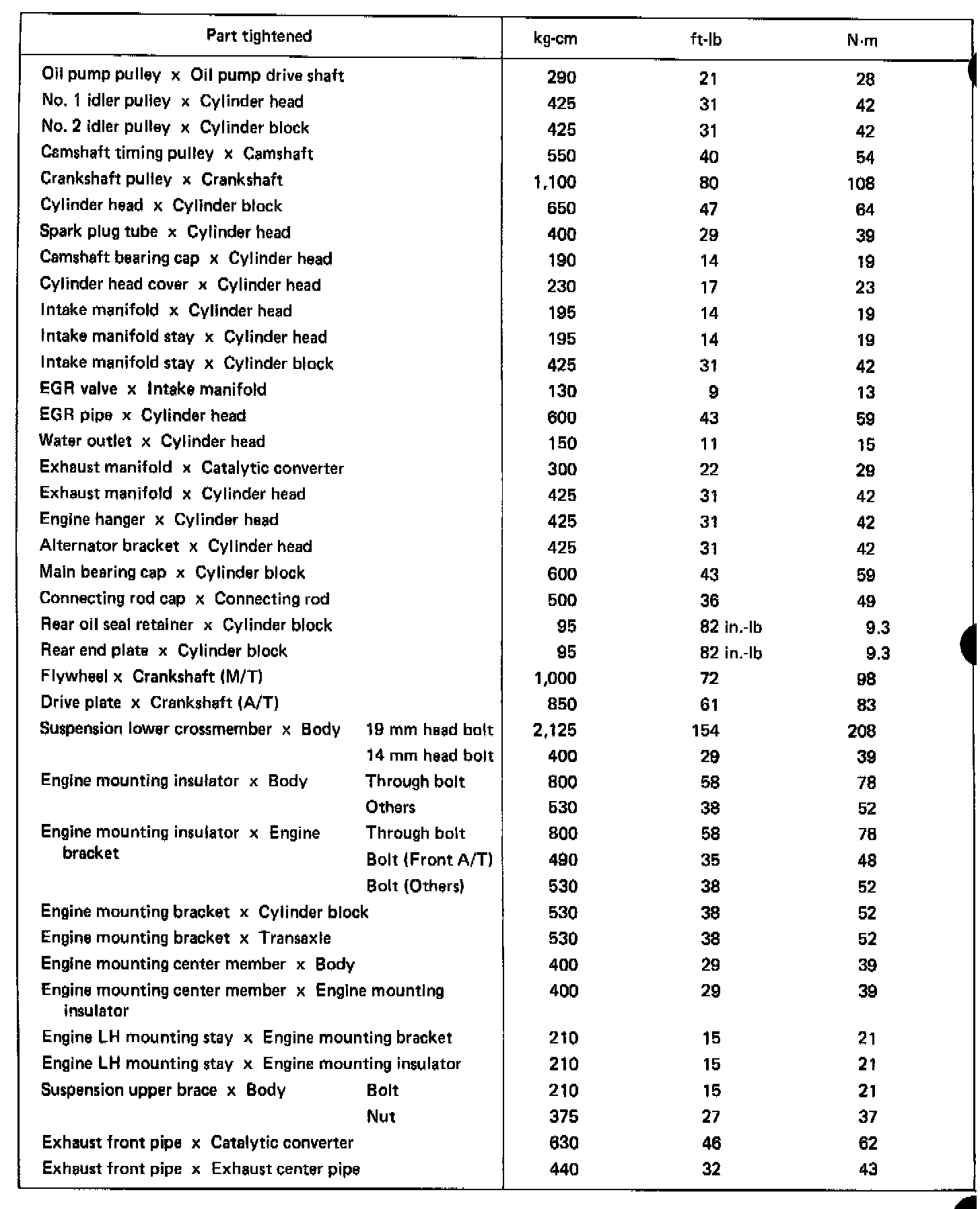

Torque Specifications

Torque Specifications

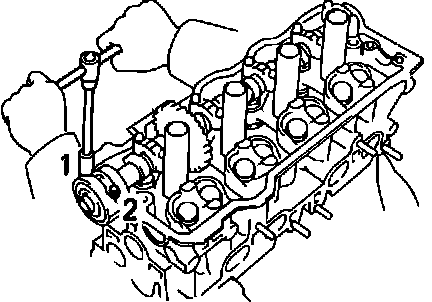

Fig. 1 Exhaust Camshaft Bearing Cap Bolts 1 & 2 Removal. 3S-FE:

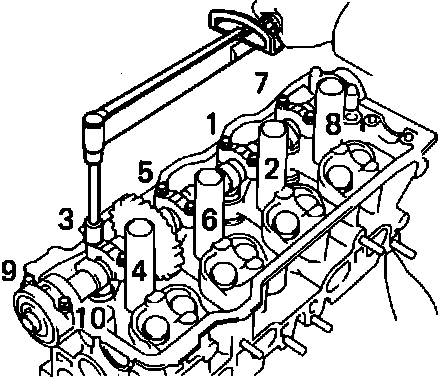

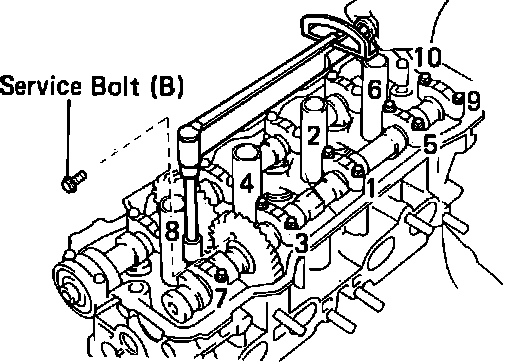

Fig. 2 Exhaust Camshaft Bearing Cap Bolt 3 Through 8 Removal. 3S-FE:

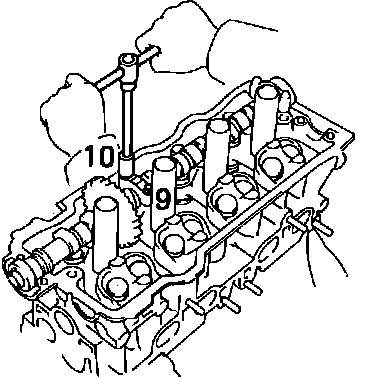

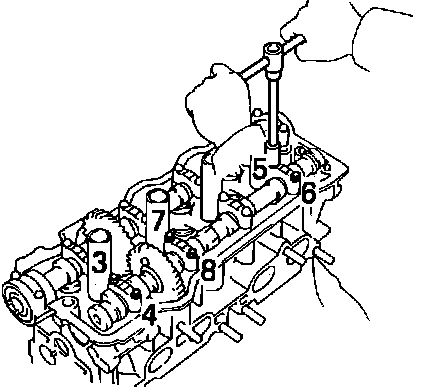

Fig. 3 Exhaust Camshaft Bearing Cap Bolt 9 & 10 Removal. 3S-FE:

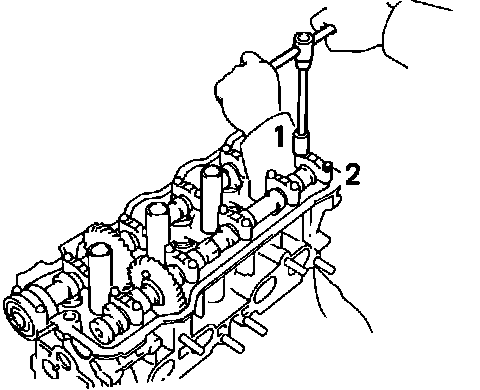

Fig. 4 Intake Camshaft Bearing Cap Bolt 1 & 2 Removal. 3S-FE:

Fig. 5 Intake Camshaft Bearing Cap Bolt 3 Through 8 Removal. 3S-FE:

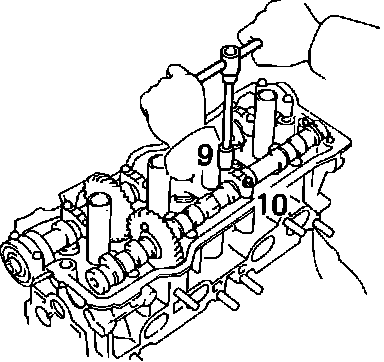

Fig. 6 Intake Camshaft Bearing Cap Bolt 9 & 10 Removal. 3S-FE:

Camshaft Bearing Cap Removal Sequence

Fig. 9 Intake Camshaft Bearing Cap Bolt Tightening Sequence. 3S-FE:

Fig. 11 Exhaust Camshaft Bearing Cap Bolt Tightening Sequence. 3S-FE:

Camshaft Bearing Cap Torque Sequence

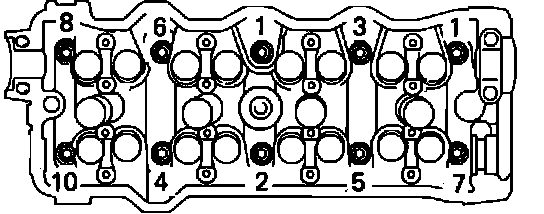

Fig. 8 Cylinder Head Bolt Tightening Sequence. 3S-FE:

Cylinder Head Torque Sequence

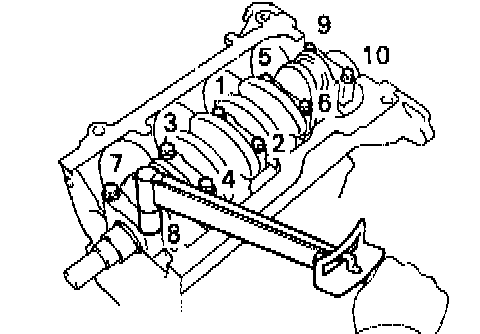

Crankshaft Main Bearing Cap Torque Sequence

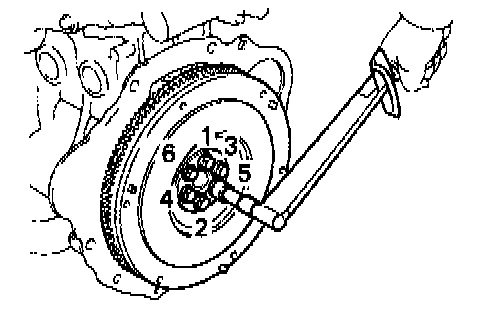

M/T Flywheel - A/T Drive Torque Sequence
