Neutral Safety Switch: Testing and Inspection
Neutral Start Switch Check:
1.

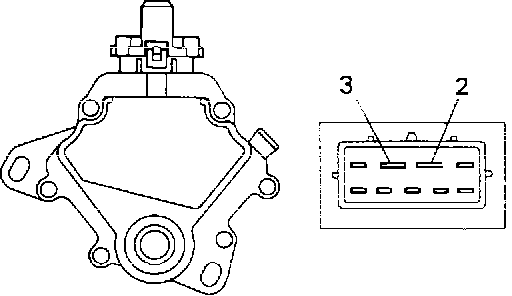

Check that there is continuity between terminals 2 and 3 with switch positioned in "P" and "N" ranges.
2.
If not as specified, replace switch.
