Door Switch: Testing and Inspection

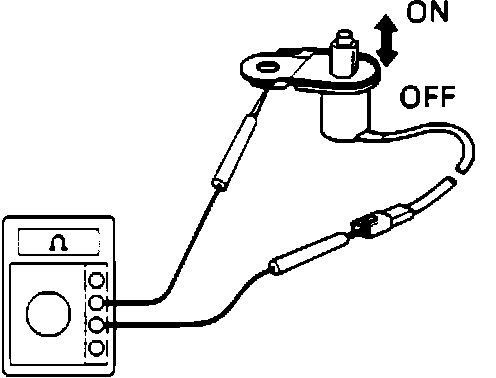

Door Courtesy Switch:

1. Disconnect connector to drivers side courtesy switch.

2. Using an ohmmeter, ensure continuity between terminal and body ground, with door open.

3. Ensure no continuity between terminal and body ground, with door closed.

4. If continuity is not as described, replace door courtesy switch.
