Blower Motor Switch: Testing and Inspection

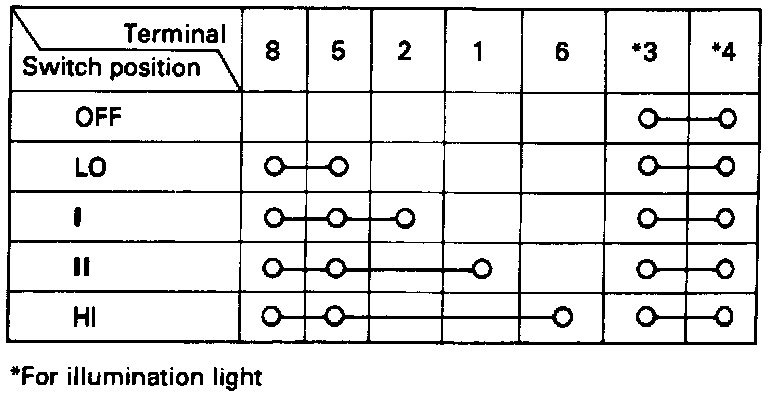

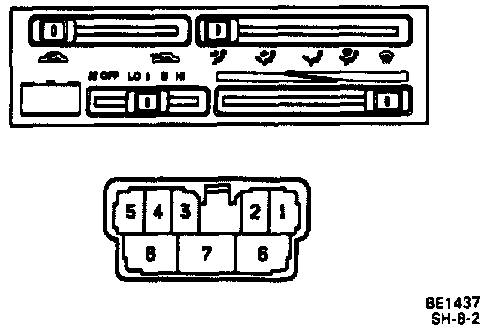

Inspect the heater blower switch continuity.
If continuity is not as specified, replace the switch.
