Seat Belt Motor: Testing and Inspection

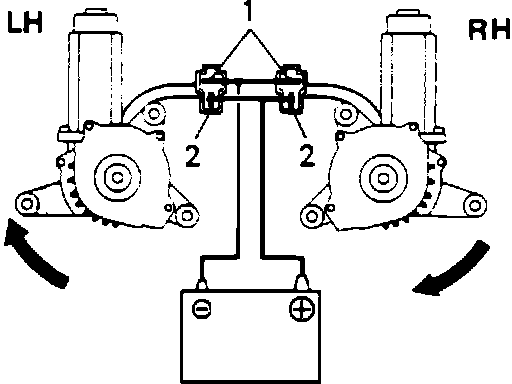

Automatic Shoulder Belt Motor:

1. Connect battery positive to terminal #1. Connect battery negative to terminal #2.

2. Ensure motor rotation is as shown.

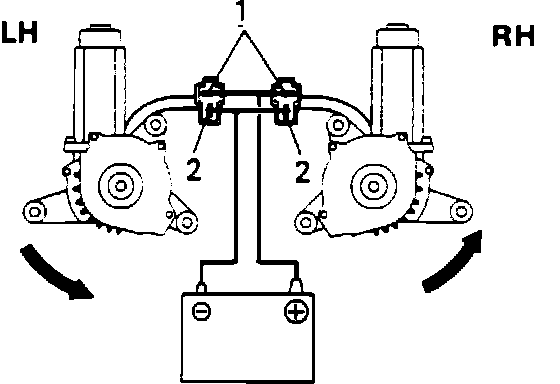

Automatic Shoulder Belt Motor:

3. Connect battery positive to terminal #2. Connect battery negative to terminal #1.

4. Ensure motor rotation is as shown.

5. If not as specified, replace motor.
