Shift Interlock Control Module: Testing and Inspection

INSPECT SHIFT LOCK CONTROL COMPUTER

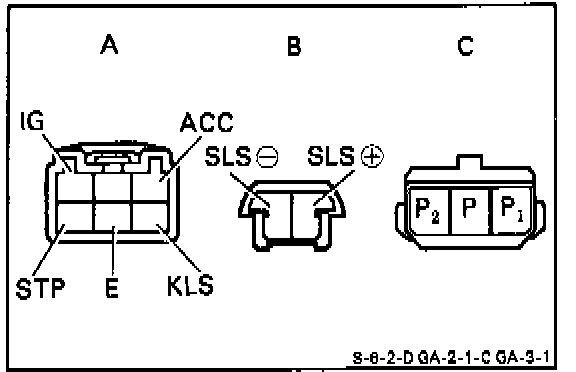

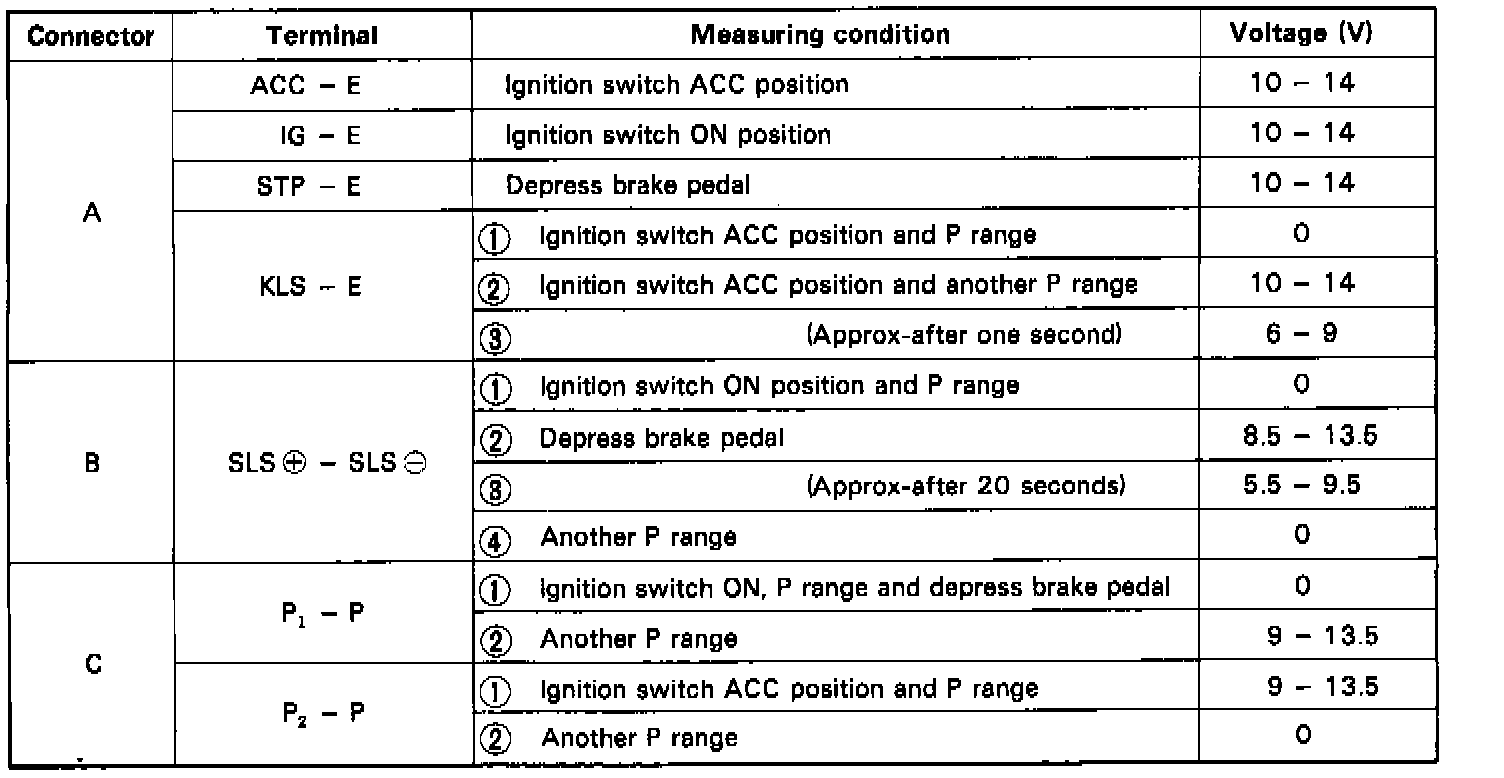

Using a voltmeter, measure the voltage at each terminals.

NOTE: Do not disconnect the computer connector.
