Compressor Control Amplifier

Compressor Control Amplifier Inspection:

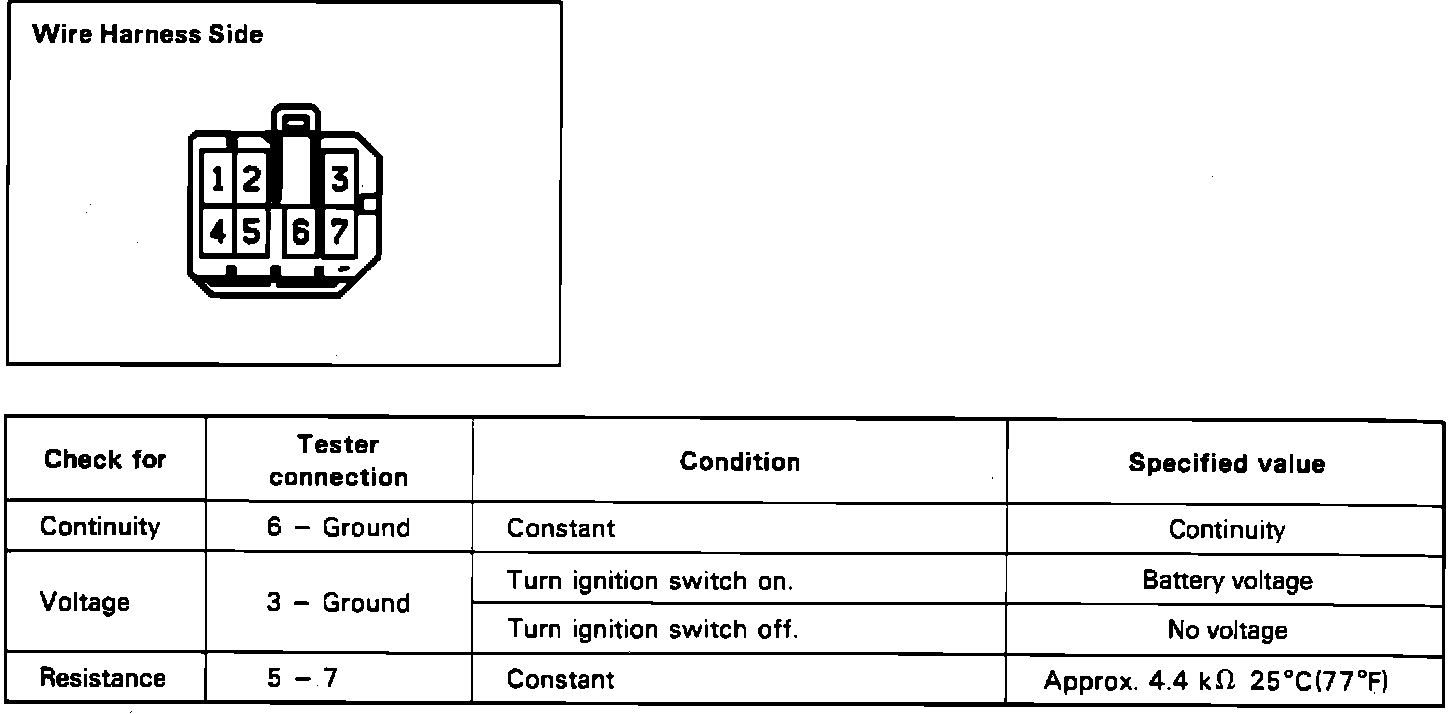

1. Disconnect amplifier and check connector on wire harness side as shown on image chart.
2. If circuit is as specified, replace amplifier.
